Motive AI Dashcam Plus combines the functionality of a Vehicle Gateway and an AI Dashcam into a single all-in-one device. It has two visible LED lights. Each LED shows a different type of device information, including connectivity, recording, privacy mode, firmware updates, and safety alerts.
Identifying the AIDC+ LEDs
Unlike the standard Vehicle Gateway with a left and right LED pair, the AI Dashcam Plus has two LEDs in different physical locations on the device:

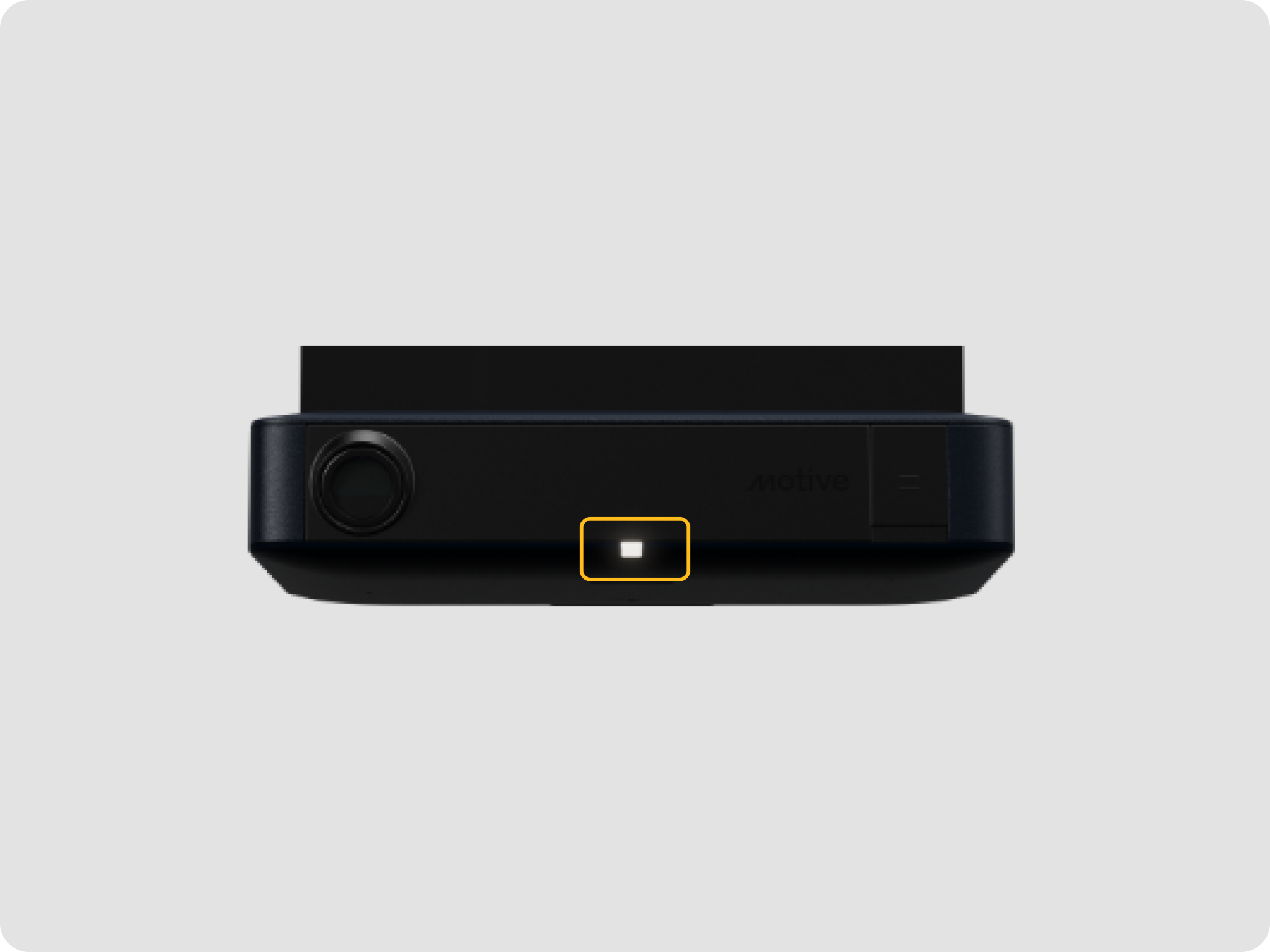

- Connectivity LED: Located at the bottom center of the device, this smaller LED light communicates device startup, Driver App pairing status, GPS/LTE signal, and hardware health.

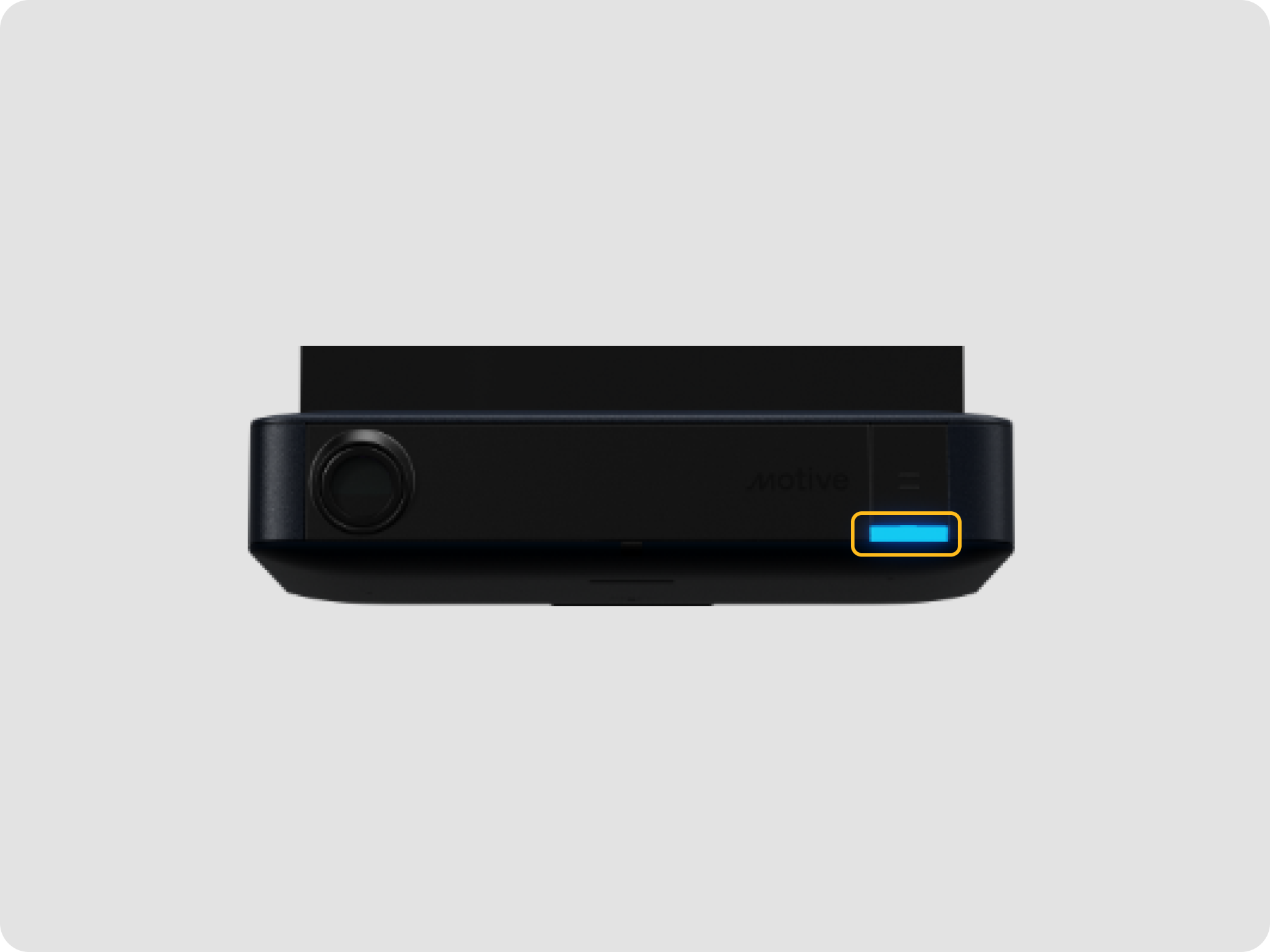

- Alerts LED: Located below the physical button on the device, the alerts LED communicates recording status, privacy mode, live stream or Quick Capture activity, and unsafe driving behaviors.
These two LEDs work independently. Read each LED on its own, then combine them to understand the overall state of the device. Use the tables below to look up what your AIDC+ LED lights mean.
AI Dashcam Plus Connectivity LED states
| LED state | Meaning | What to do |
| Off | The device is working normally if the Alerts LED is lit. If both LEDs are off, the device may be powered off. | If both LEDs are off, check the vehicle adapter, cable connections, and vehicle power. |
| Blinking red | The driver is not connected or has not been identified. | Open the Motive Driver App and connect to the vehicle. The AI Dashcam Plus appears in the vehicle list, not in the phone’s system Bluetooth device list. |
| Solid yellow | The device does not have a GPS or cellular signal. | Move the vehicle to an area with better reception and allow the device time to reconnect. |
| Solid purple | The device has a hardware or device issue. | Contact Motive Support if the light remains solid purple. |
AI Dashcam Plus Alerts LED states
When the AI Dashcam Plus notices unsafe driving (like speeding or phone usage), alerts LED warns the Driver right away. To turn on these in-cab alerts, go to the Motive Fleet Dashboard and enable the settings.
| LED state | Audio behavior | Meaning |
| Blinking white | No audio | The device is booting or updating its firmware. Do not unplug the device. |
| Solid blue | No audio | The device is recording video from the road, driver, and/or license plate recognition (LPR) camera. This is the normal, healthy operating state. |
| Blinking blue | Plays once when initiated | A live stream or Quick Capture is active. |
| Solid green | No audio | Privacy Mode is active. The road-facing camera continues recording while the driver-facing camera is disabled. |
| Blinking green | Plays once when initiated | A road-facing live stream is active while Privacy Mode is enabled. |
| Blinking red | Plays periodically with a cooldown until the condition is resolved | An ongoing safety alert is active, such as speeding, close following, seat belt violation, distraction, cell phone use, drowsiness, or lens obstruction. |
| Blinking red | Plays once for the length of the voice message | A coachable driving event has been detected, such as hard acceleration, hard braking, hard cornering, or a stop sign violation. |
Common AI Dashcam Plus LED combinations
| Connectivity LED | Alerts LED | Meaning |
| Off | Off | The device has no power. Check the cable connection to the vehicle's diagnostic port and confirm the vehicle's ignition is on. |
| Off | Solid blue | The device is recording normally, and the Driver App is connected. This is the fully healthy state. The solid blue Alerts LED state by itself is never the sign of a connection problem. |
| Blinking red | Any active LED state | The Driver App has not been paired with the device. This is the state most often mistaken for a hardware or power problem when it can be resolved simply by pairing the Driver App to AI Dashcam Plus. |
| Solid purple | Any state | The device has a hardware or device issue. Contact Motive Support if the condition persists. |
Troubleshooting an unexpected AIDC+ LED state
- Confirm which LED is showing the color or blink pattern.
- If both LEDs are off, check that the vehicle adapter is securely connected to the AIDC+ and the vehicle diagnostic port.
- If the Connectivity LED is blinking red, open the Motive Driver App and select the vehicle to pair your Driver App with AIDC+.
- If the Alerts LED is blinking white, do not disconnect the device while a firmware update is in progress.
- If the Connectivity LED remains solid purple, contact Motive Support to report the hardware issue.
FAQs
How many LEDs does the AI Dashcam Plus have?
The AI Dashcam Plus has two LEDs:
- Connectivity LED: Located at the bottom center of the device, this smaller LED light communicates device startup, Driver App pairing status, GPS/LTE signal, and hardware health.
- Alerts LED: Located below the physical button on the device, the alerts LED communicates recording status, privacy mode, live stream or Quick Capture activity, and unsafe driving behaviors.
Why is one LED off while the other is lit?
The LEDs work independently. The Connectivity LED can be off during normal recording, while the Alerts LED shows the recording state or an active alert.
Why does the same color have different meanings?
The meaning depends on which LED is displaying the color. For example, blinking red on the Connectivity LED indicates that the driver is not connected, while blinking red on the Alerts LED indicates a safety or coachable driving event.
Does the AI Dashcam Plus appear in my phone’s Bluetooth settings?
No. The AIDC+ appears in the vehicle list in the Motive Driver App and does not appear in the phone’s system Bluetooth device list.
