Installation Guide: Cable 4020

    Audience Drivers, Fleet Admins, Fleet Managers
    Applies To Cable 4020



    Introduction

    Motive enables the Fleets to securely install the Vehicle Gateway using the provided cables. Read this article to install Cable 4020 for a successful Vehicle Gateway or Asset Gateway Max installation.

    Note: This installation guide is only applicable to non-ELD mandate customers.





    Installation Requirements: Cable 4020, Vehicle Gateway or Asset Gateway Max

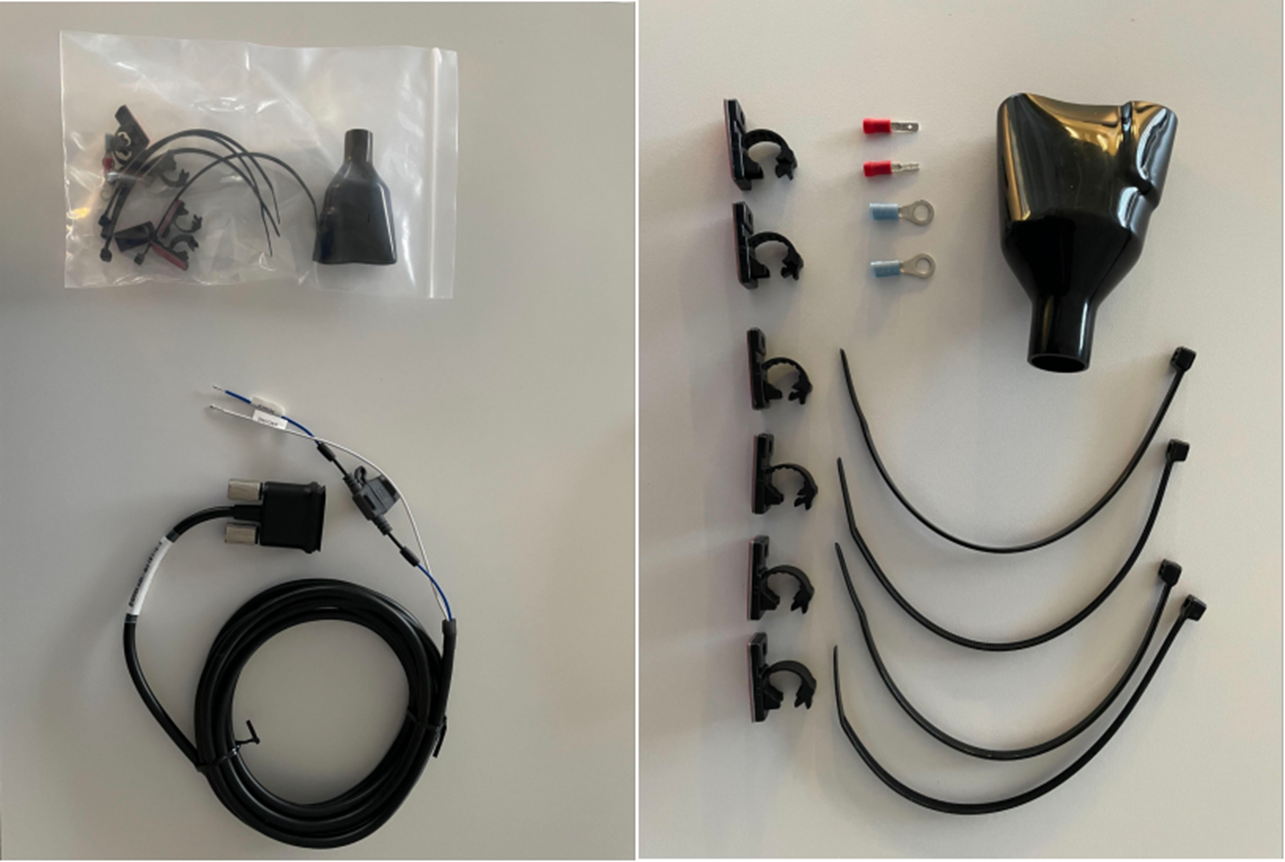

    What comes in the box?

    • Cable 4020
    • 4 zip ties
    • 6 cable clips
    • 2 ring terminals
    • 2 flat terminals
    • 1 boot
    • 5 Amp fuse


    Tools

    • Multimeter
    • Wire stripper/crimper/snips
    • Wire brush
    • Electrical tape
    • Add-a-circuit fuse tap/an in-line fuse tap

    Steps: Installing Cable 4020

    1. Connect the Vehicle Gateway or Asset Gateway Max to the DB-15 connector of the Cable 4020.
      Note: Ensure both thumbscrews are tightly secured for a secure connection.

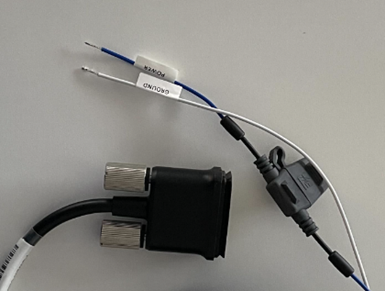

    2. Identify the power connection wires of Cable 4020:
      • Blue (labeled Power)
      • White (labeled Ground)
    3. Identify the vehicle's chassis or battery ground. Use a multimeter to ensure that the selected ground reads 0V.
      Note: Motive recommends battery ground over chassis ground.
    4. Connect the white ground wire to the desired ground connection.
    5. Identify a switched ignition OR constant power source which provides 12-24V.
      Note: Connecting the blue wire to a constant power source will allow the connected Motive device to use vehicle battery power when the engine is off. Connecting to a switched or ignition power source is recommended if battery drain is a concern.
    6. If using an ignition or switched power source, start the engine and/or disengage the power switch.
    7. Use a multimeter to ensure the selected power source is providing 12-24V.
    8. If using an ignition or switched power source, stop the engine and/or re-engage the power switch.
    9. Connect the blue power wire to the selected power source with an in-line 5 Amp fuse for added protection.
      Note: Using a fuse tap is recommended if installing in the fuse box.
    10. For cable installations, create a 'drip loop' in the cable route to keep water out at the vehicle connection point.
    •
