Cable 4020

Updated

Motive enables the Fleets to securely install the Vehicle Gateway using the provided cables. Read this article to install Cable 4020 for a successful Vehicle Gateway or Asset Gateway Max installation.

Note: This installation guide is only applicable to non-ELD mandate customers.



Installation Requirements: Cable 4020, Vehicle Gateway or Asset Gateway Max

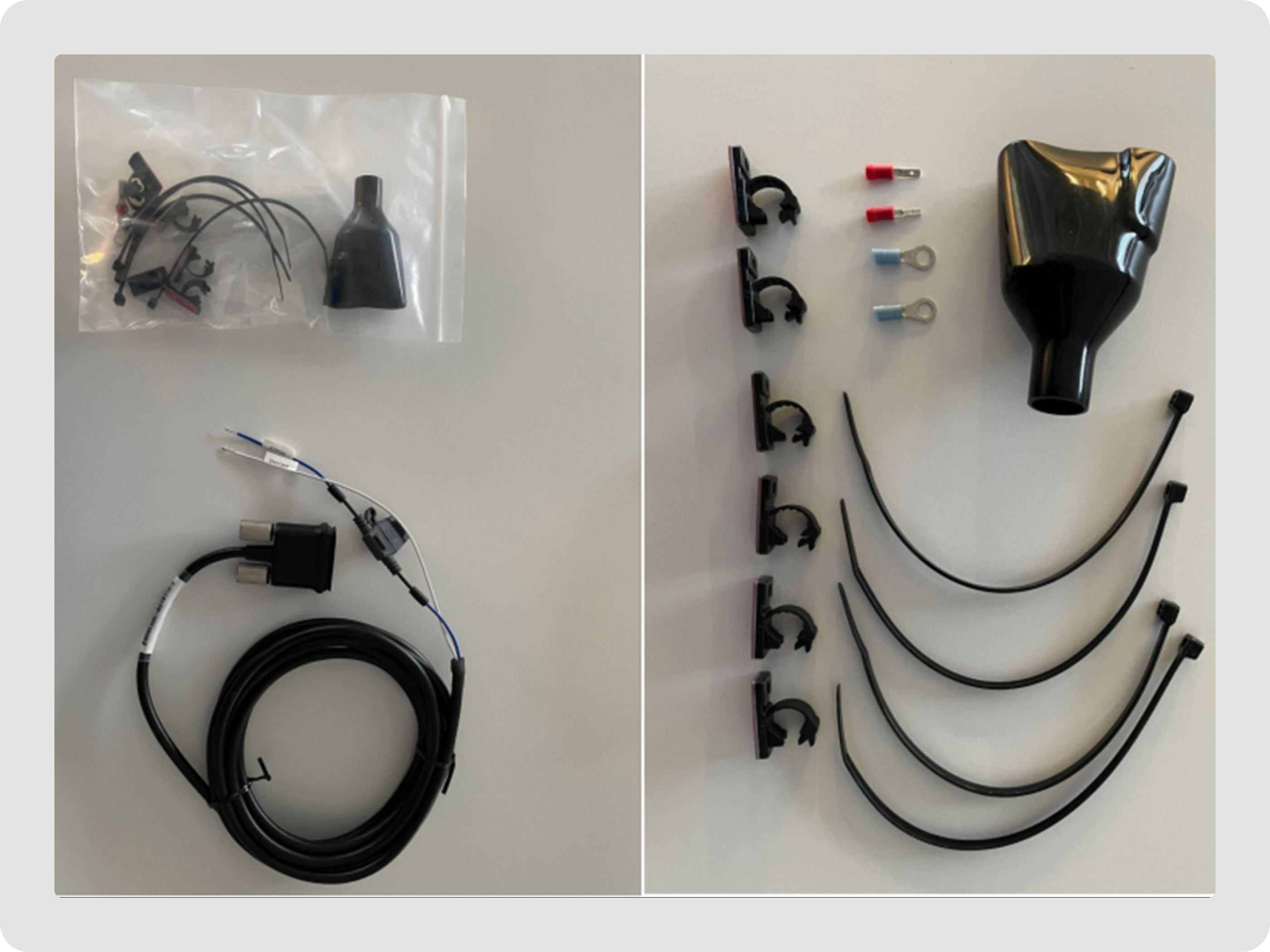

What comes in the box?

  • Cable 4020
  • 4 zip ties
  • 6 cable clips
  • 2 ring terminals
  • 2 flat terminals
  • 1 boot
  • 5 Amp fuse


Tools

  • Multimeter
  • Wire stripper/crimper/snips
  • Wire brush
  • Electrical tape
  • Add-a-circuit fuse tap/an in-line fuse tap

Installing Cable 4020

  1. Connect the Vehicle Gateway or Asset Gateway Max to the DB-15 connector of the Cable 4020.

    Note: Remove the plastic washers that are around the thumbscrews in order for the cable to seat properly onto the Vehicle Gateway. If they are not removed, the cable will not fully secure onto the Vehicle Gateway.
     Note: Ensure both thumbscrews are tightly secured for a secure connection.

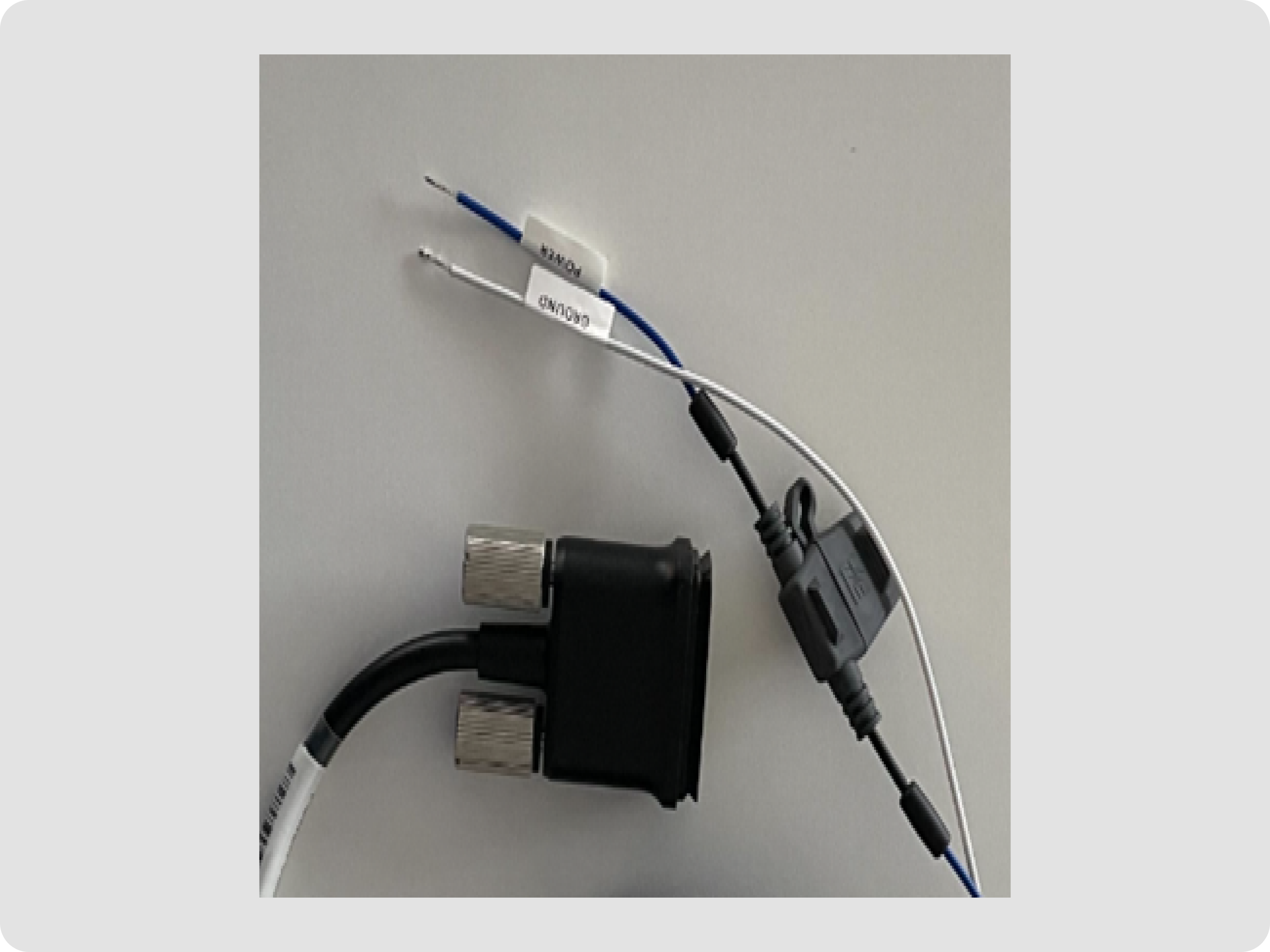

  2. Identify the power connection wires of Cable 4020:
    • Blue (labeled Power)
    • White (labeled Ground)


  1. Identify the vehicle's chassis or battery ground. Use a multimeter to ensure that the selected ground reads 0V.

    Note: Motive recommends battery ground over chassis ground.
  2. Connect the white ground wire to the desired ground connection.

  3. Identify a switched ignition OR constant power source that provides 12-24V.

    Note: Connecting the blue wire to a constant power source will allow the connected Motive device to use vehicle battery power when the engine is off. Connecting to a switched or ignition power source is recommended if battery drain is a concern.
  4. If using an ignition or switched power source, start the engine and/or disengage the power switch.
  5. Use a multimeter to ensure the selected power source is providing 12-24V.
  6. If using an ignition or switched power source, stop the engine and/or re-engage the power switch.

  7. Connect the blue power wire to the selected power source with an in-line 5 Amp fuse for added protection.

    Note: Using a fuse tap is recommended if installing in the fuse box.
  8. For cable installations, create a 'drip loop' in the cable route to keep water out at the vehicle connection point.
