Cable VCBL-Y-FMST: AI Dashcam Plus installation guide for vehicles with FMS port

Updated 19 February 2026 15:28

What comes in the box?

Note: Before starting the installation, ensure the following:

1. The VCBL-Y-FMST cable includes four labelled ends:

P1: Connects to the vehicle adapter.
P2: Connects to the vehicle’s FMS port
P3: Optional: To maintain the FMS port accessible for other uses. Required with Y-cable installations

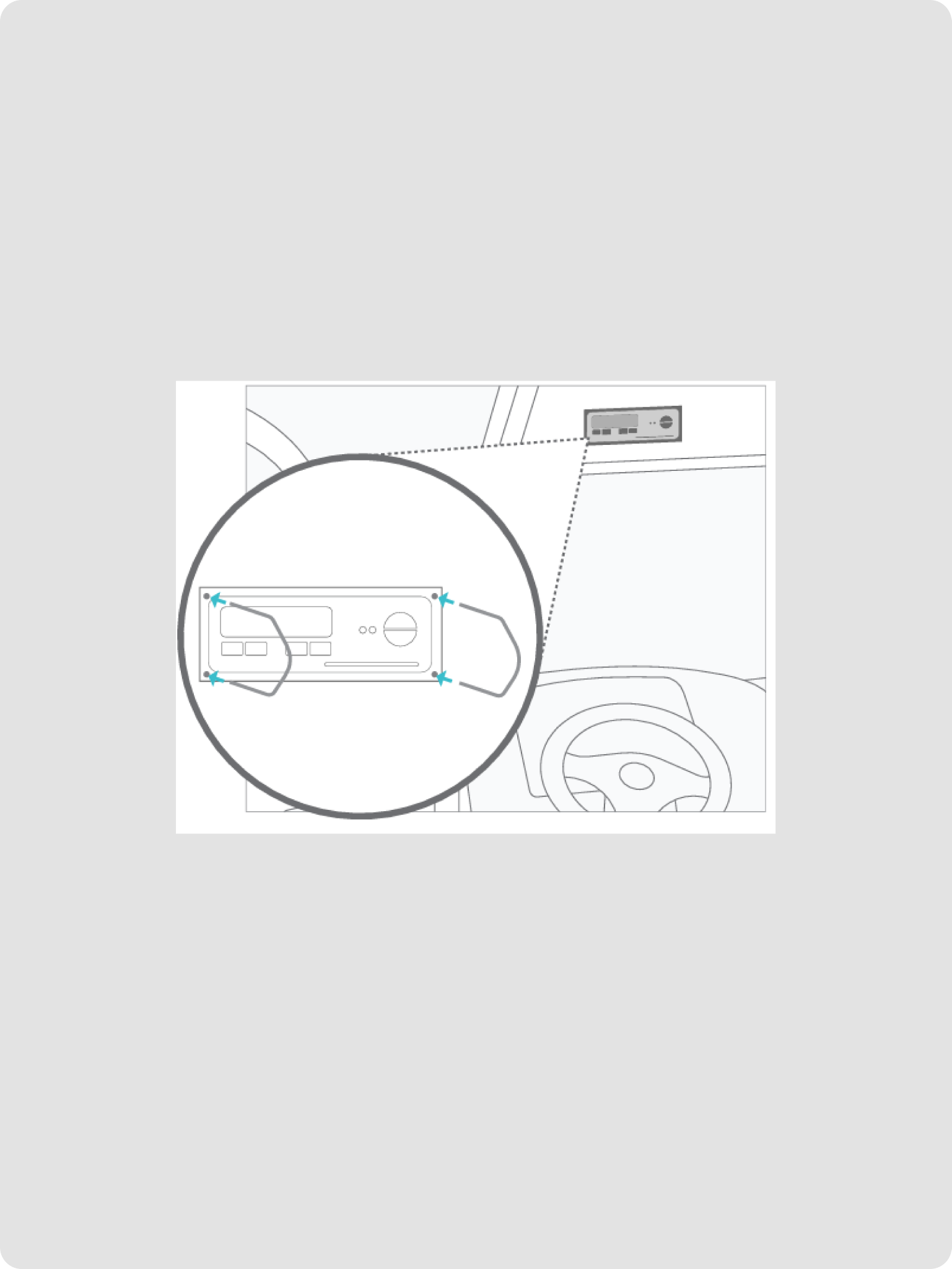

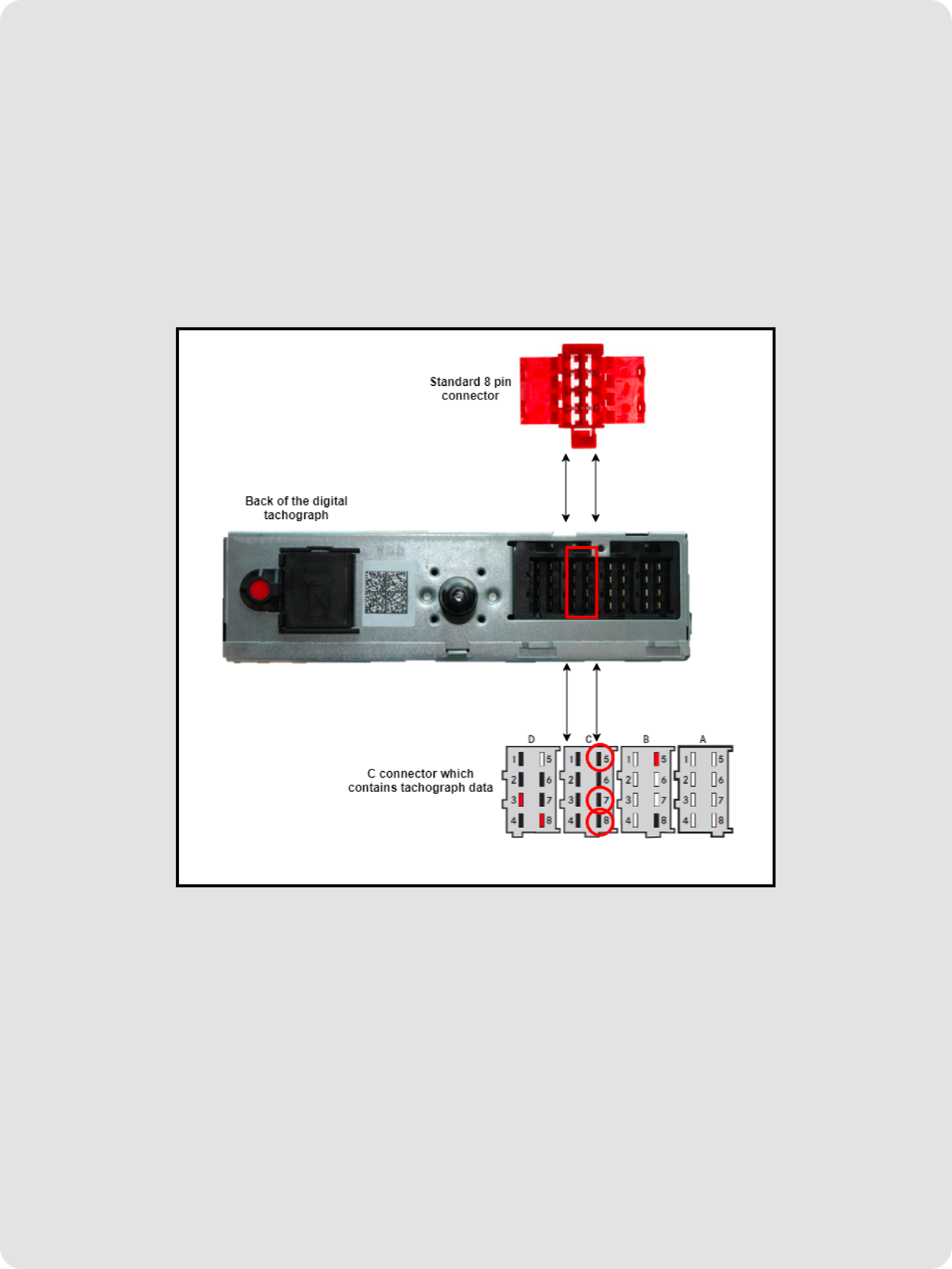

P4: Connects to the Tachograph C port - C5 and C7

Locate the FMS Port

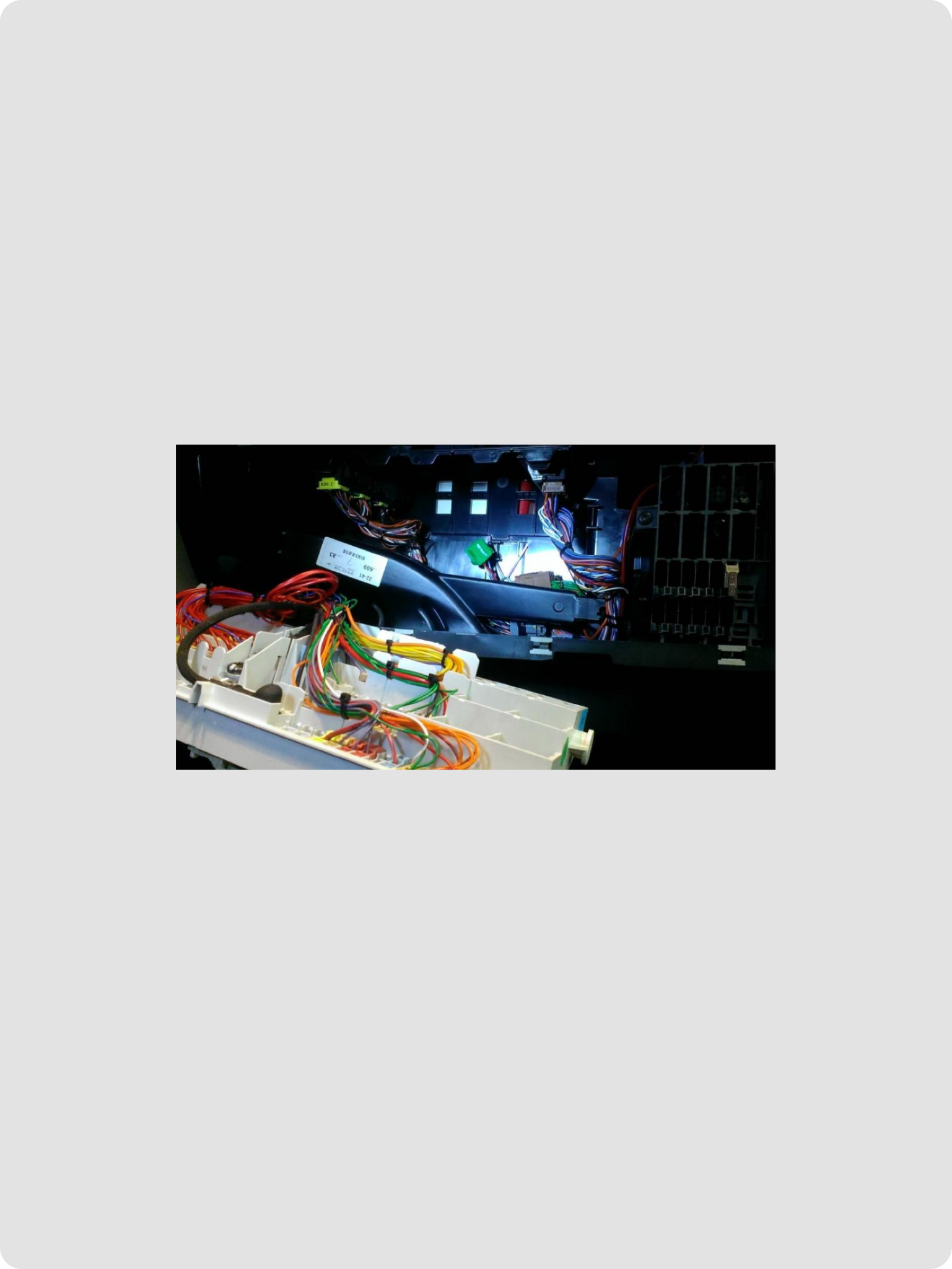

The FMS Port connector is typically located behind the fuse board.

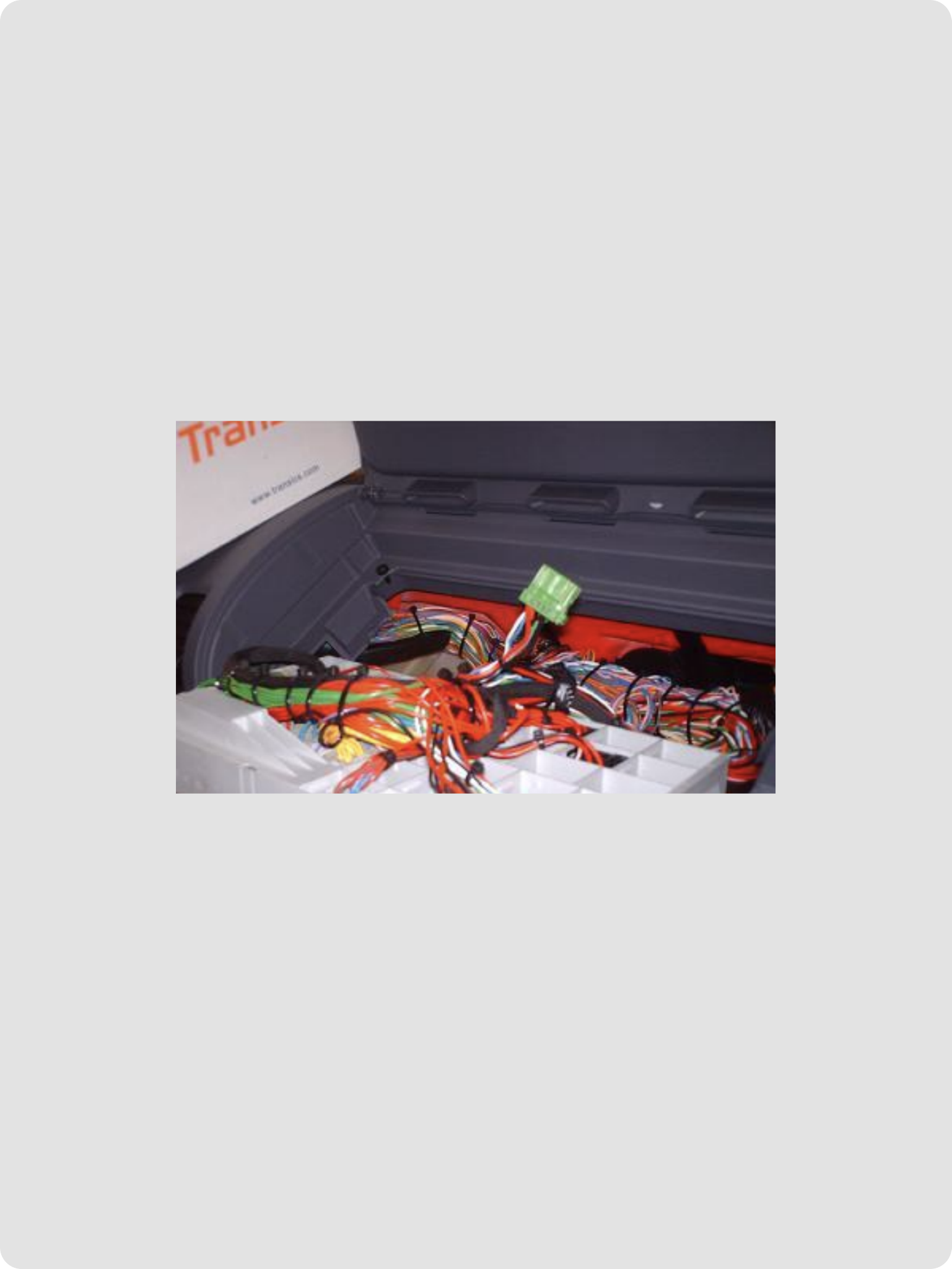

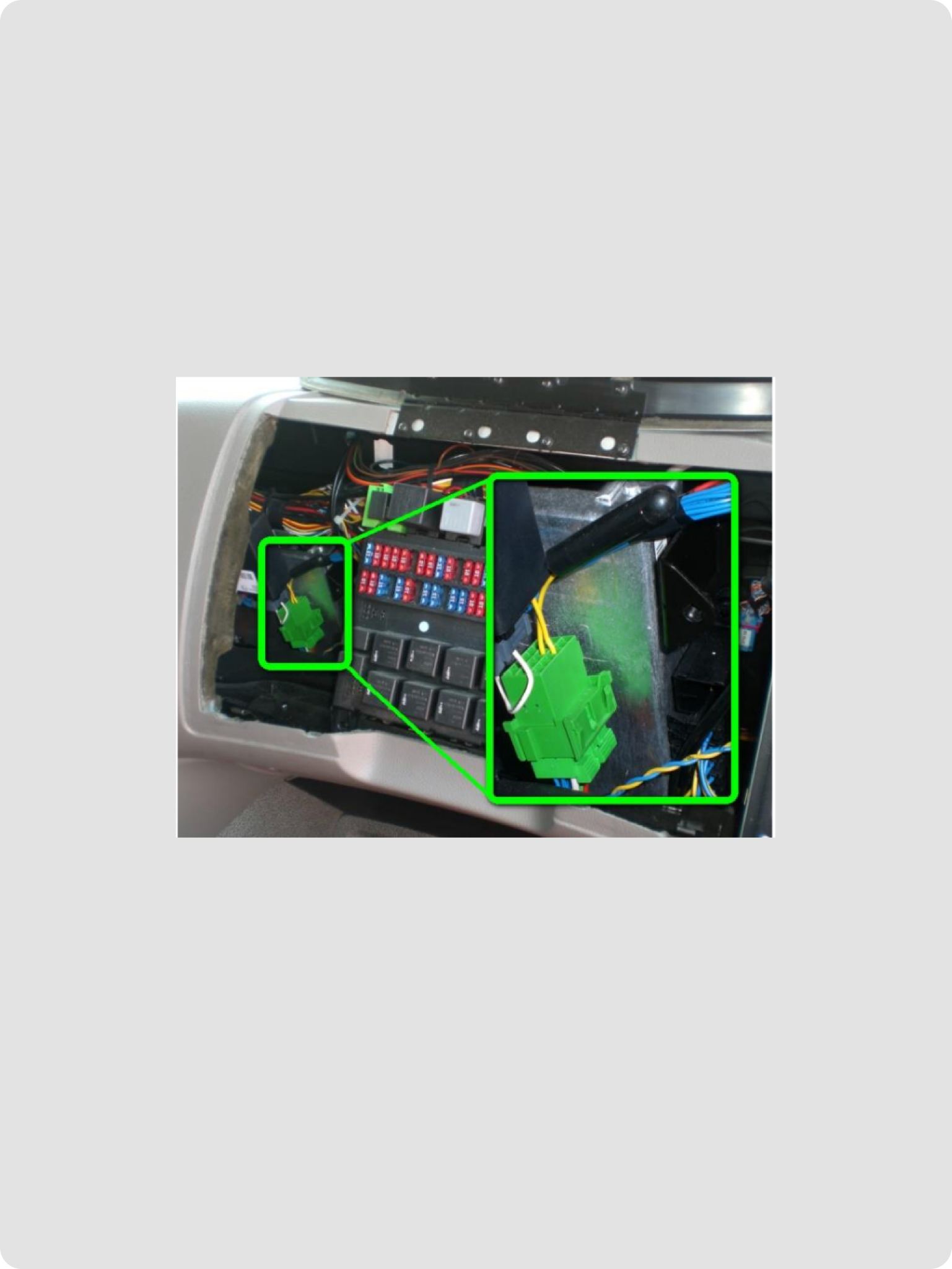

Scania R-G-P series

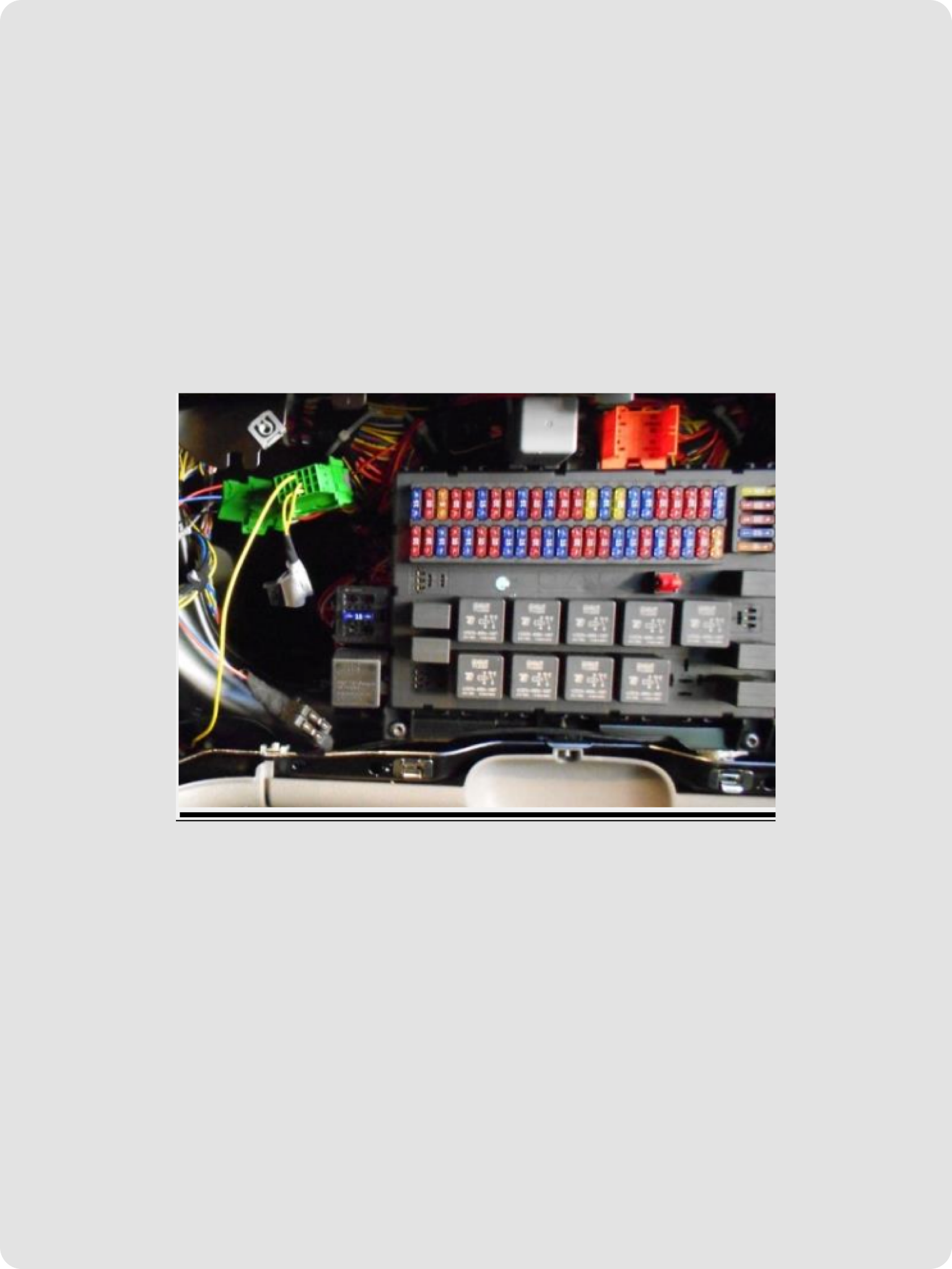

- In Scania, R-G-P series trucks, the FMS (Connector C137) connector is located underneath the fuse board and is marked green

Scania New R-S-G-P Series
- In Scania, new R-S-G-P series trucks, the FMS (Connector C137) connector is located behind the fuse board (take out the air tube)

DAF CF - XF 105

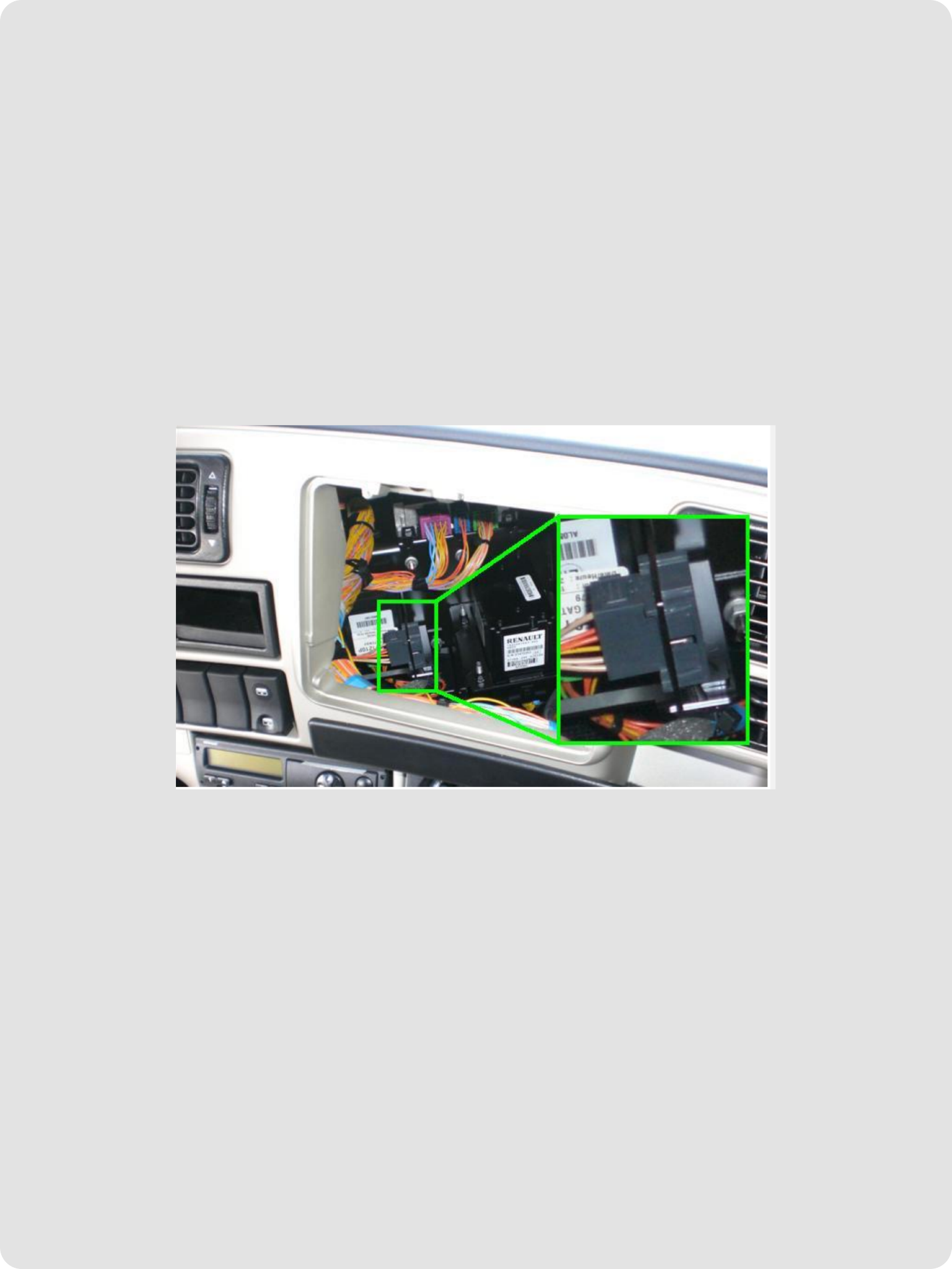

- The FMS and A098 connectors can be found behind a module on the left or under the fuse board.

Iveco Stralis II & Hi-Way

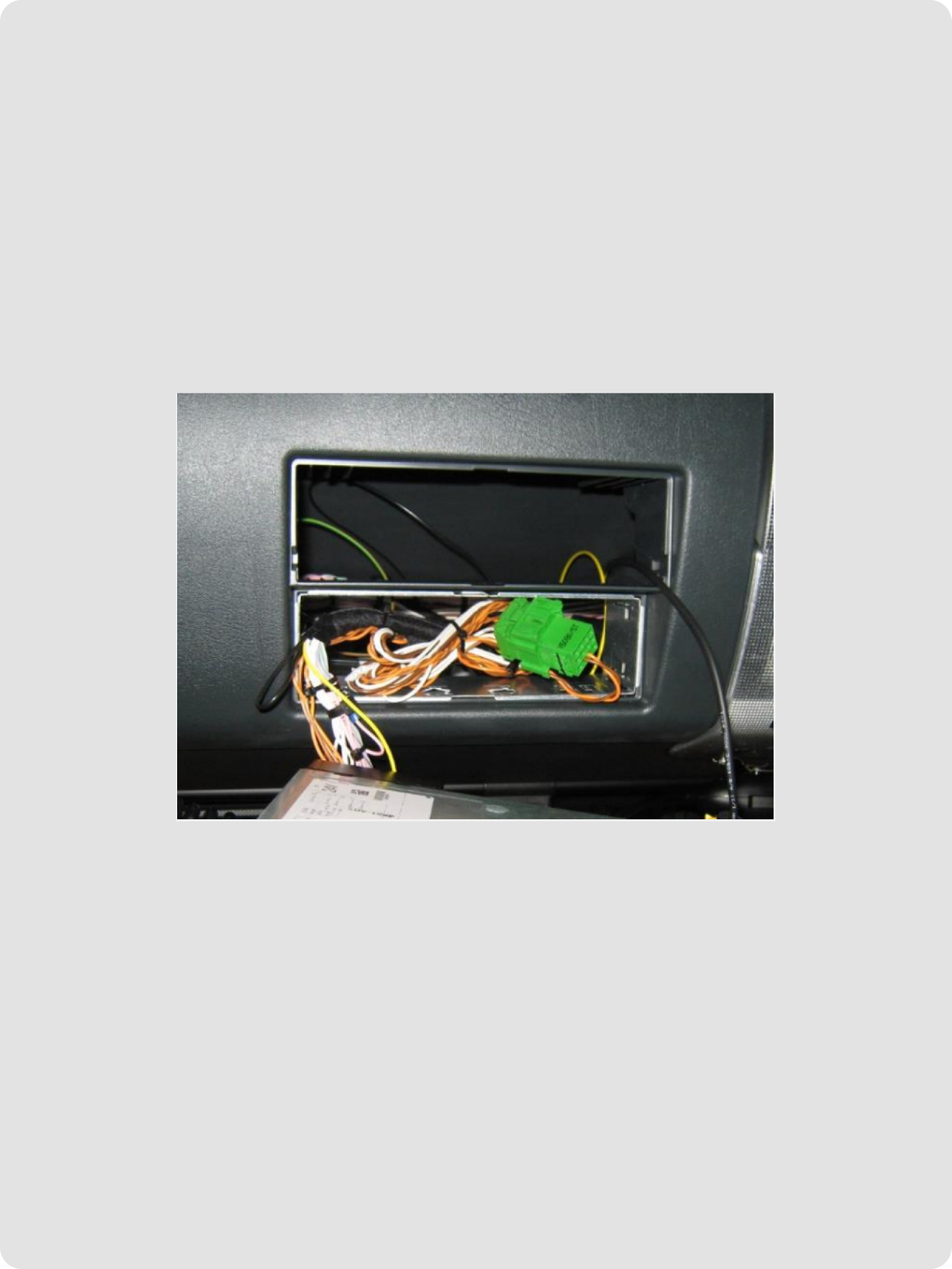

- The connector can be found behind the radio. It is housed in one of the compartments in DIN format.

MAN TGX, TGS, TGM, TGL
- For MAN vehicles, the FMS port is found in the headliner

Renault D

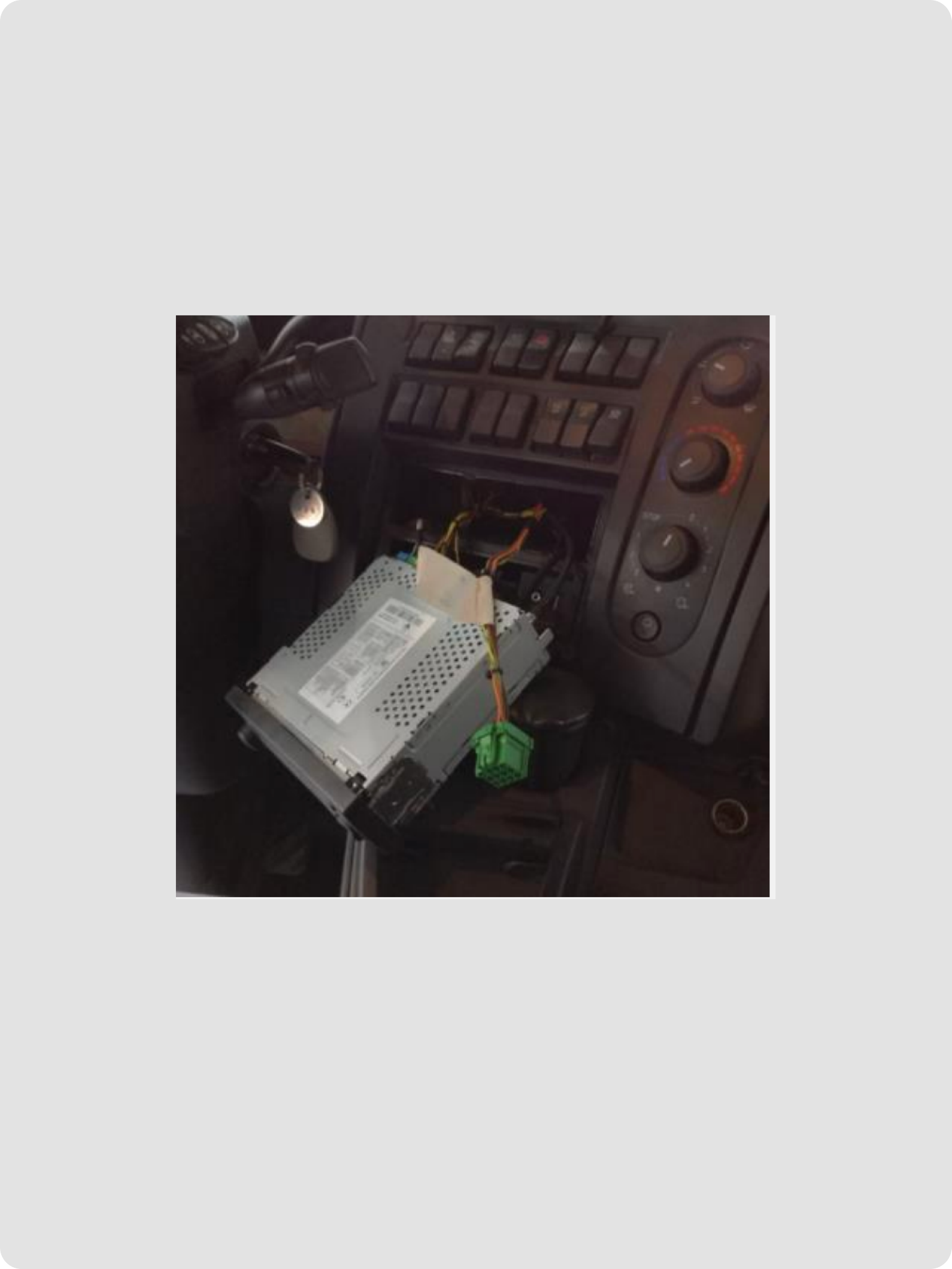

- For Renault D vehicles, behind the radio panel, you should find the FMS connector X26.

RENAULT MAGNUM DXI (VF617) & E-TECH

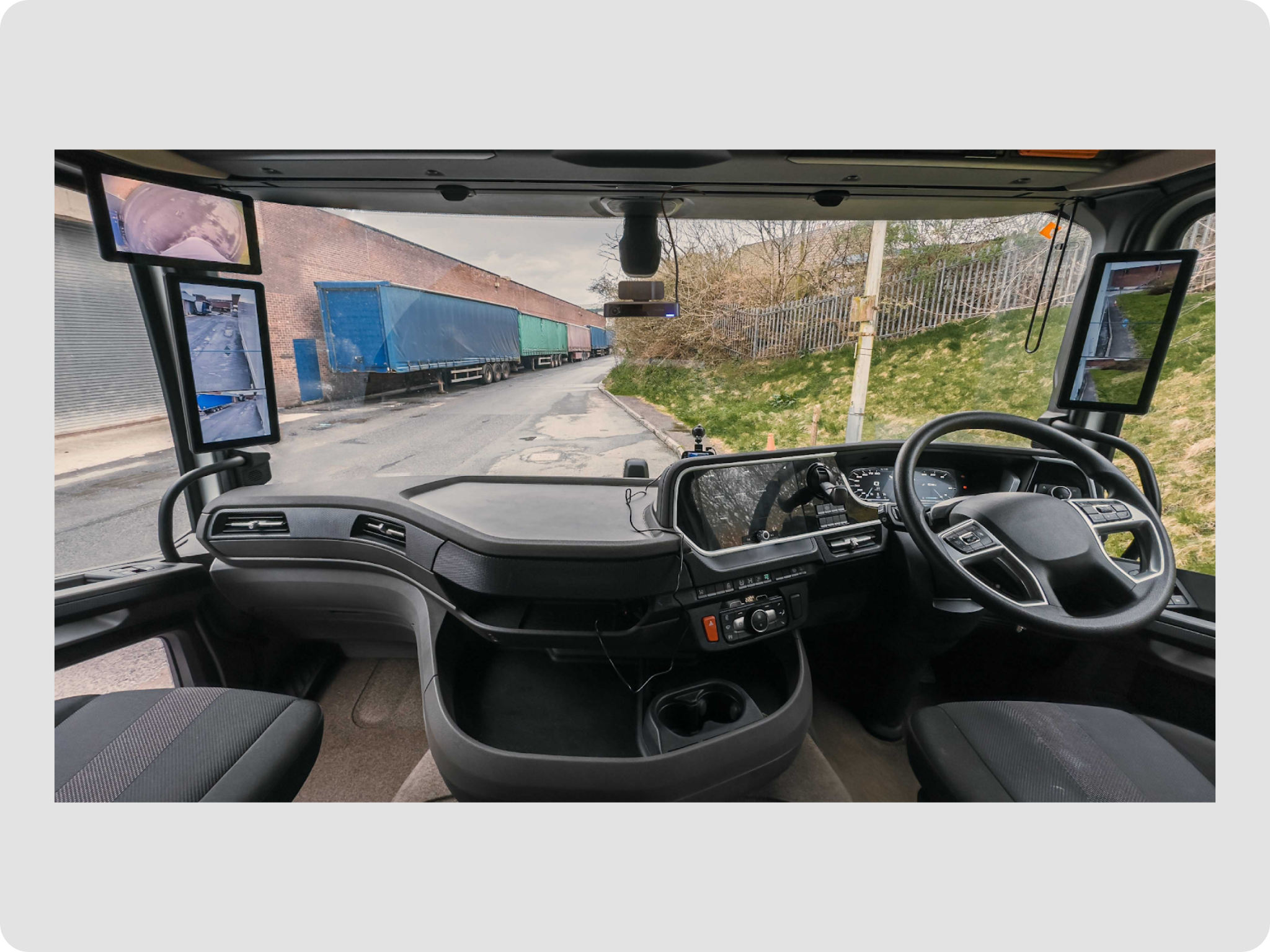

- The grey FMS connector can be found behind the cup holder on the right side of the driver. All connections can be made there.

RENAULT MIDLUM DXI / Premium DXI (VF624 / VF627 / VF629)

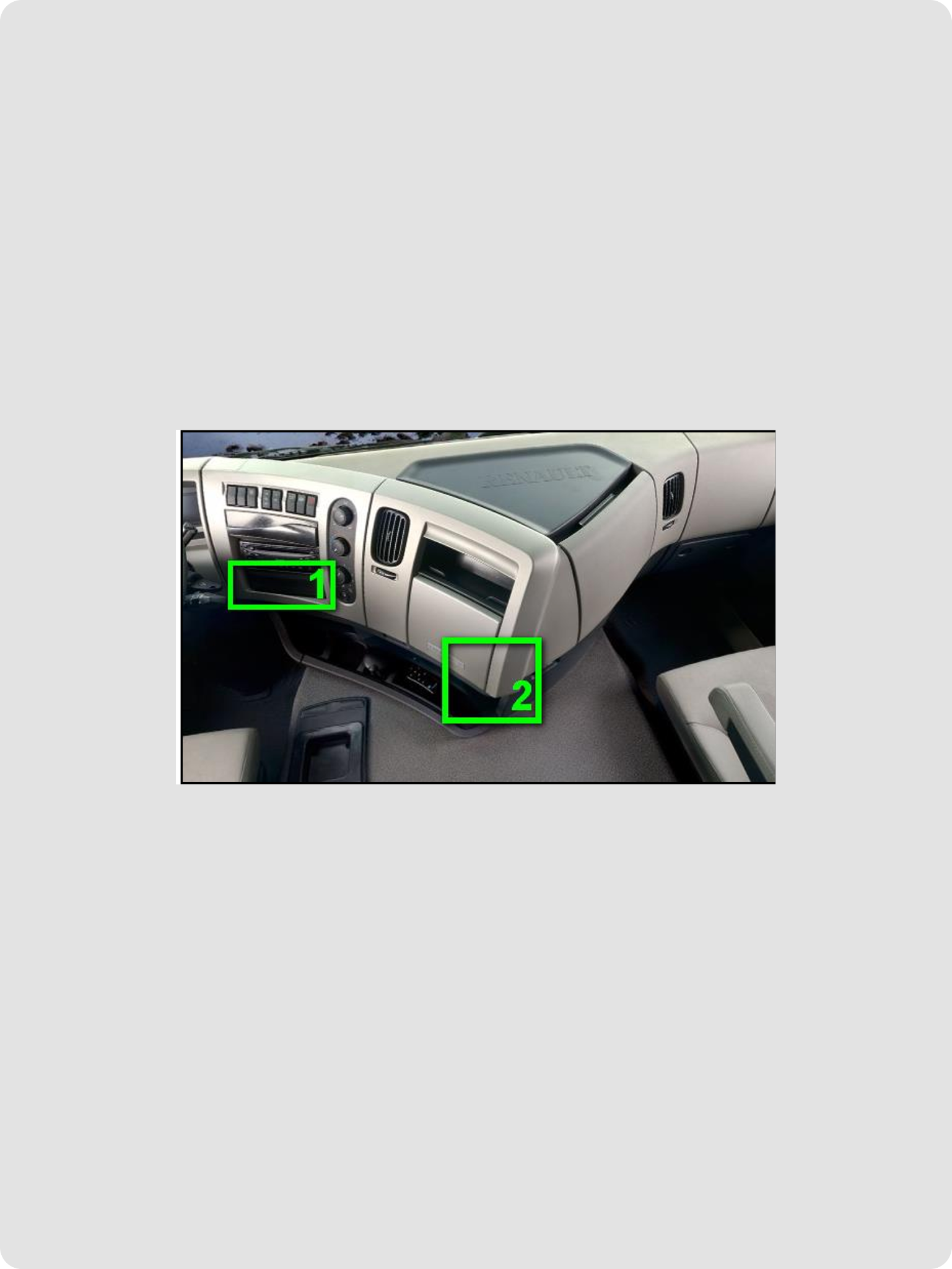

- The location of the grey FMS connector depends on the cab model and the production date. 1. Behind the cover plate underneath the radio. 2. Behind the bottom part of the dashboard. To reach it, dismount the glove box.

Before connecting the AI Dashcam Plus, it is recommended to take the following steps:

Use a multimeter to verify that the plug has the correct point of contact.
Battery LIVE Feed: A constant, fused power supply source.
Ignition Live Feed: Must be a Live While Cranking (LWC) ignition source and must not be connected to a temporary or accessory system (ACC) Chassis Earth.
CAN connections can be found by reaching out to your Motive Contact. Also, before completion, the camera will need to be put into CAN Listen only mode done via contacting Motive support at the time of install to get the telematics data.

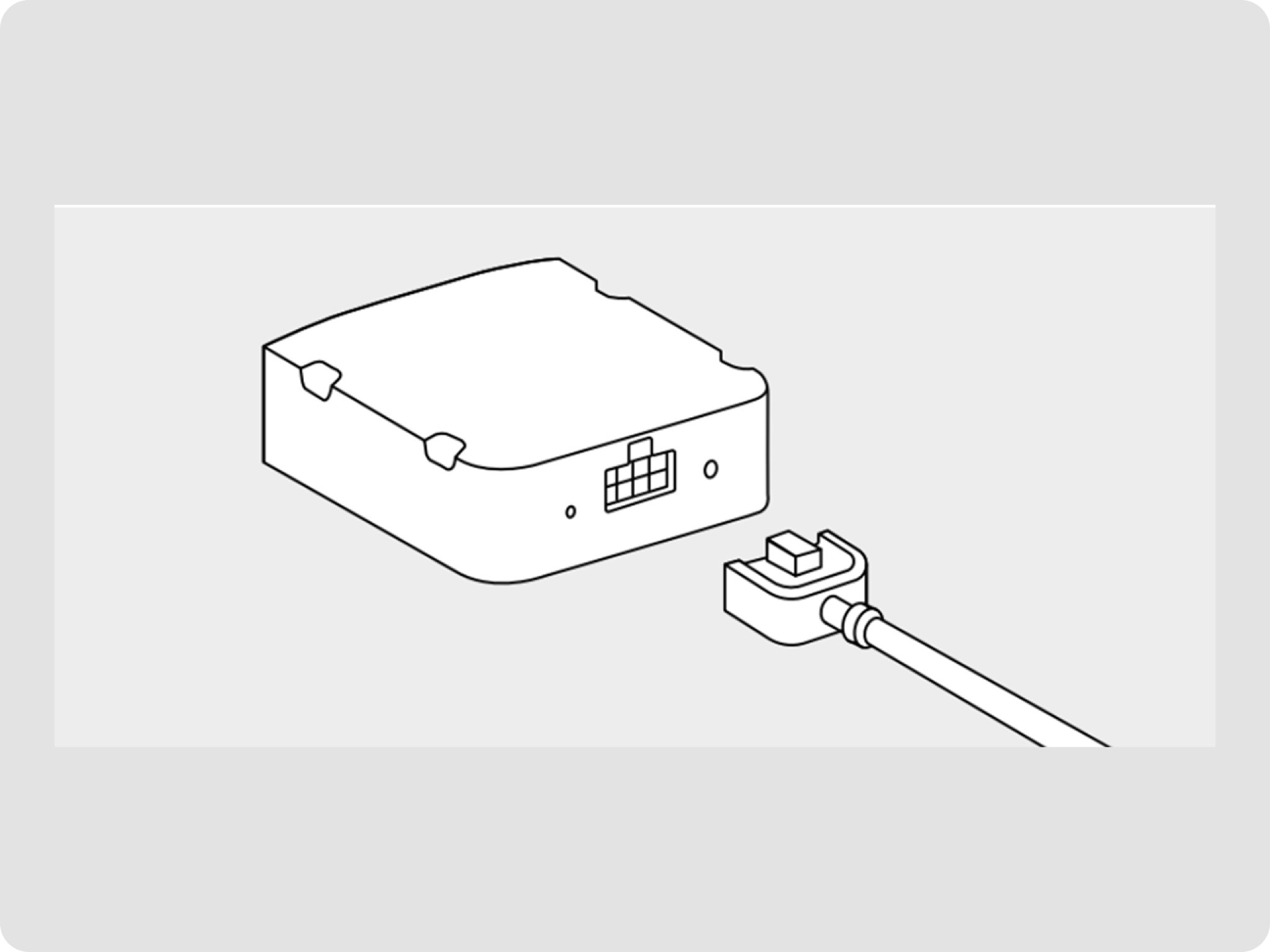

Plug the AI Dashcam Plus cable into the vehicle adapter.

Option 1: For vehicles with an FMS port installed/activated

Option 2: For vehicles without an FMS port installed/activated

If the vehicle does not have an FMS port available, follow the steps below to connect using a contactless (inductive) CAN sniffer:

Identify the correct CAN bus installation location in the vehicle (CAN 1 and/or CAN 2).

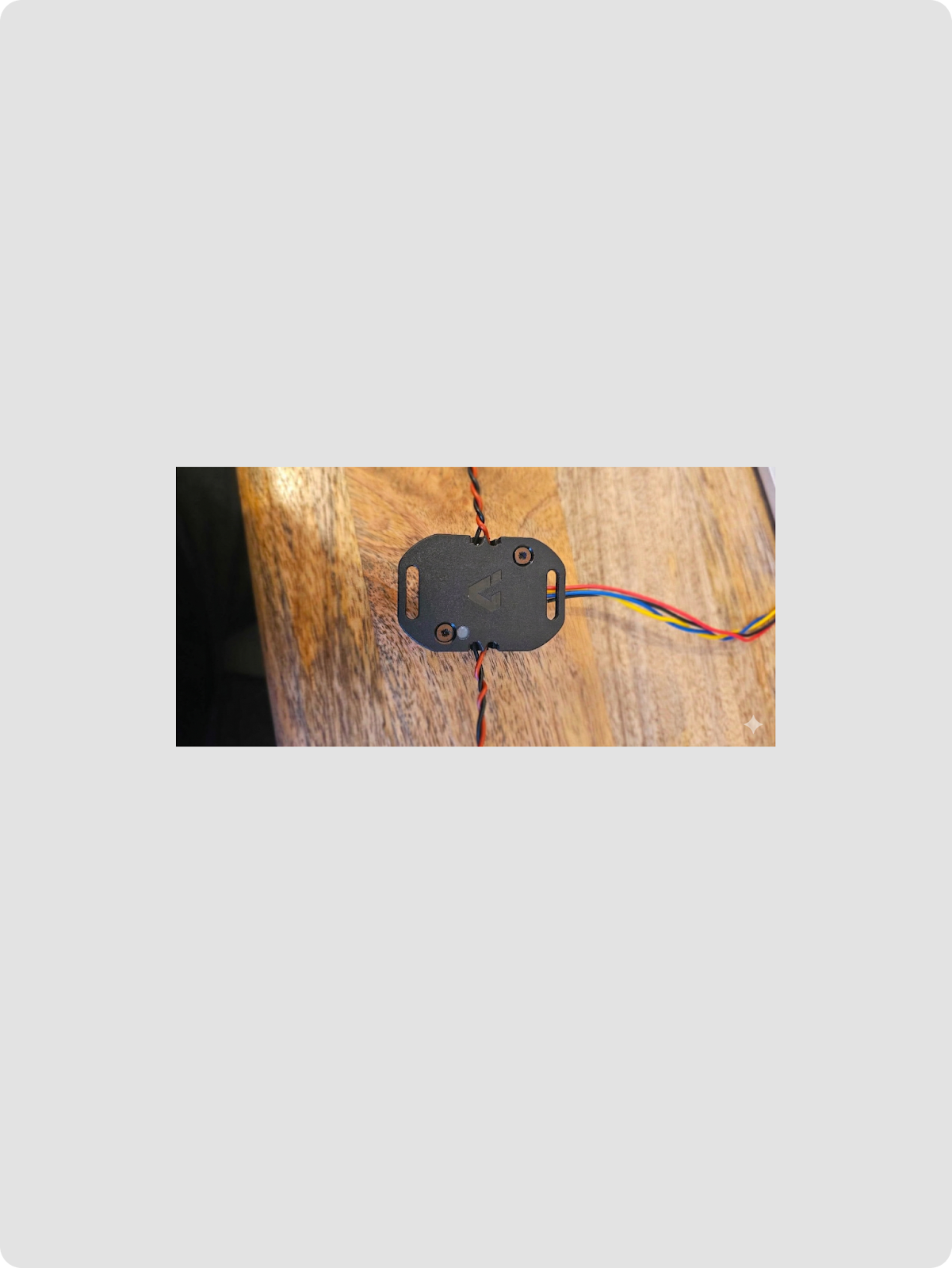

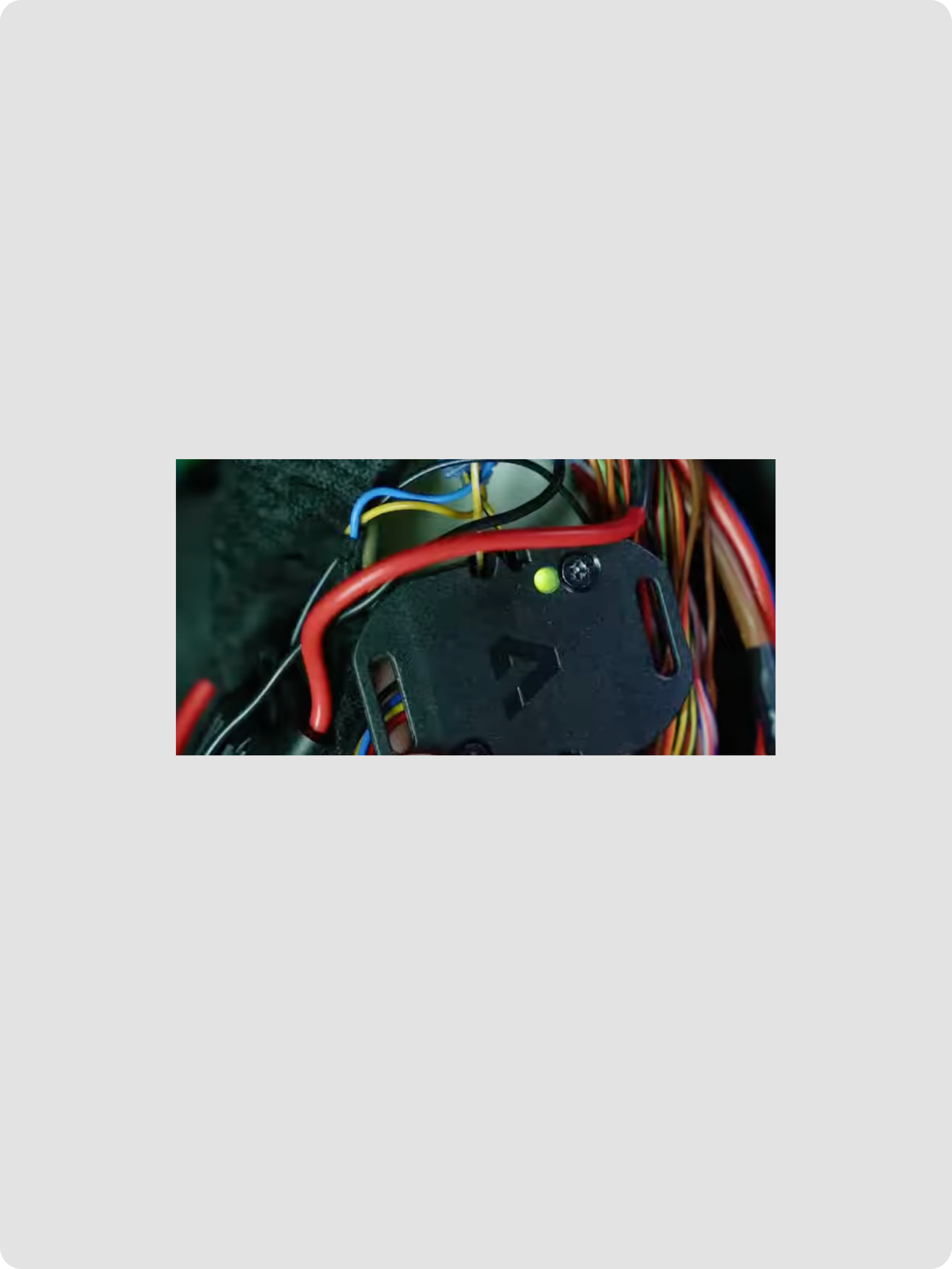

Use an inductive CAN sniffer to tap into the vehicle CAN lines without hardwiring.

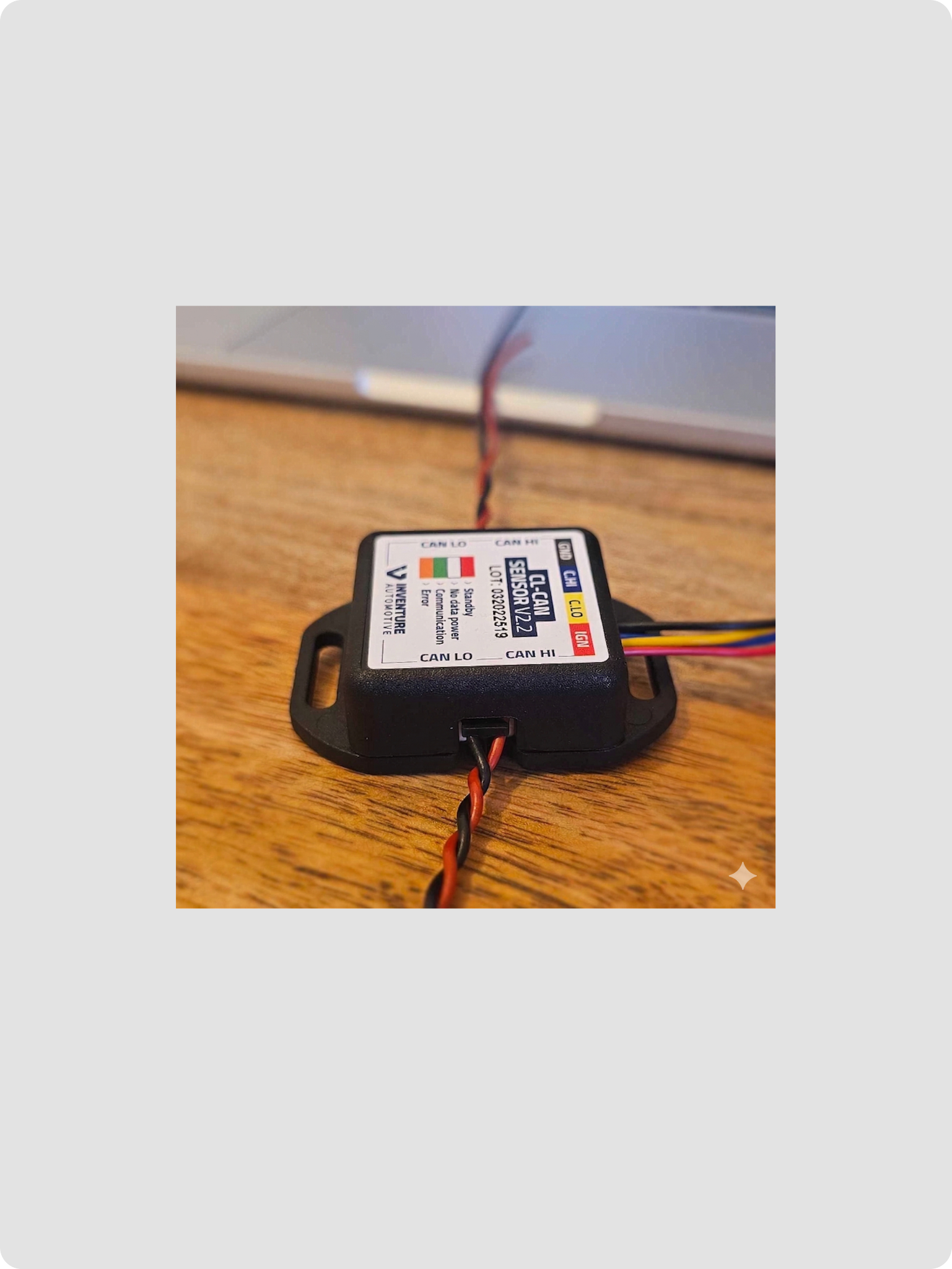

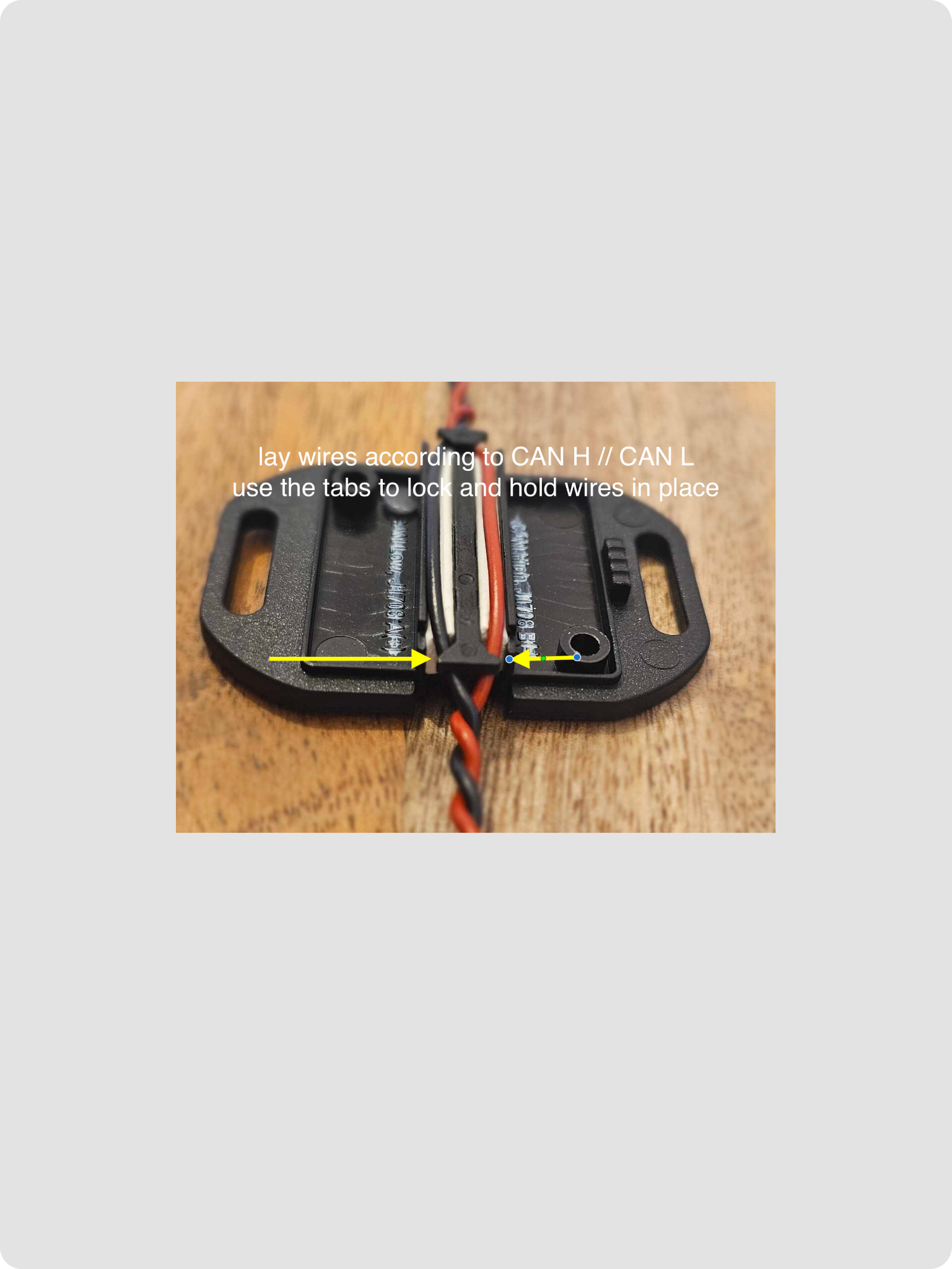

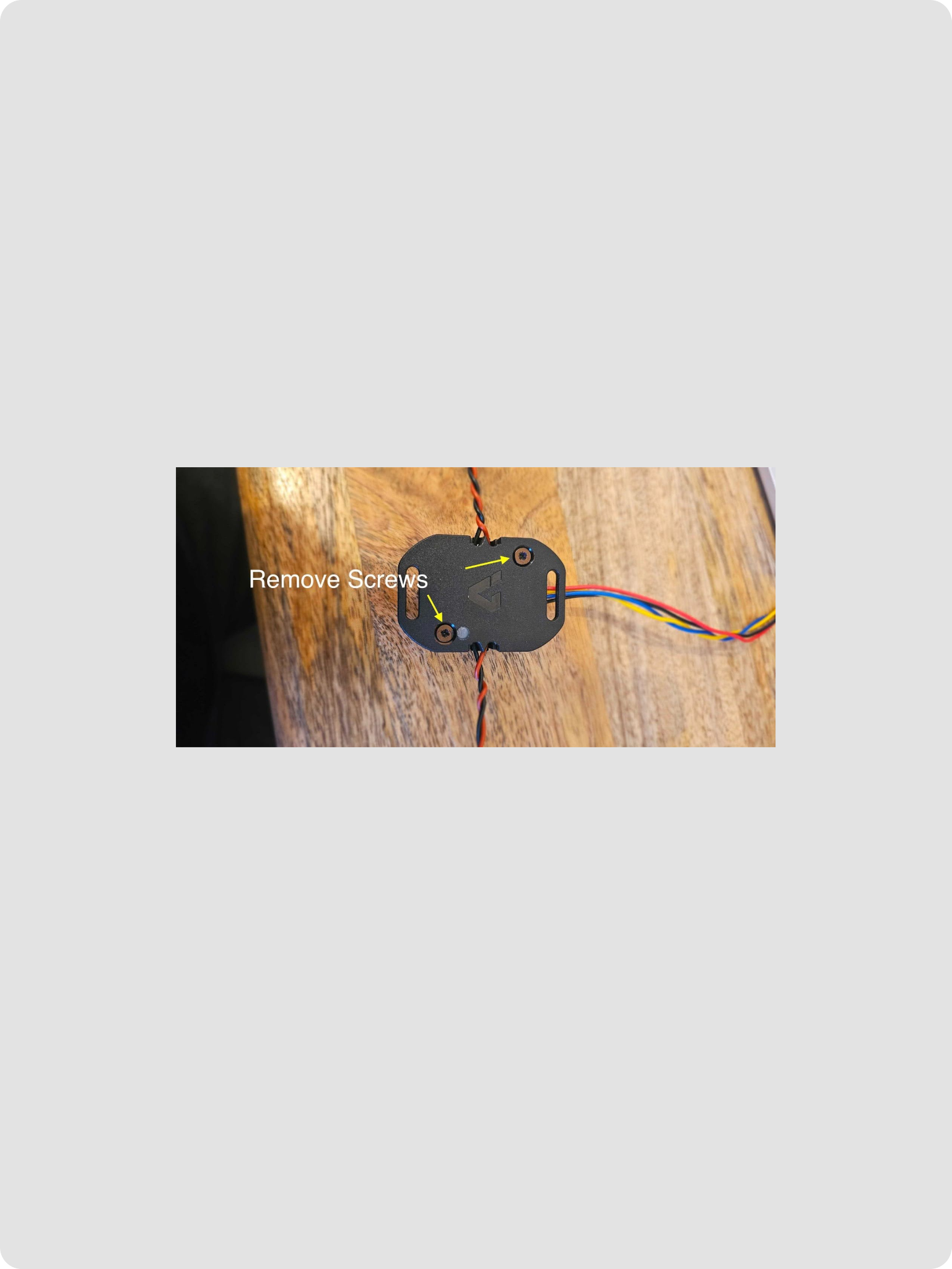

Remove the screws and place the CAN High (CAN_H) wire lengthwise into the slot designated for CAN High on the CAN reader.
Push the wire on both ends of the CAN cable. Use the tabs to lock and hold wires in place
Repeat the same steps for the CAN Low (CAN_L) wire.

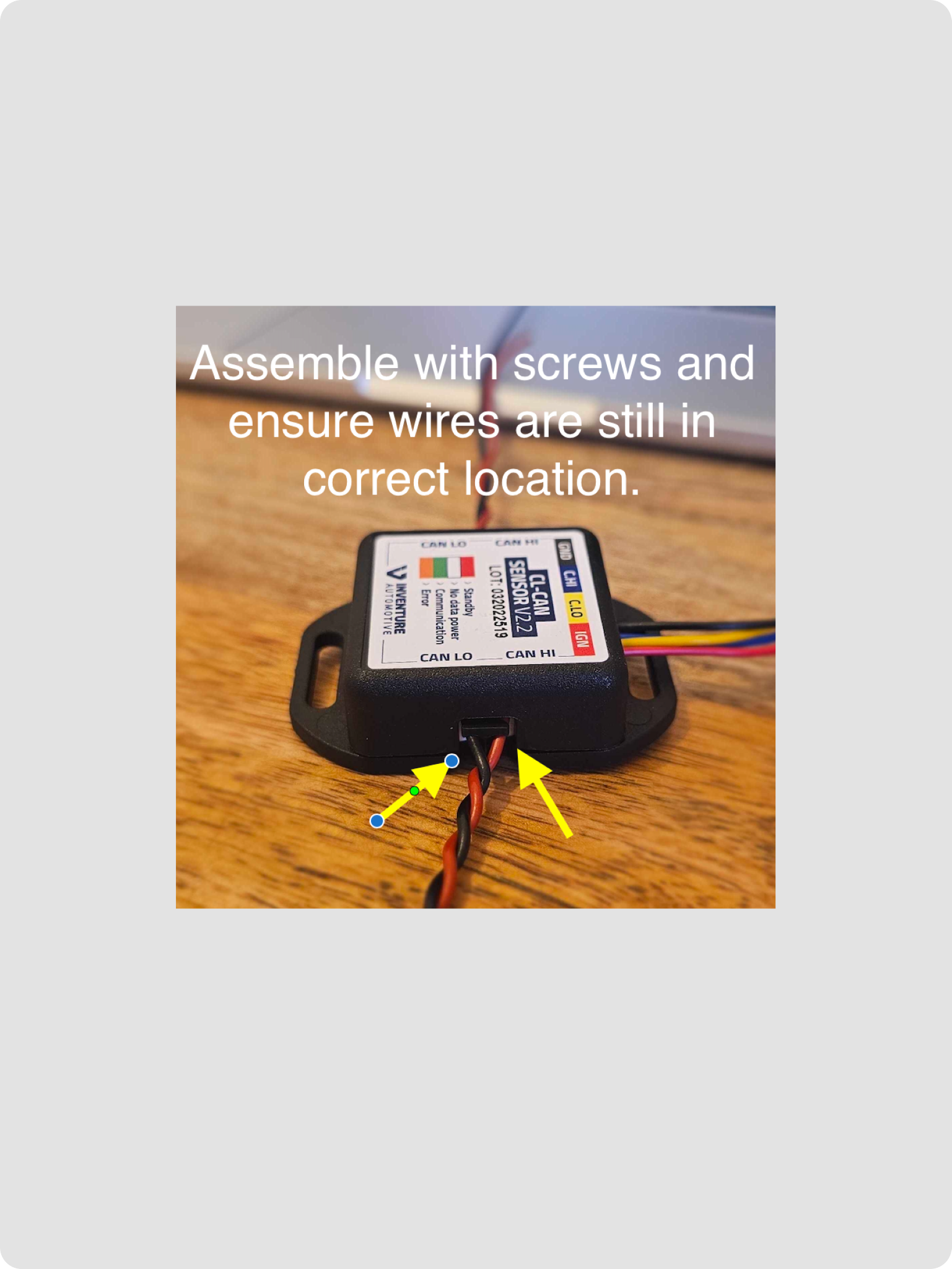

Assemble with screws and ensure the wires are straight and properly seated.

Cut the P2 end of the VCBL-Y-FMST cable
Connect the CAN wires from the FMS cable to the contactless CAN sniffer:
- Yellow → CAN_H (Pin 6)
- Green → CAN_L (Pin 9)

Secure the CAN reader wires using sponge clamps and fasten them to the mounting screws.
Connect power and ground from the CAN sniffer to the FMS cable:
- Red → Power (Pin 12) → Vehicle power source
- Black → Ground (Pin 1) → Vehicle chassis ground
Connect the power wires to the vehicle power source and connect the ground wires to the vehicle chassis ground
