Asset Gateway Mini is a smaller and lower-cost option for customers to keep track of all their assets in the Motive Fleet Dashboard so they can deter theft, stay agile in operations, and improve their bottom line. Asset Gateway Mini comes in 2 varieties:
- Asset Gateway Mini (Cable Powered)
- Asset Gateway Mini (Battery Powered)
Installation Requirements: Asset Gateway Mini (Cable Powered)
What comes in the box?
- 4 Wood Screws
- 4 Self Tapping Screws
- 1 Asset Gateway Mini
- Pinhole Activation Tool
Tools Required
- Power drill
- Drill bits
- Pinhole reset tool
- Screwdriver sets
- Wire strippers
- Wire cutters
- Wire crimpers
- Self-tapping screws
- Ring terminals
- Wire sleeves

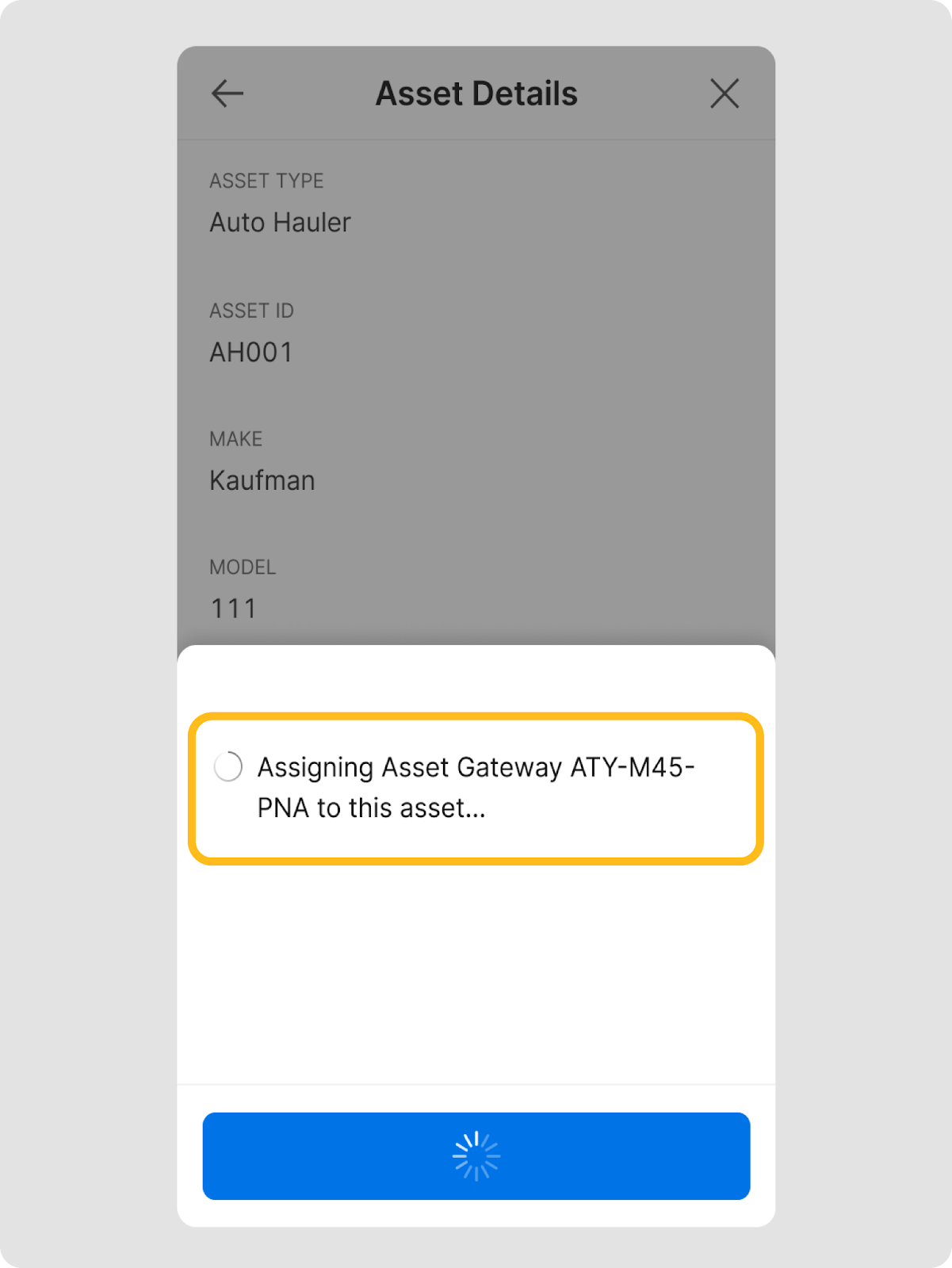

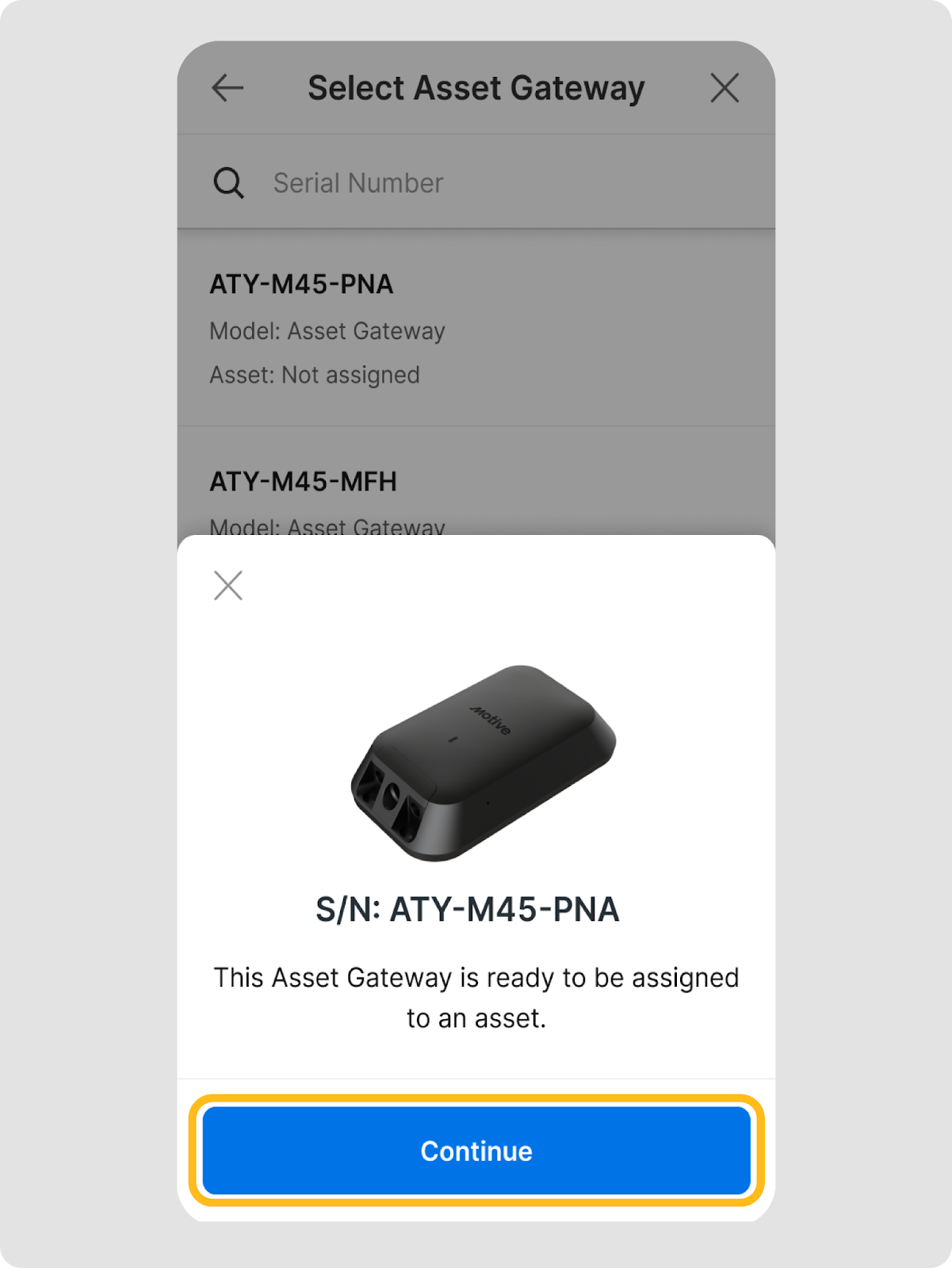

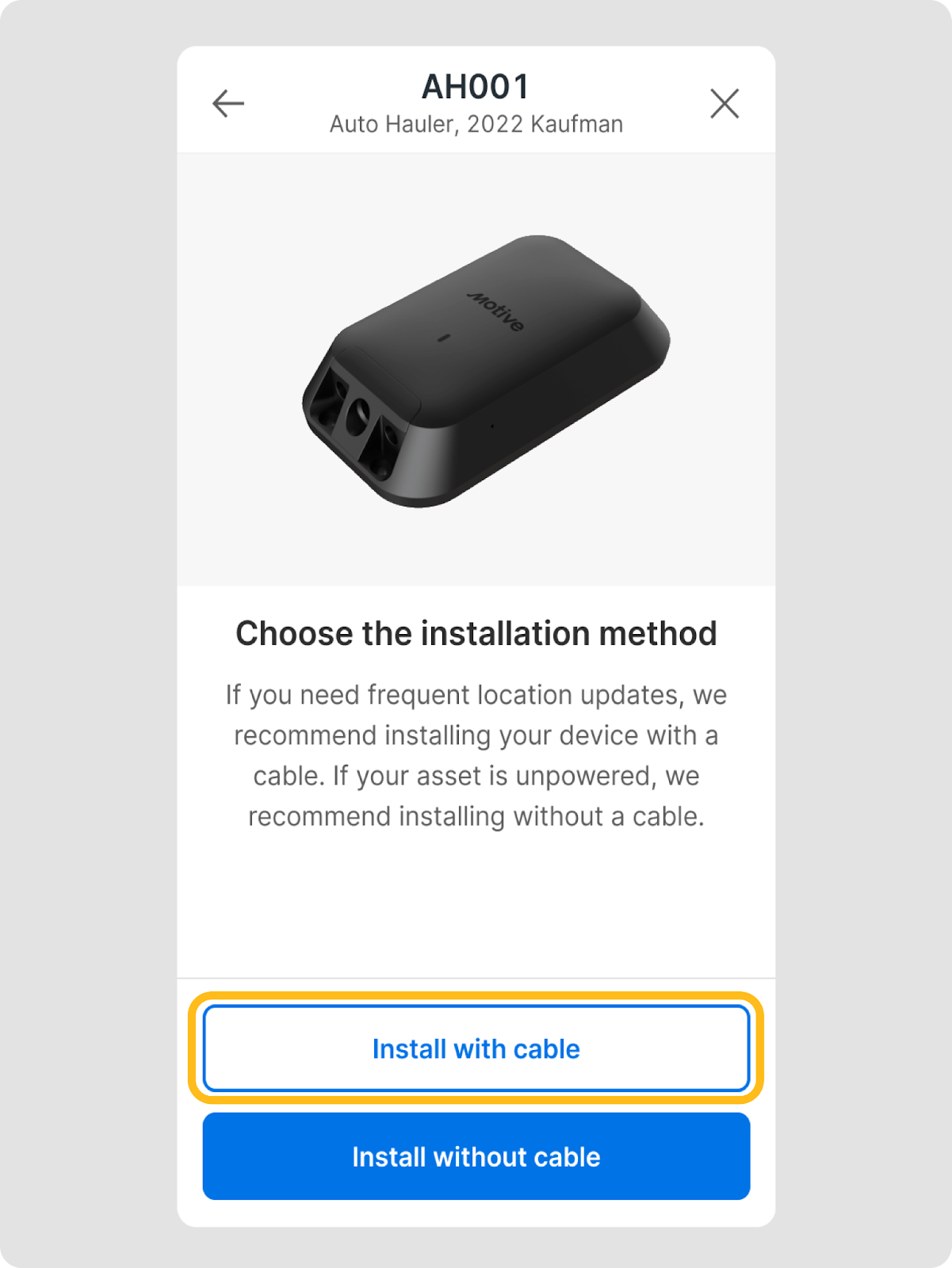

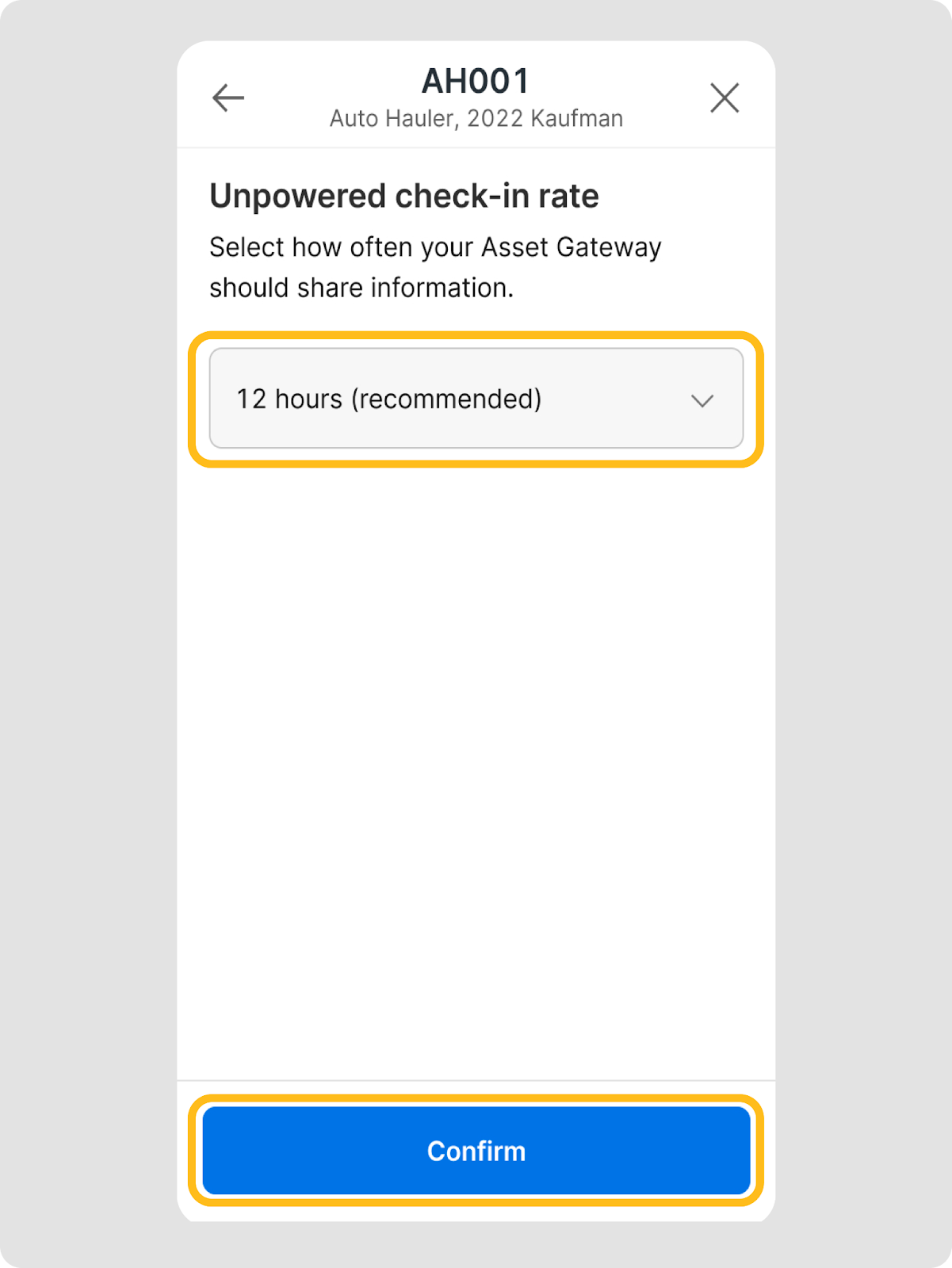

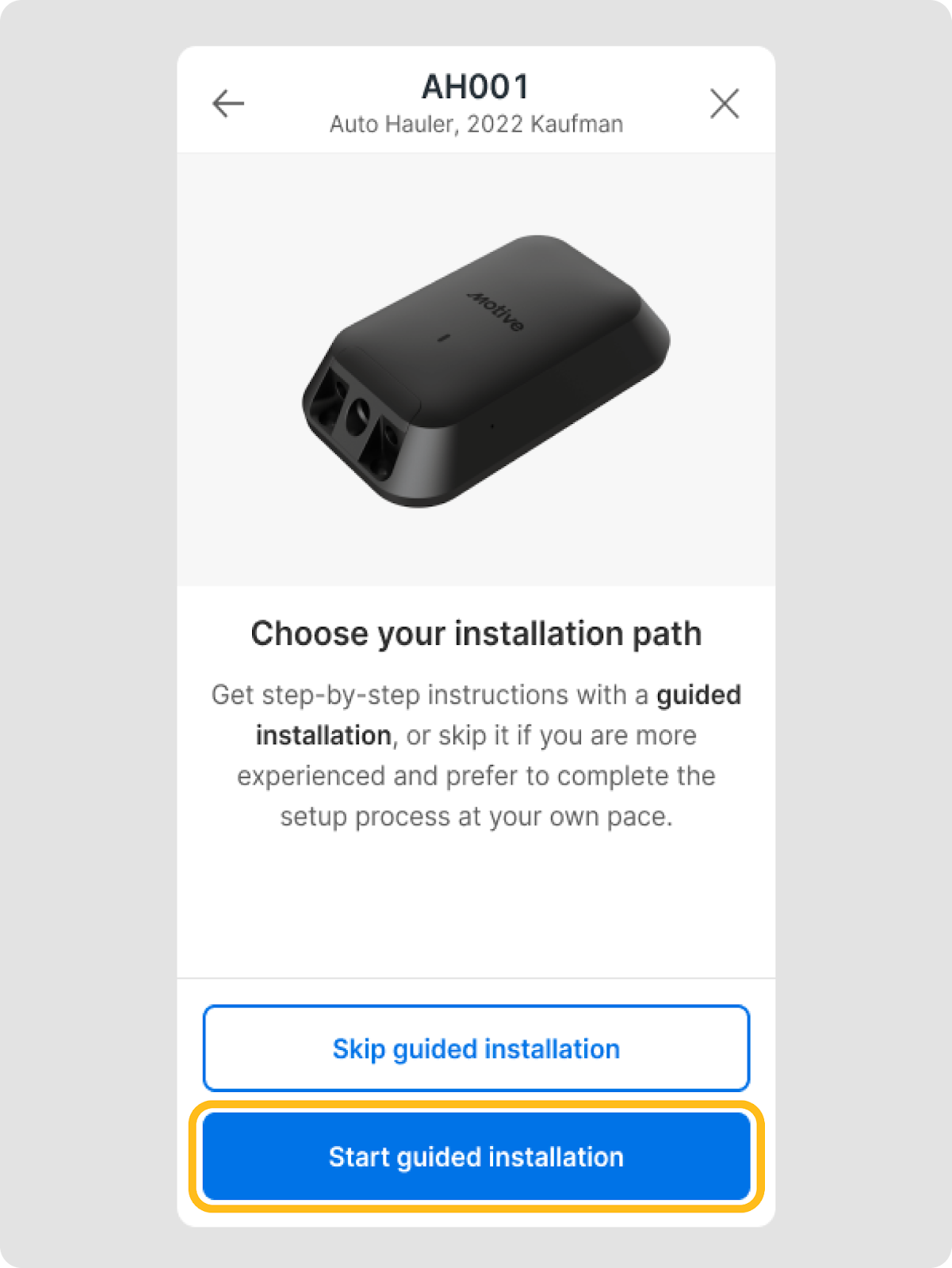

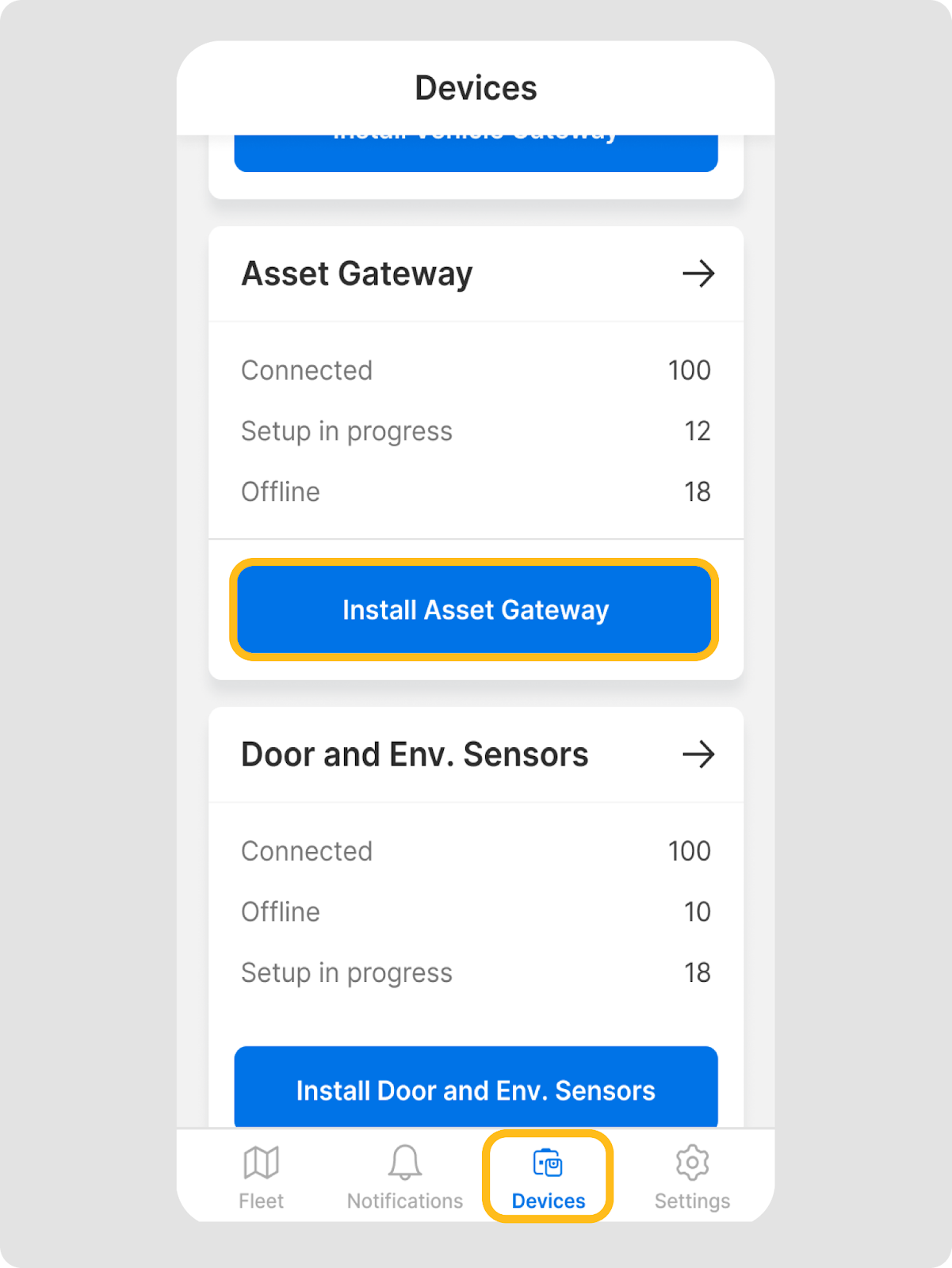

Assigning the Asset Gateway Mini

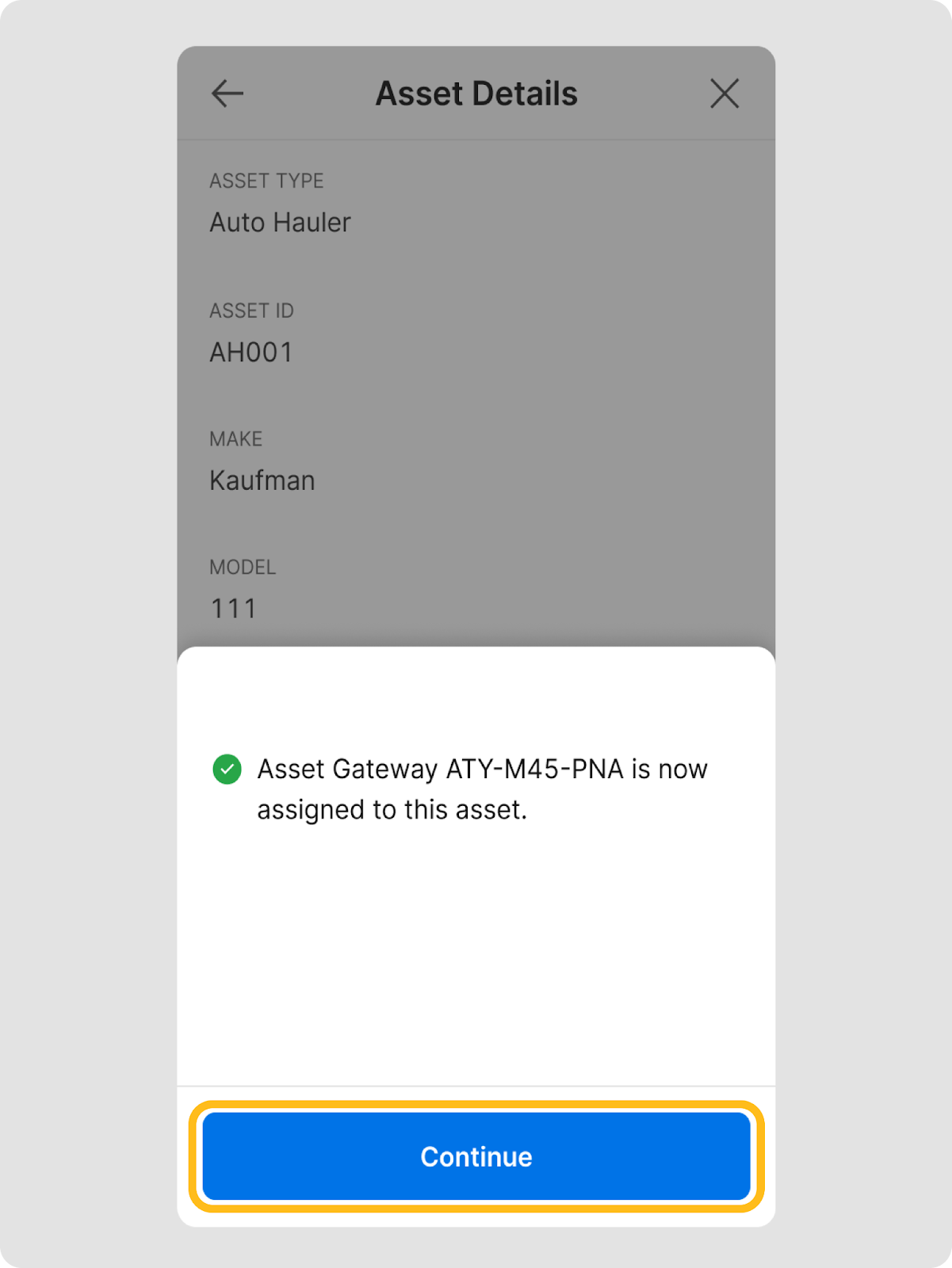

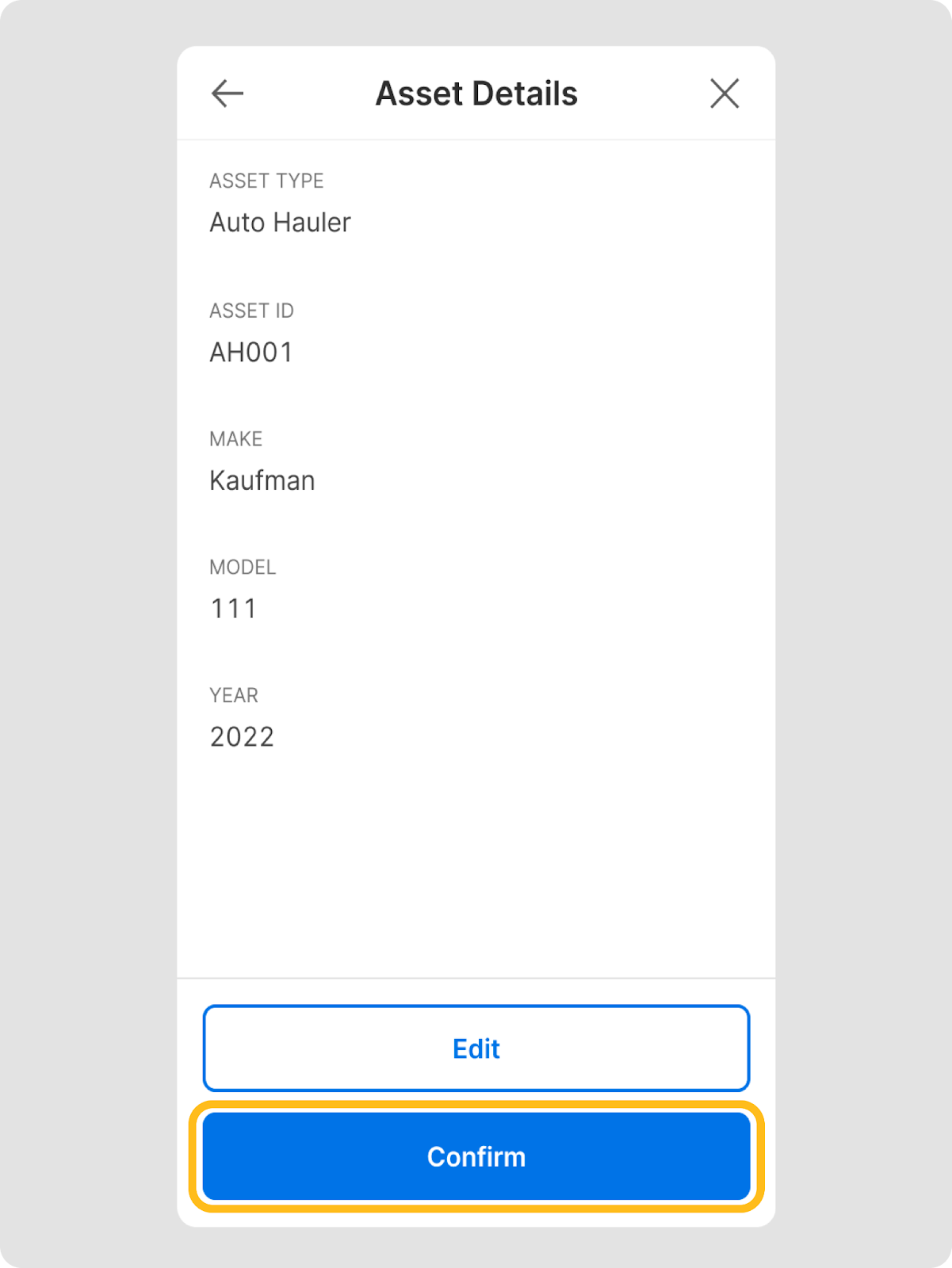

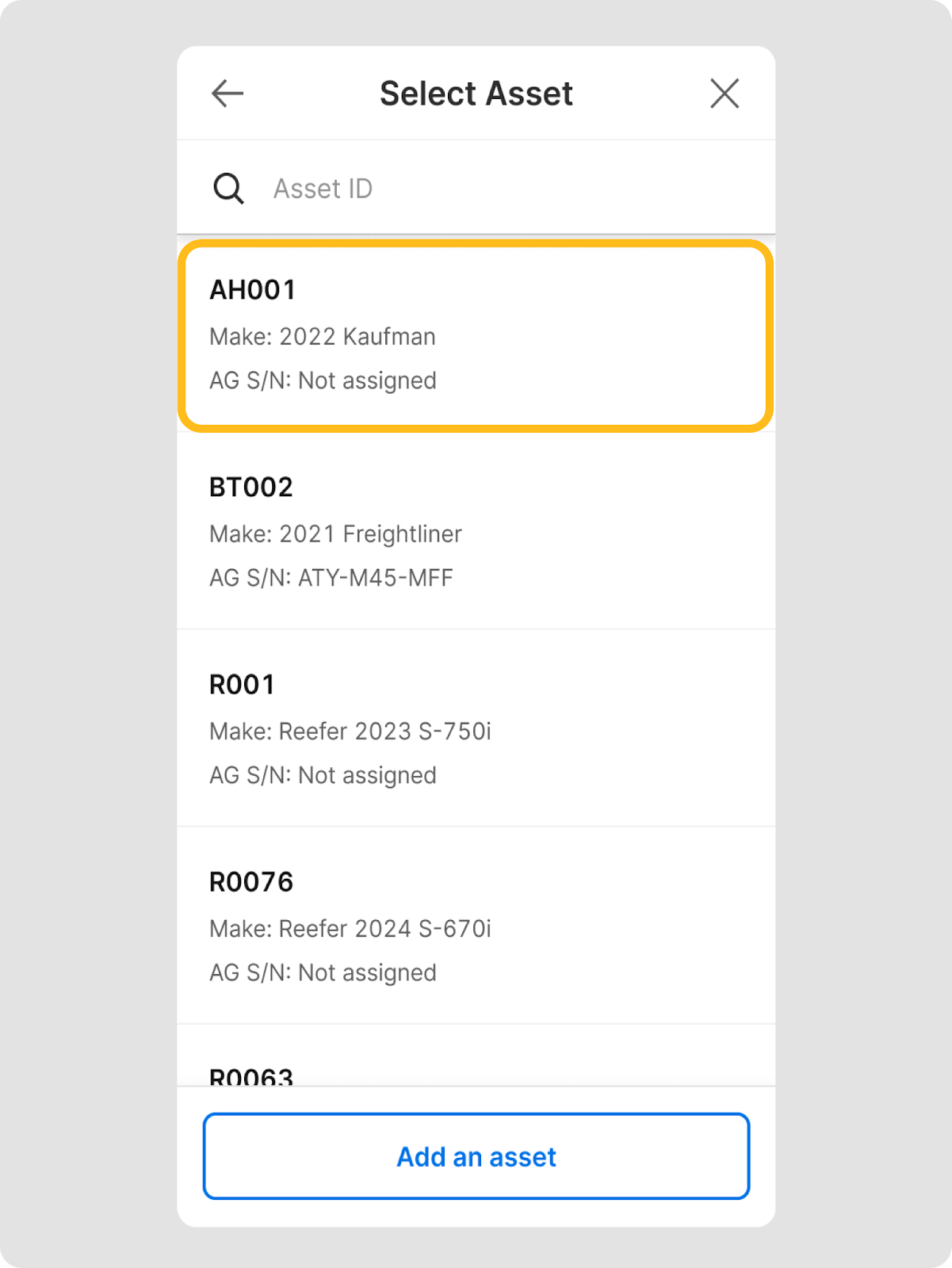

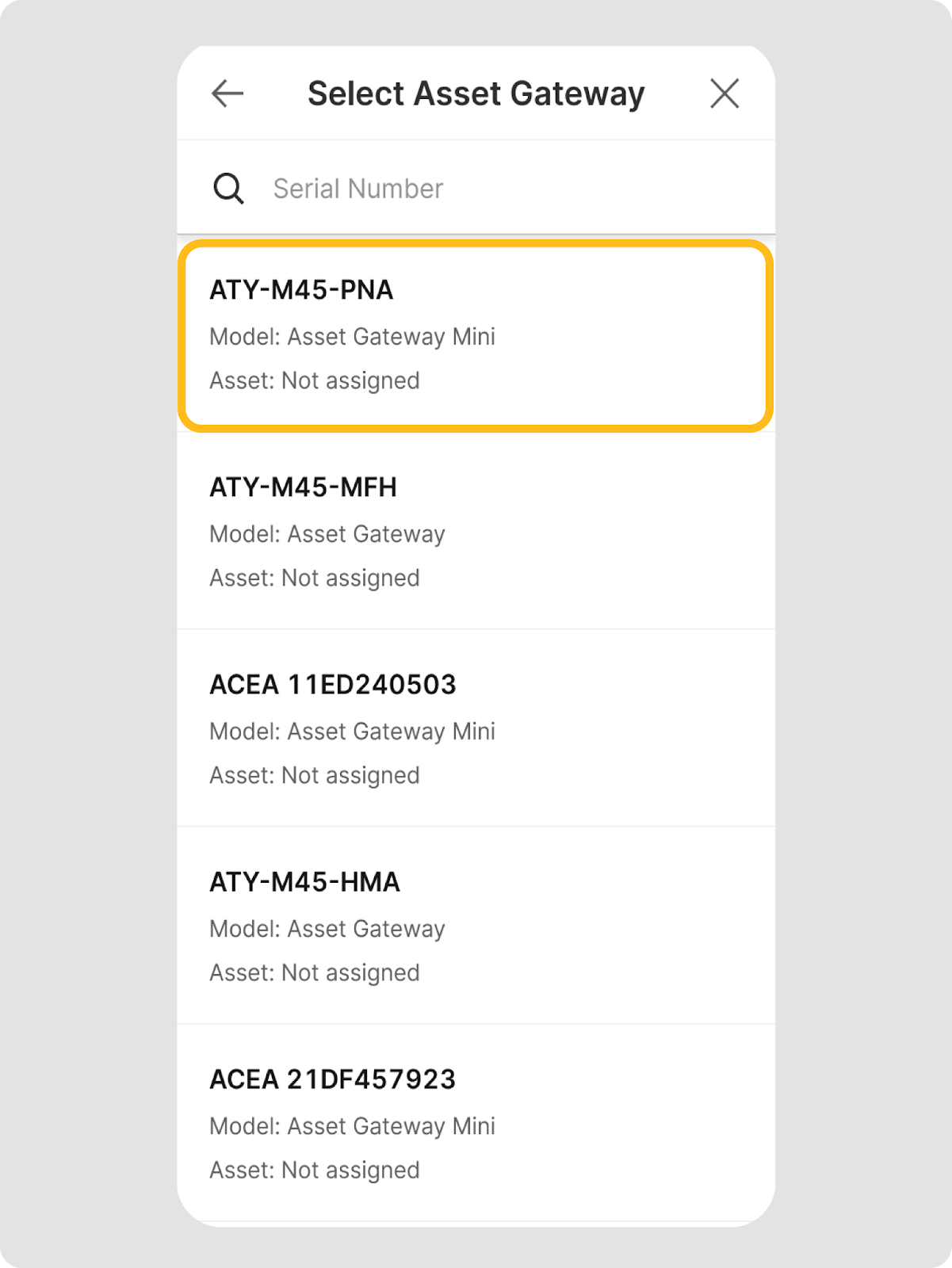

Create an asset profile and assign the Asset Gateway on the Fleet Dashboard. The device serial number is located on the label on the front of the device or the craft box.
Activating the Asset Gateway Mini (Cable Powered)

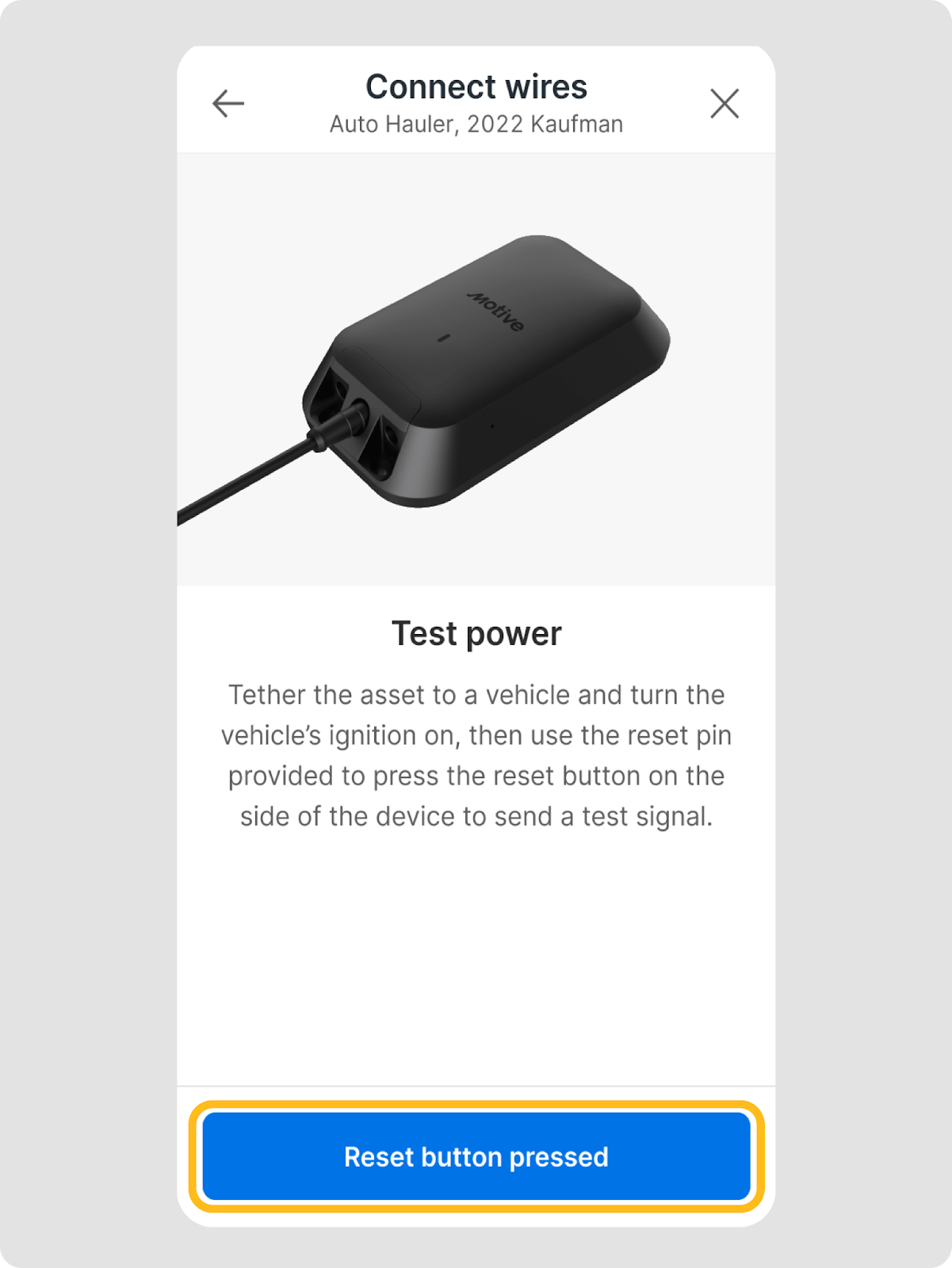

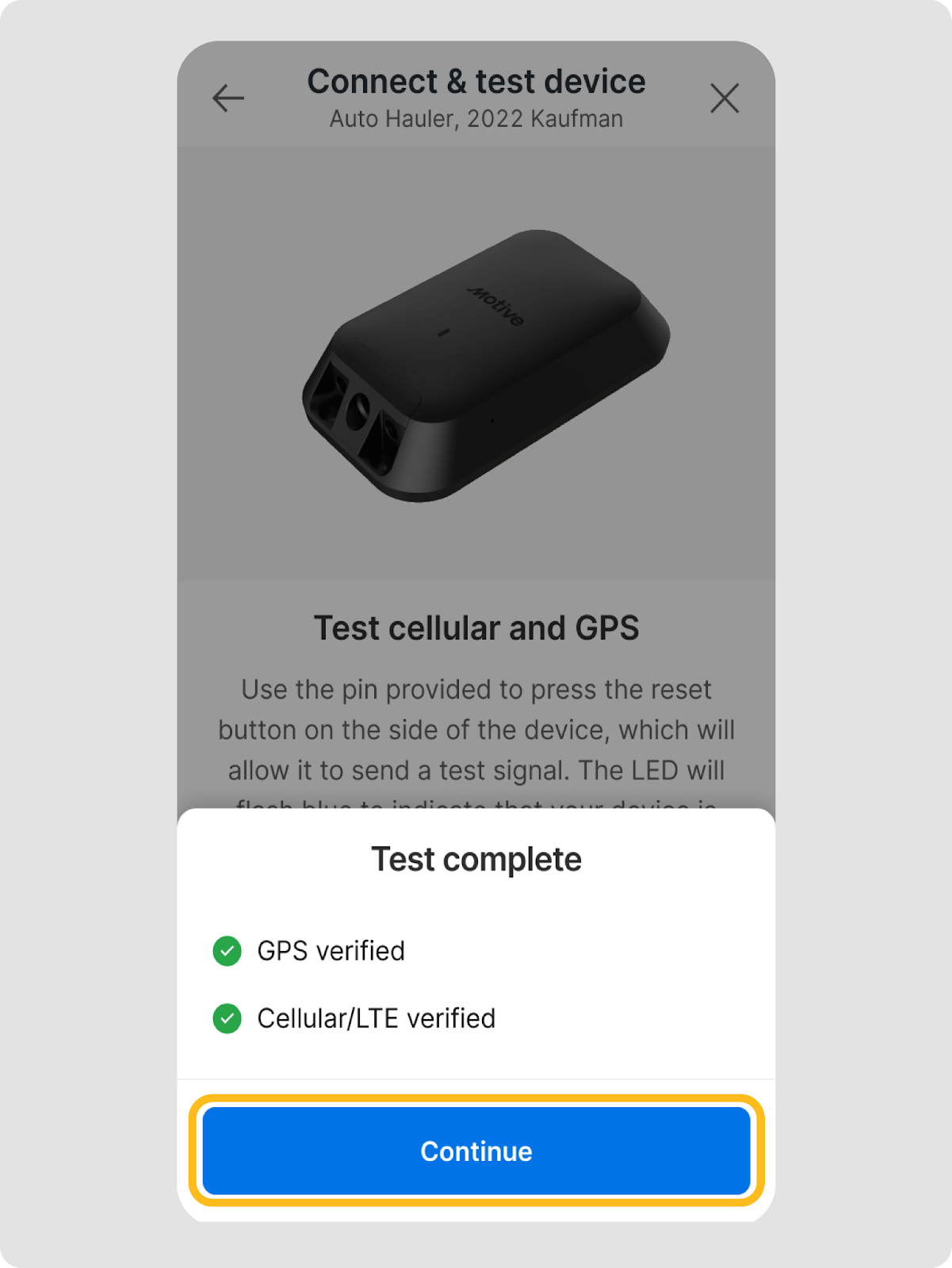

1. Activate the Asset Gateway by pressing the reset button on the side with the reset pin provided.
a. The LED will flash Blue, indicating the device is now turned on.
b. Take down the serial number of the device (if you haven’t assigned the device yet).

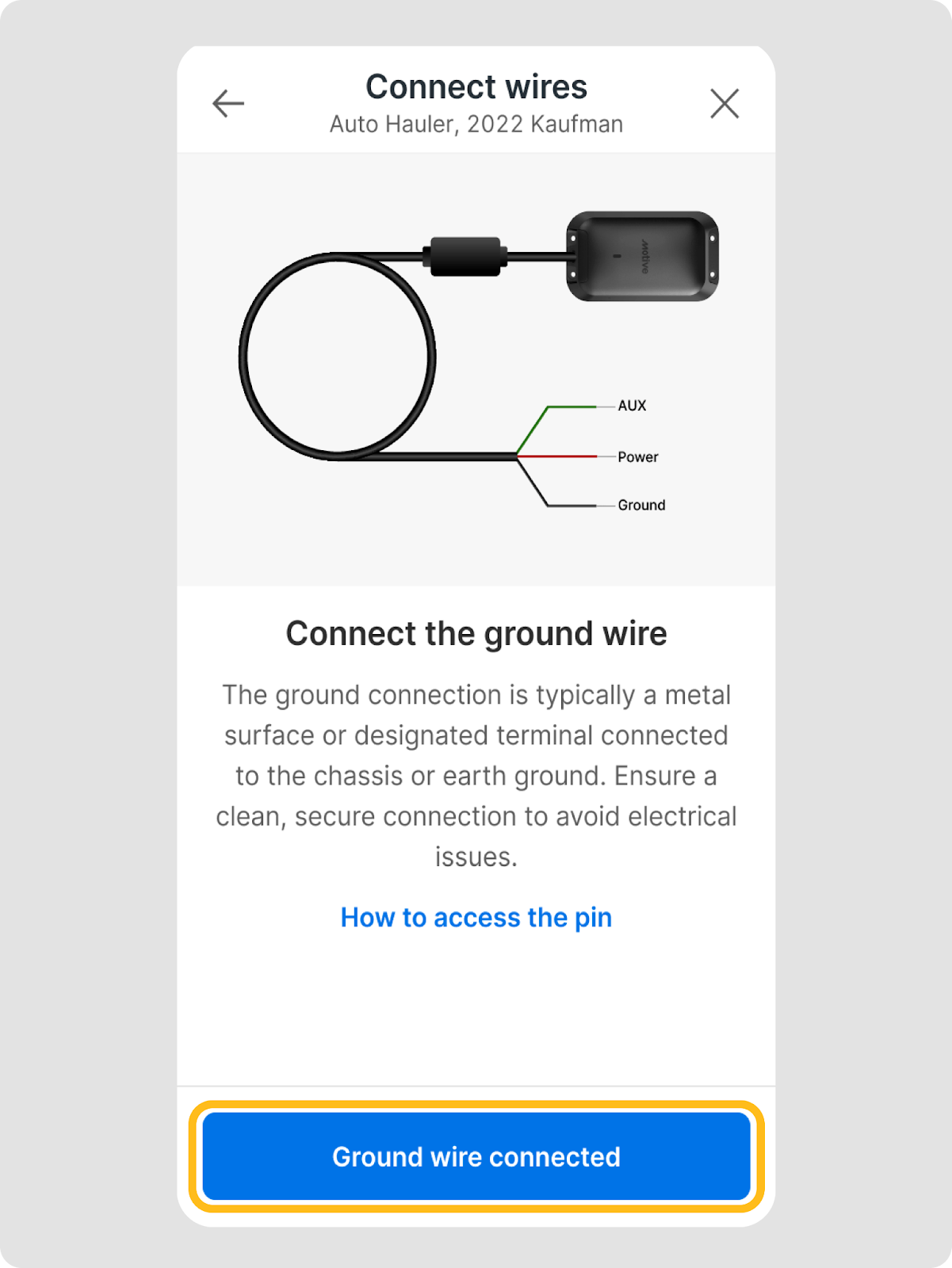

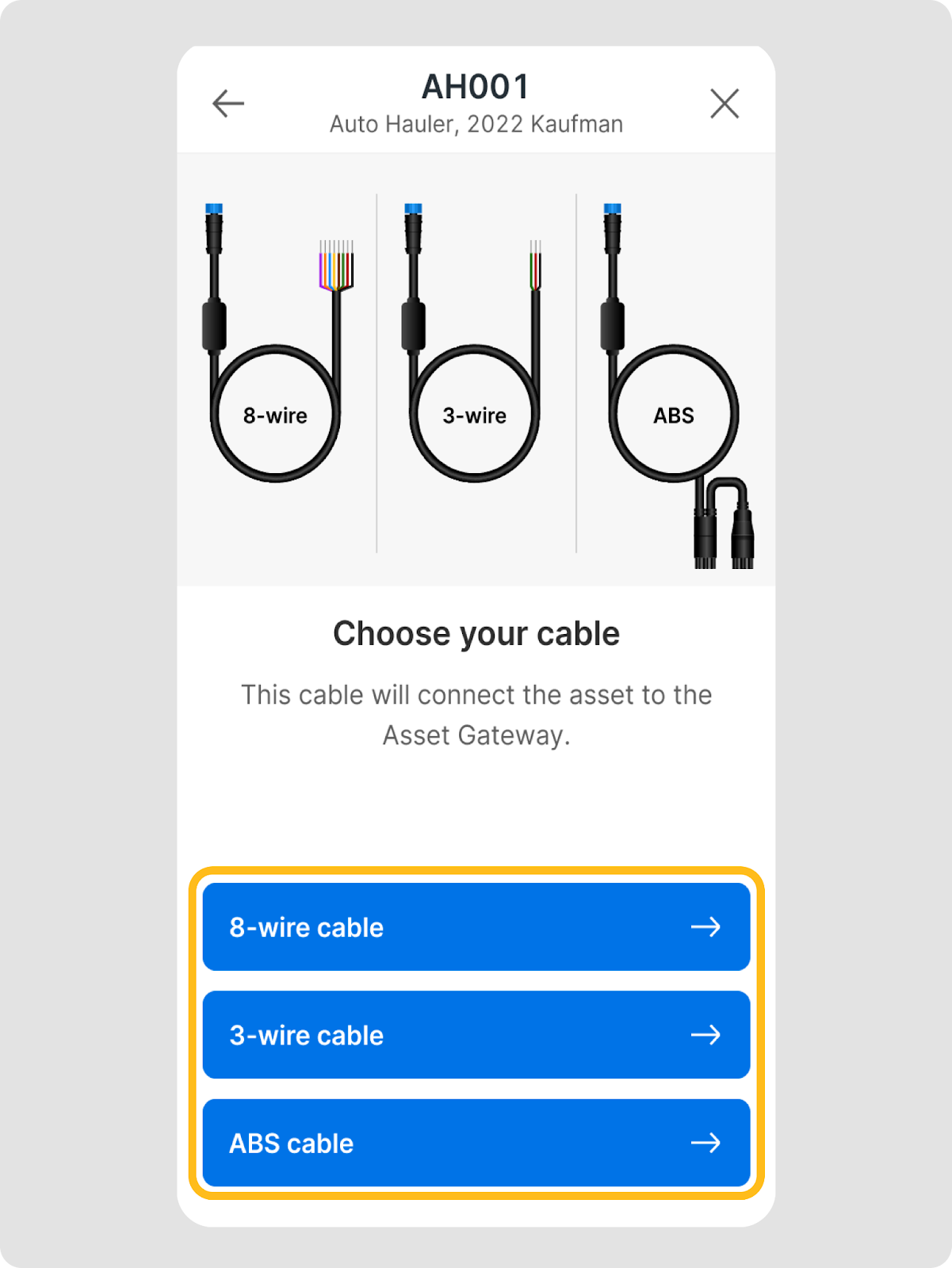

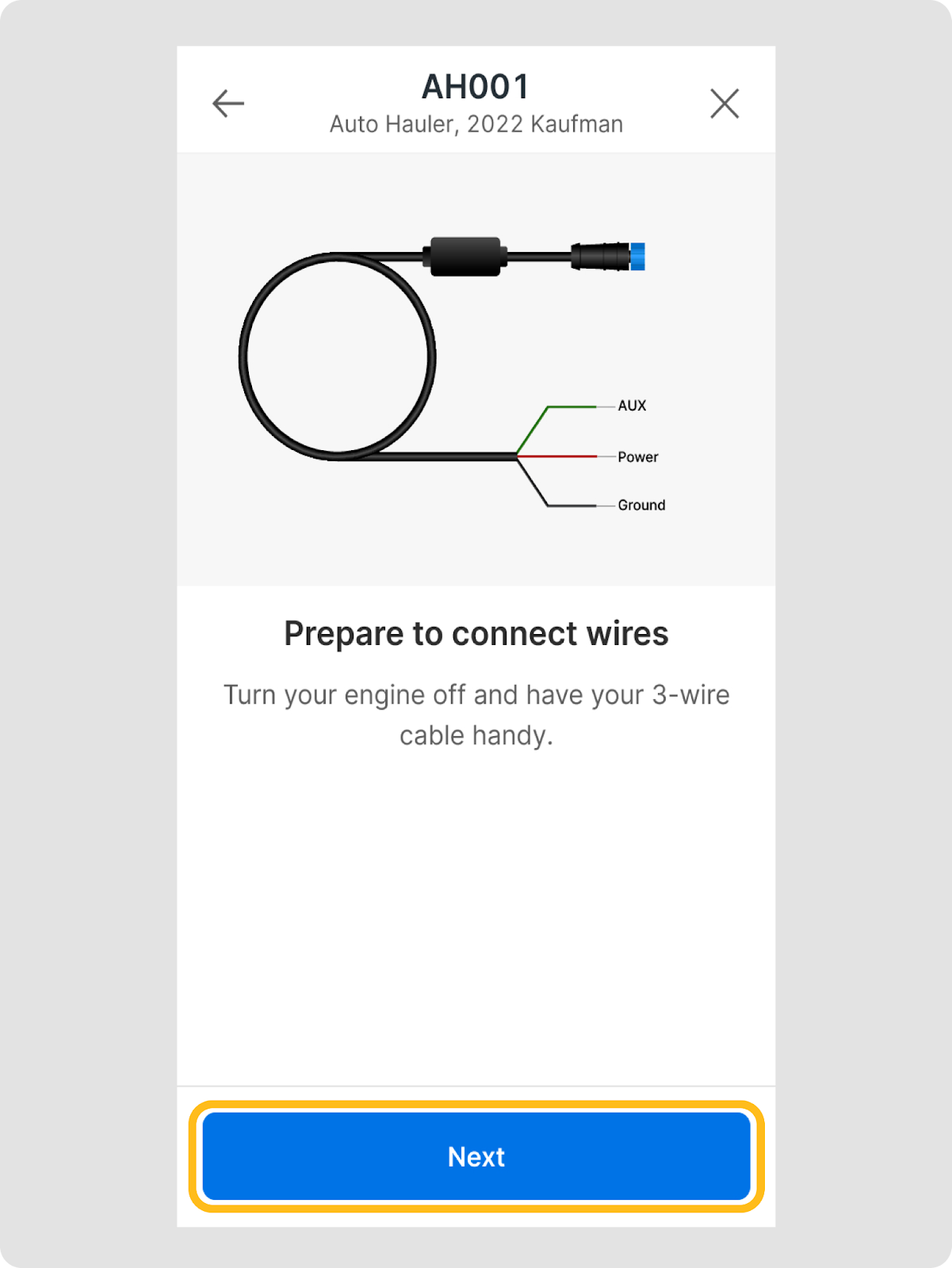

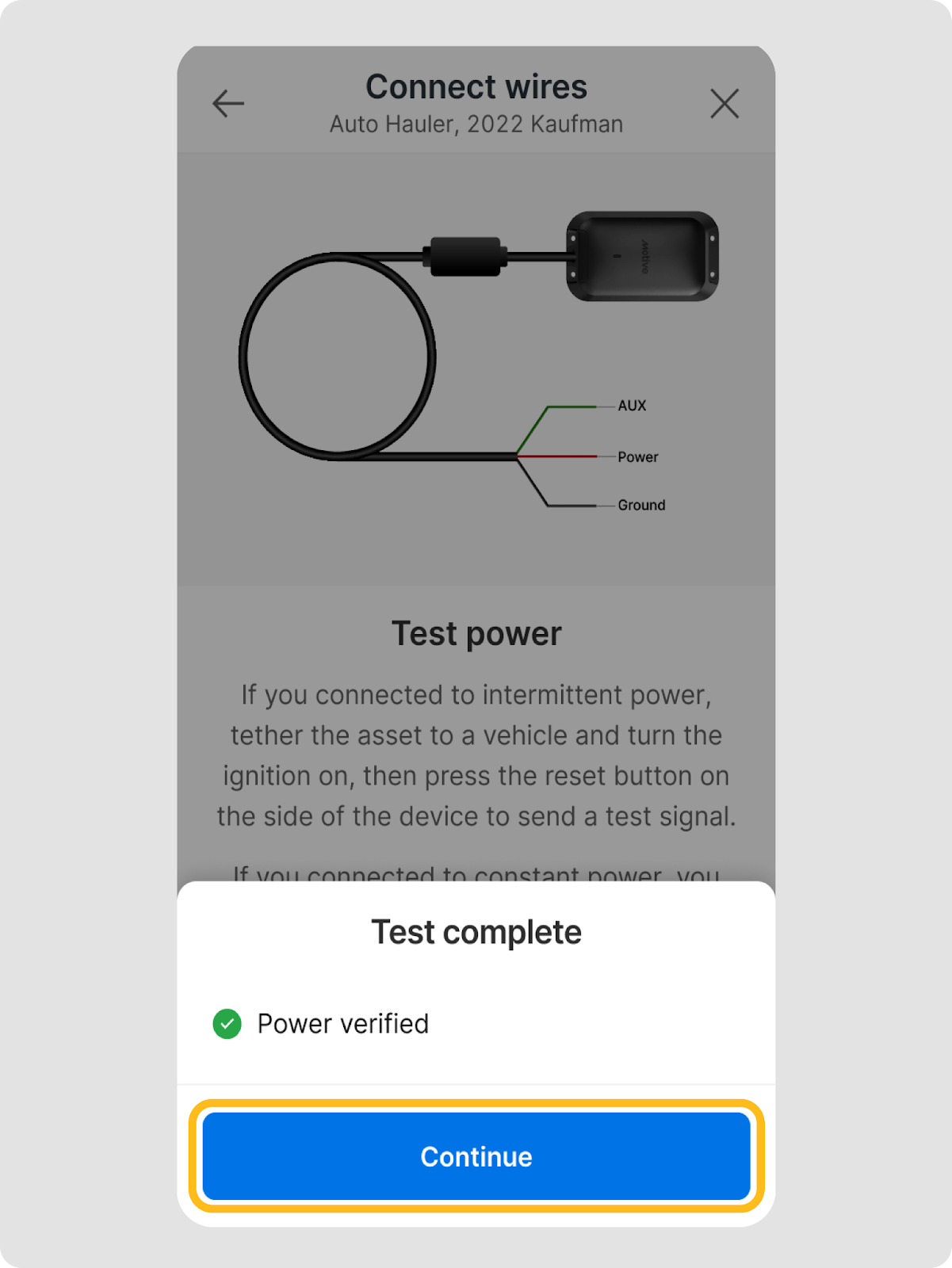

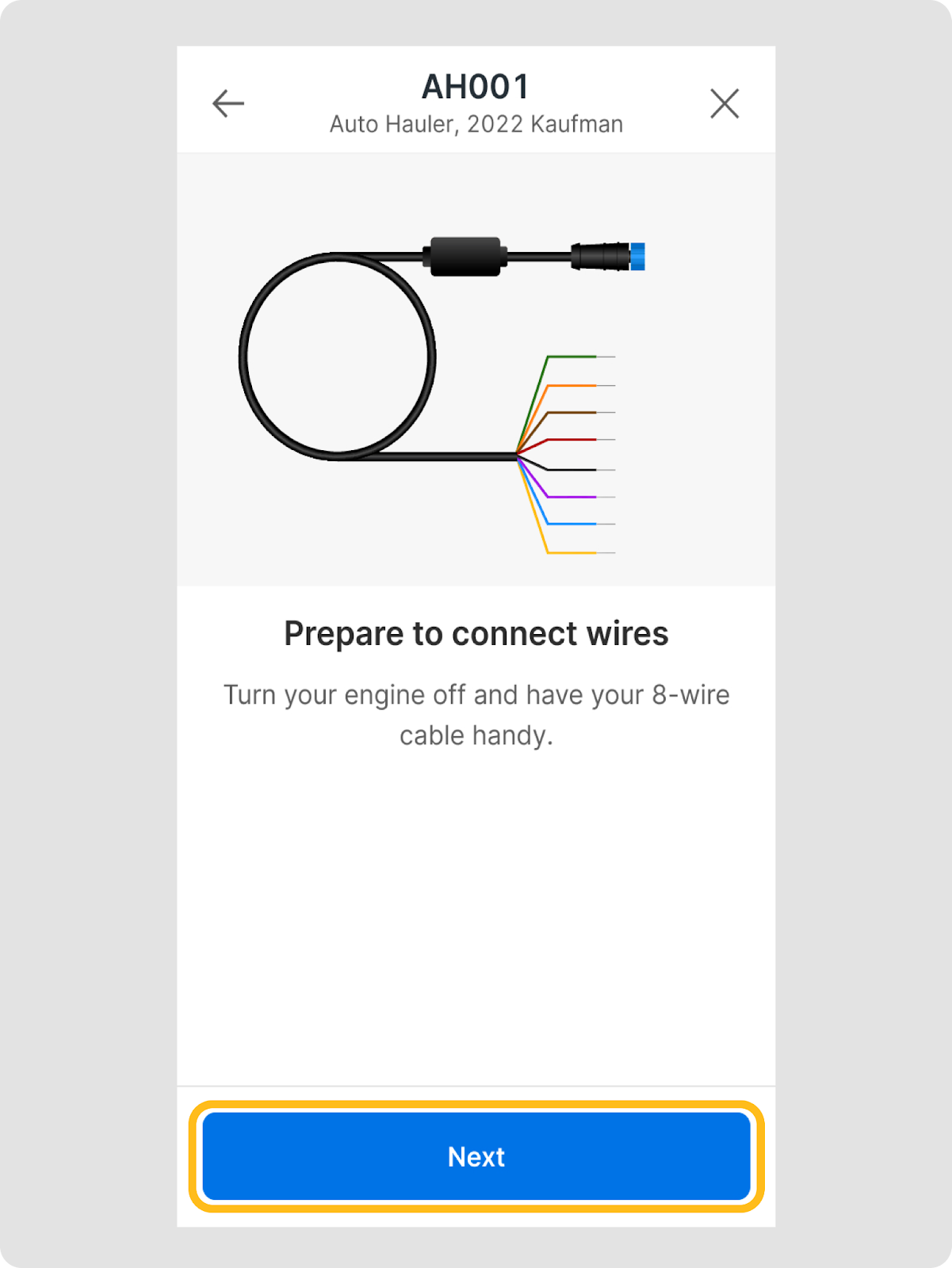

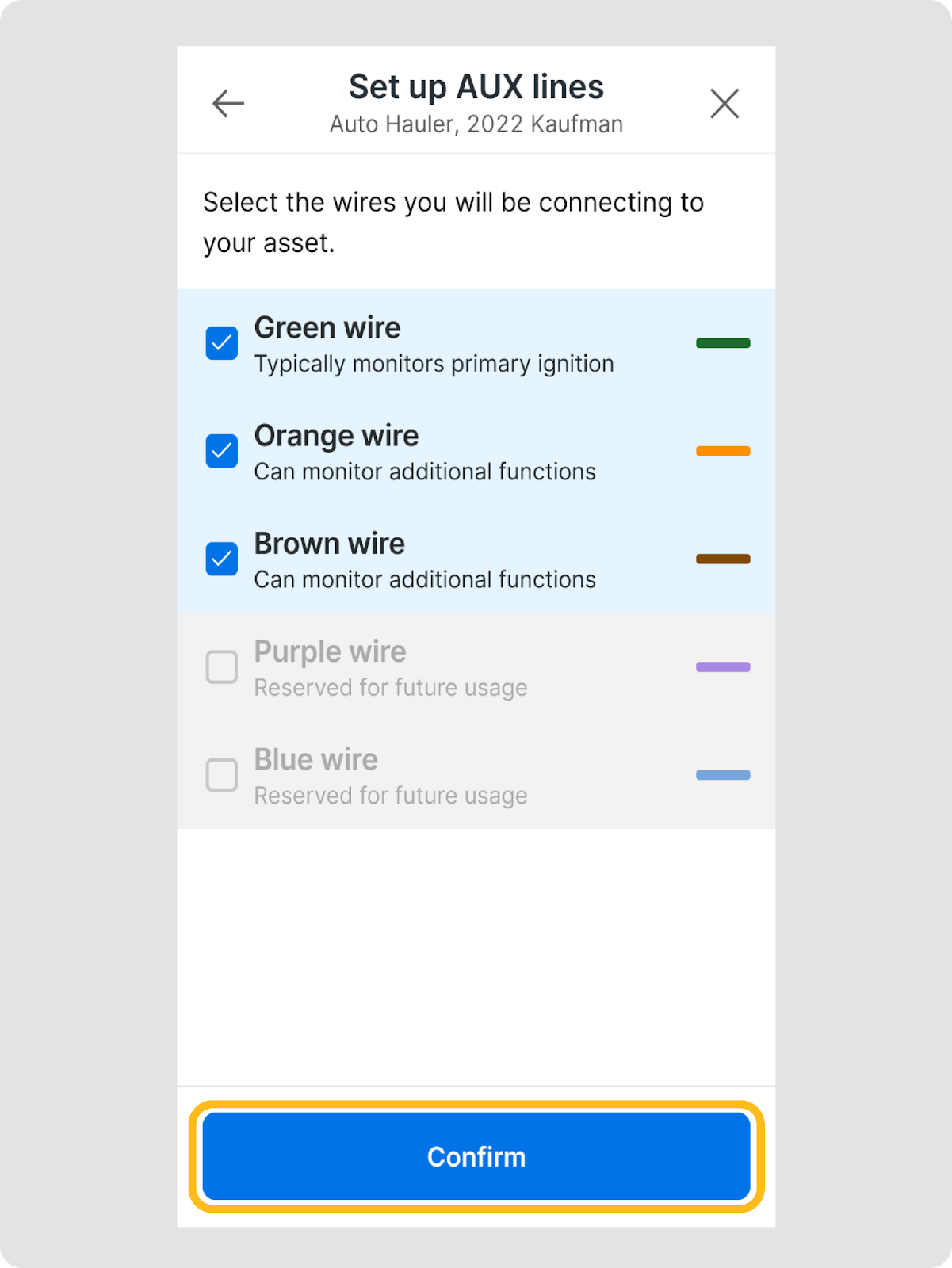

2. Connect the 3 wires of the Motive cable to an external power, ground, and ignition wire. (Please do not remove the black plastic housing attached to the wire = voltage regulator). The wire can be shortened up to that point.
a. Cable connection details (at vehicle end of cable):
RED (POWER) means “+” of vehicle power
BLACK(GND) means “-“ of vehicle power, or vehicle ground

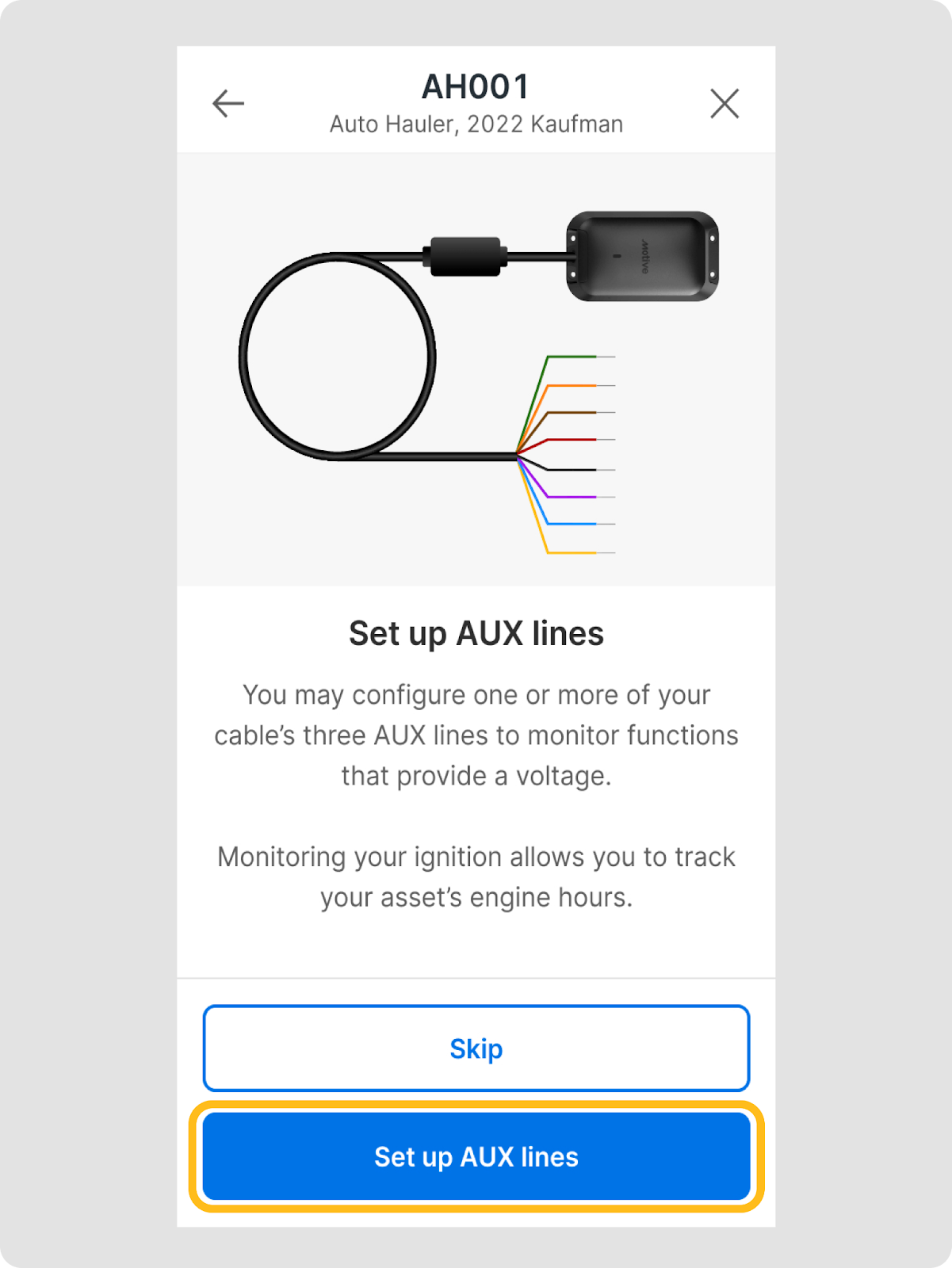

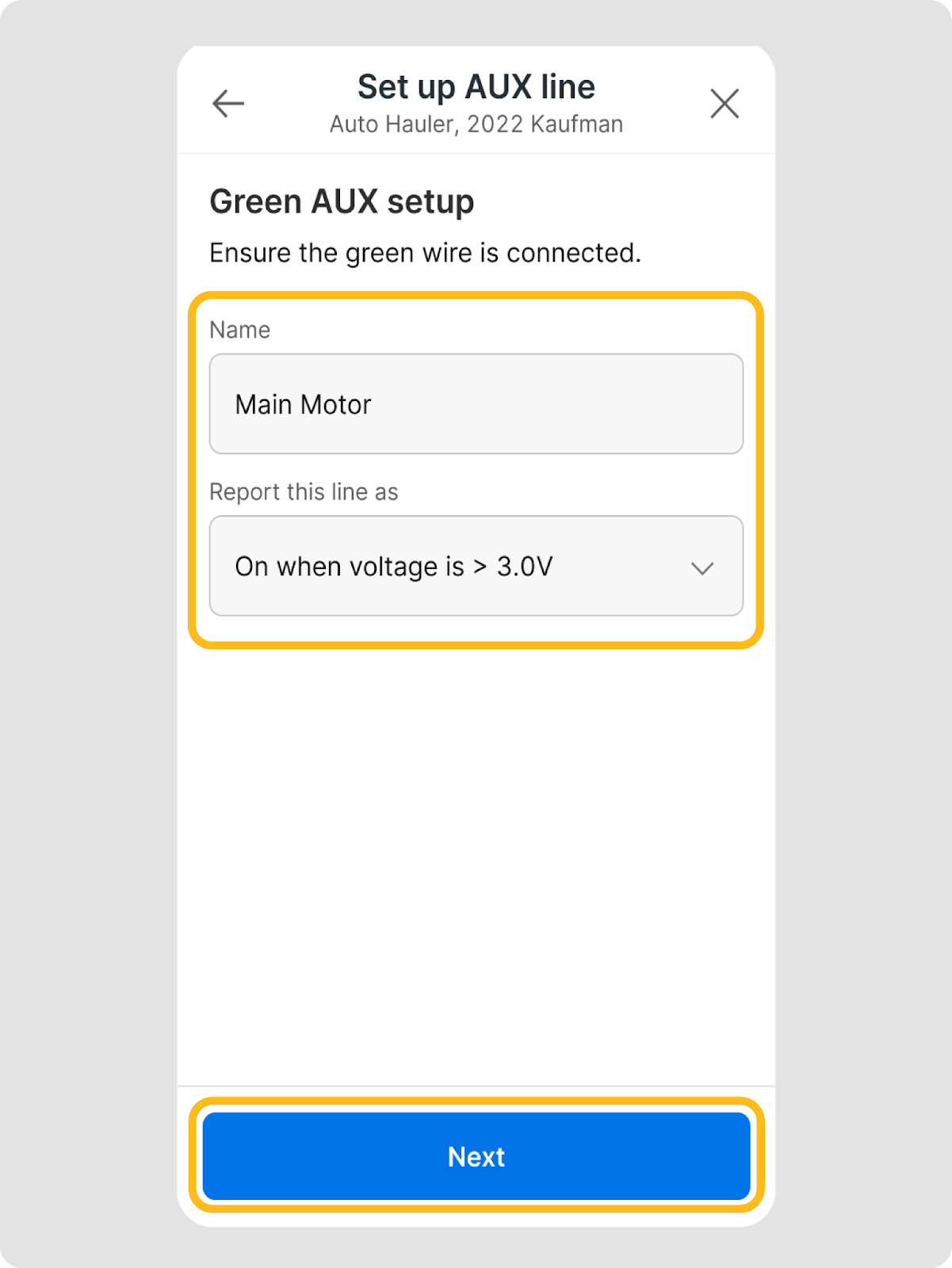

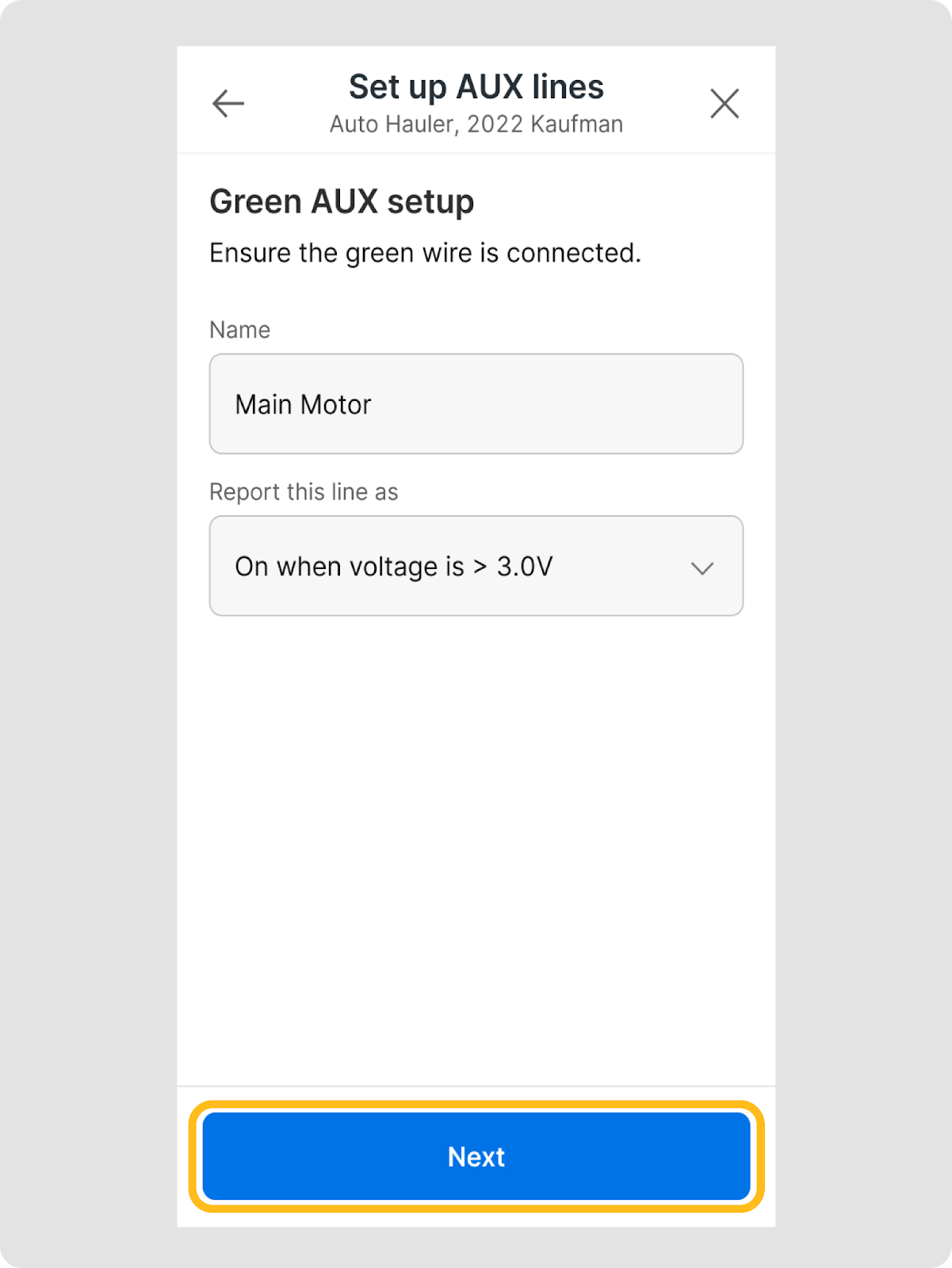

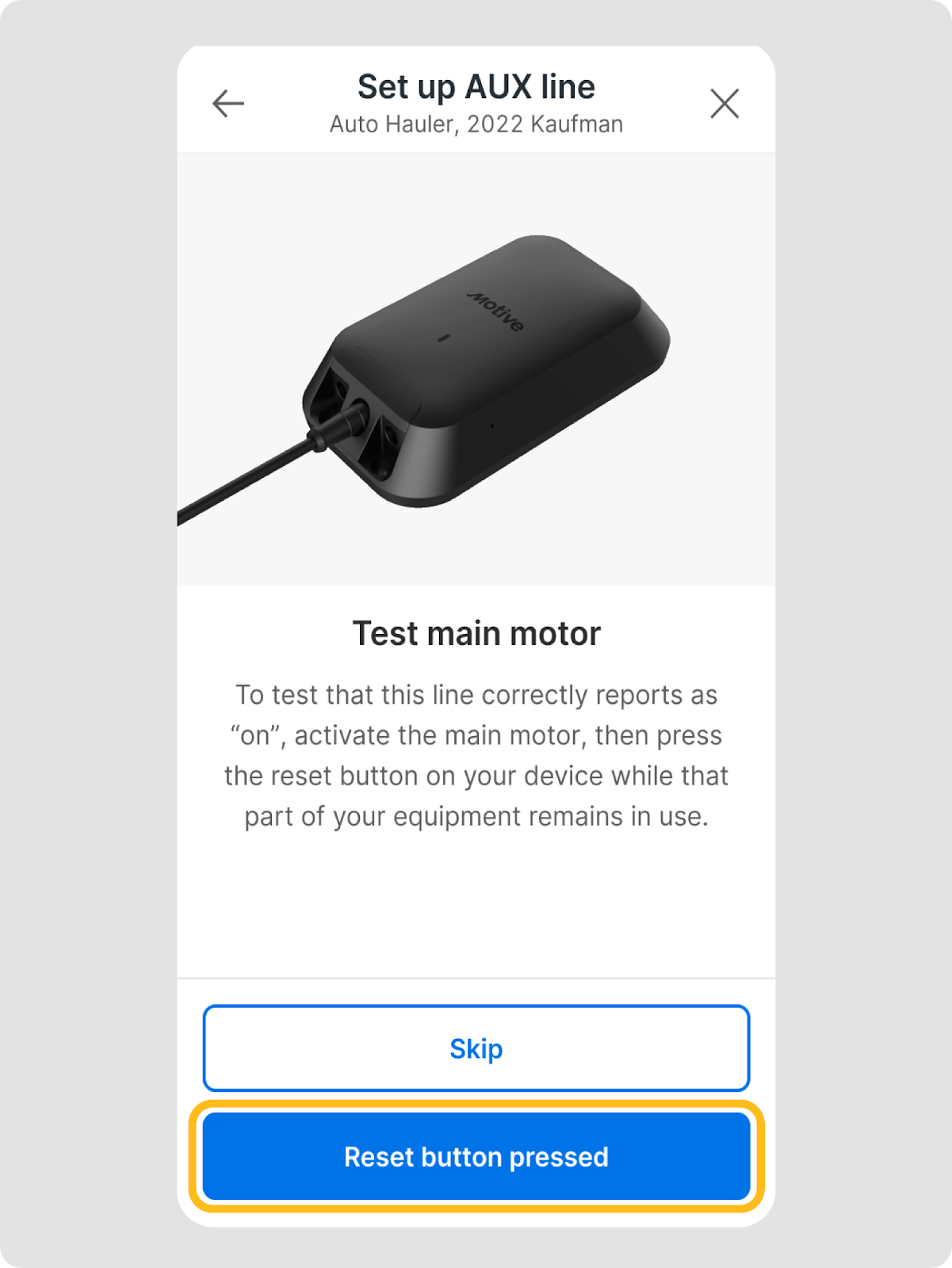

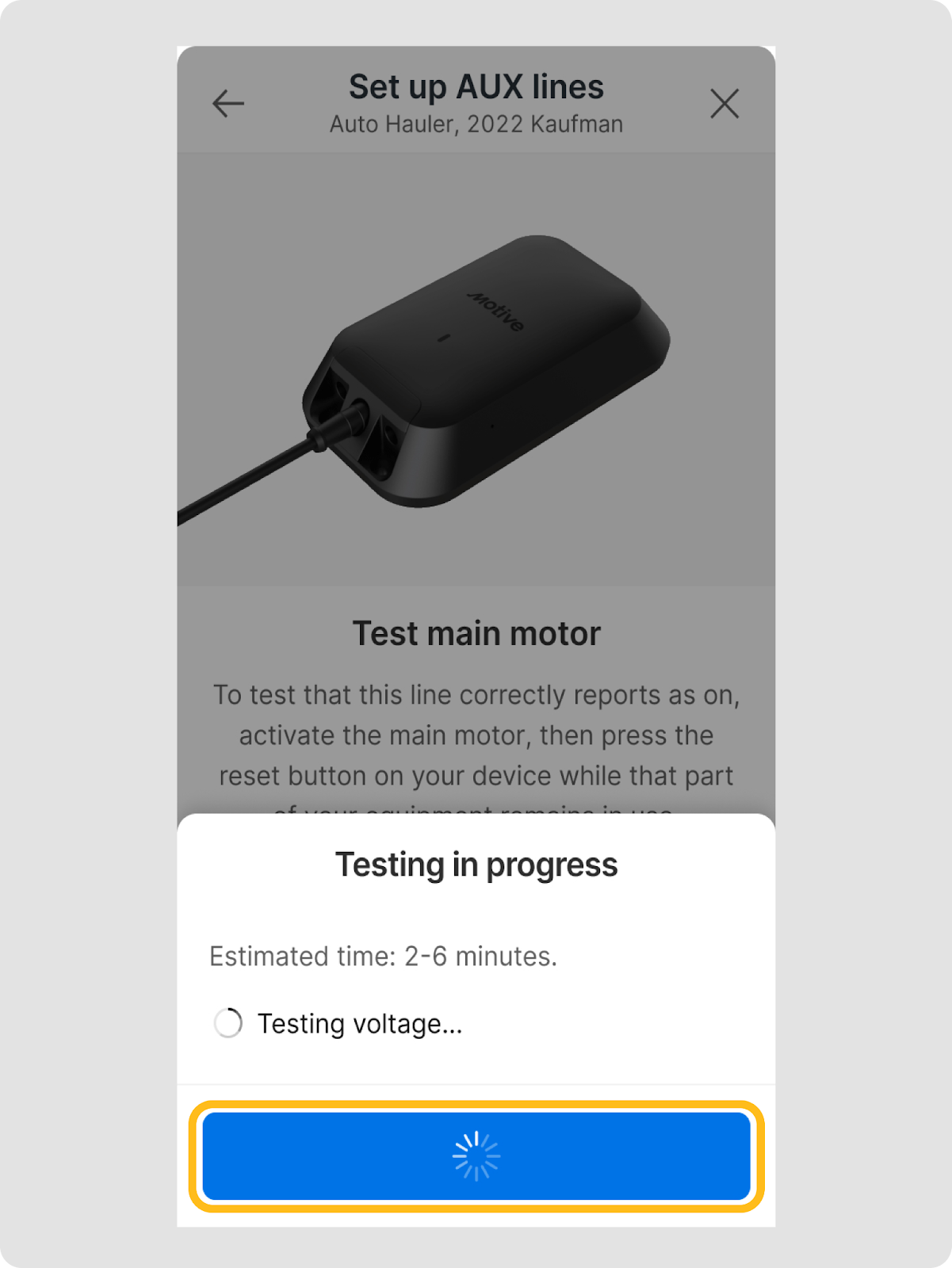

Green is a logic voltage indicating the ignition status of the vehicle. Anything below 1V is interpreted as "off" and above 3.3V is "on". Maximum current draw is 1mA
|
Note: Allowed Voltage Tolerances for power supplied to AG Mini via cable: Following SAE-J1455 tolerances. 9-16V for 12V and 18 - 32V for 24V Rated current for same: Maximum current is 300mA @ 9V and 100mA @ 32V |

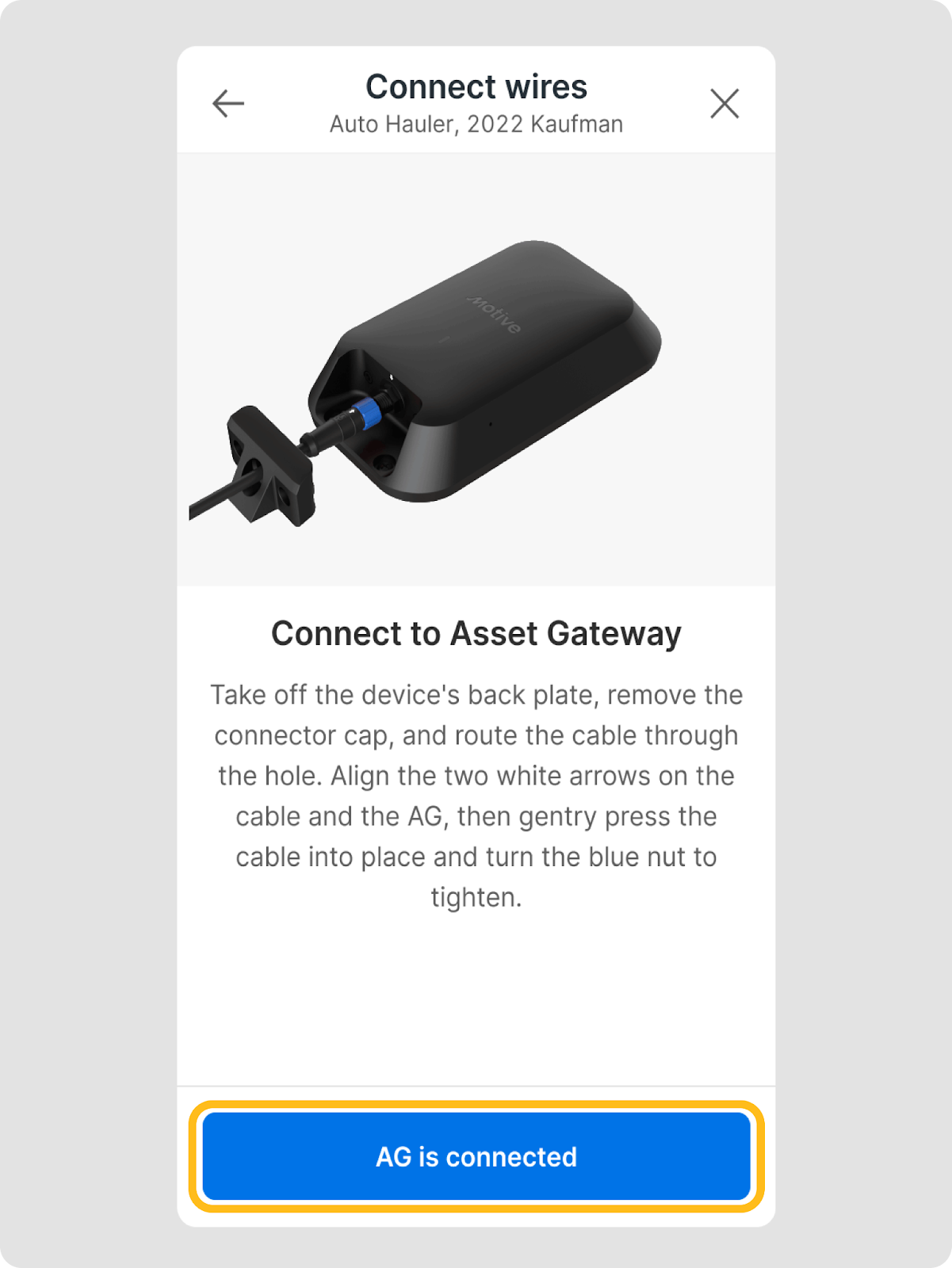

3. Connect the cable connector to the Asset Gateway Mini by unfastening the back plate, and routing the cable through the hole.
a. Align the two white arrows on the cable and the Asset Gateway Mini, and gently press the cable into the connector.
b. Turn the blue nut to secure the cable to the device.
c. Refasten the back plate to the Asset Gateway Mini.

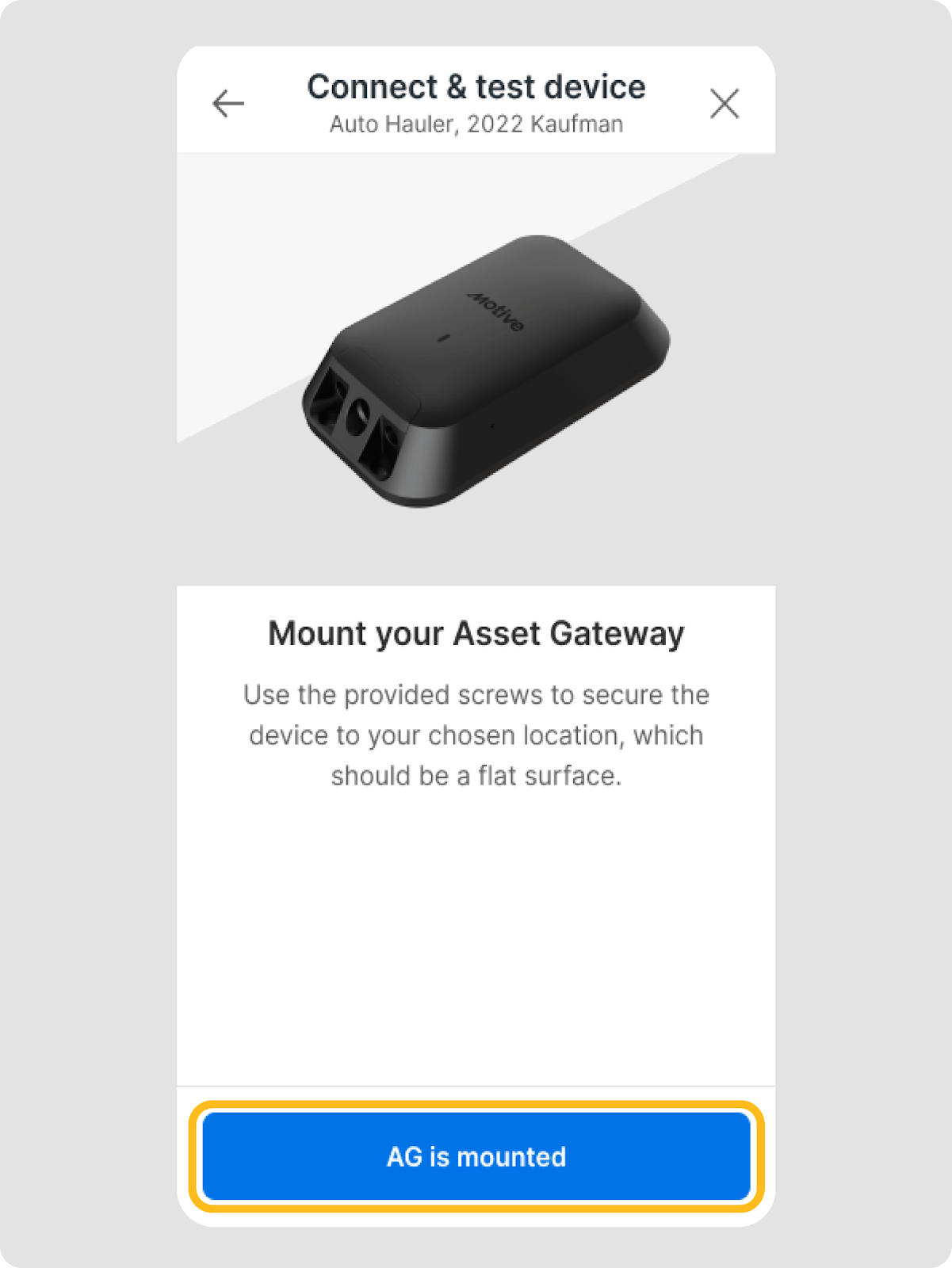

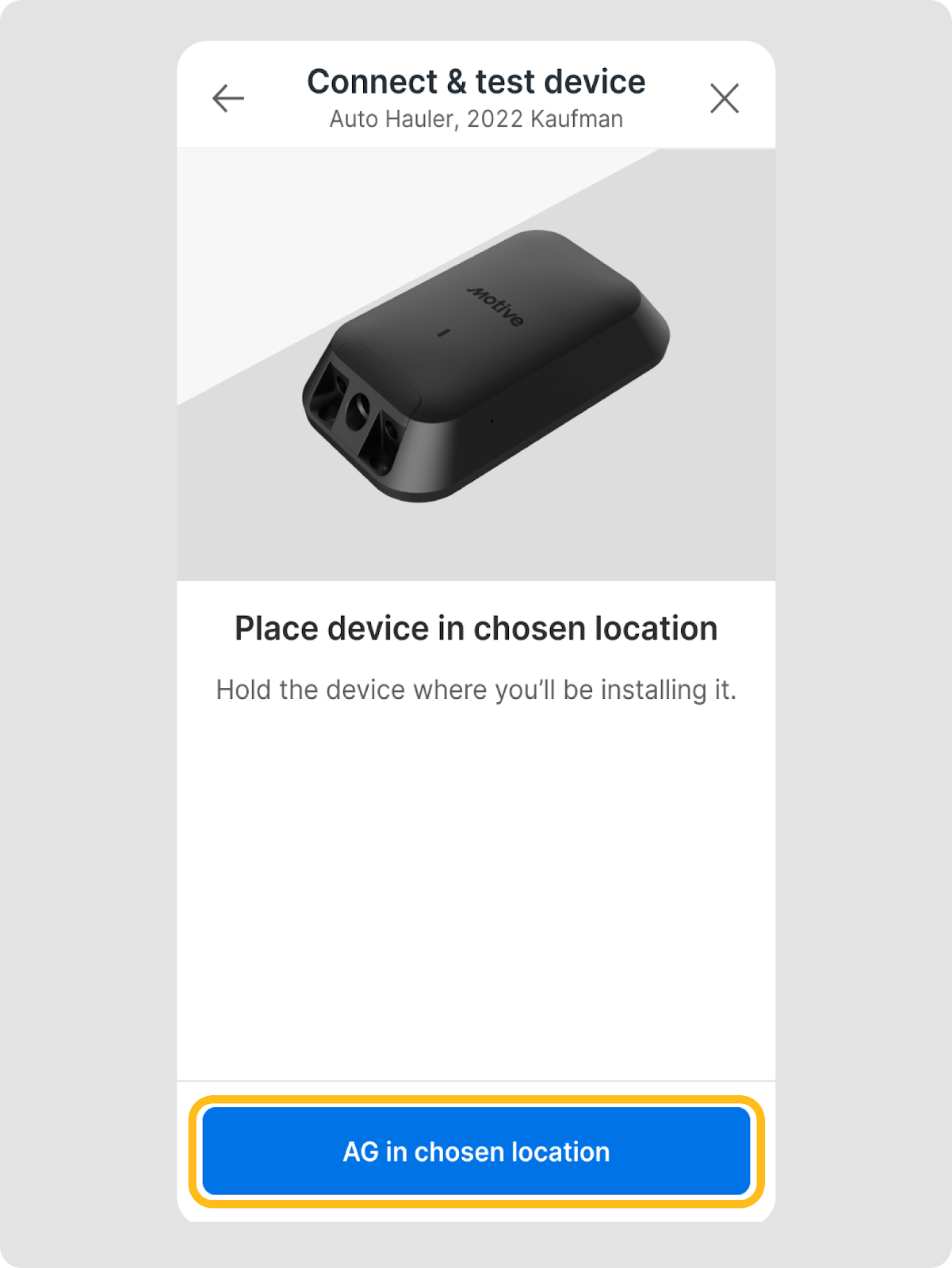

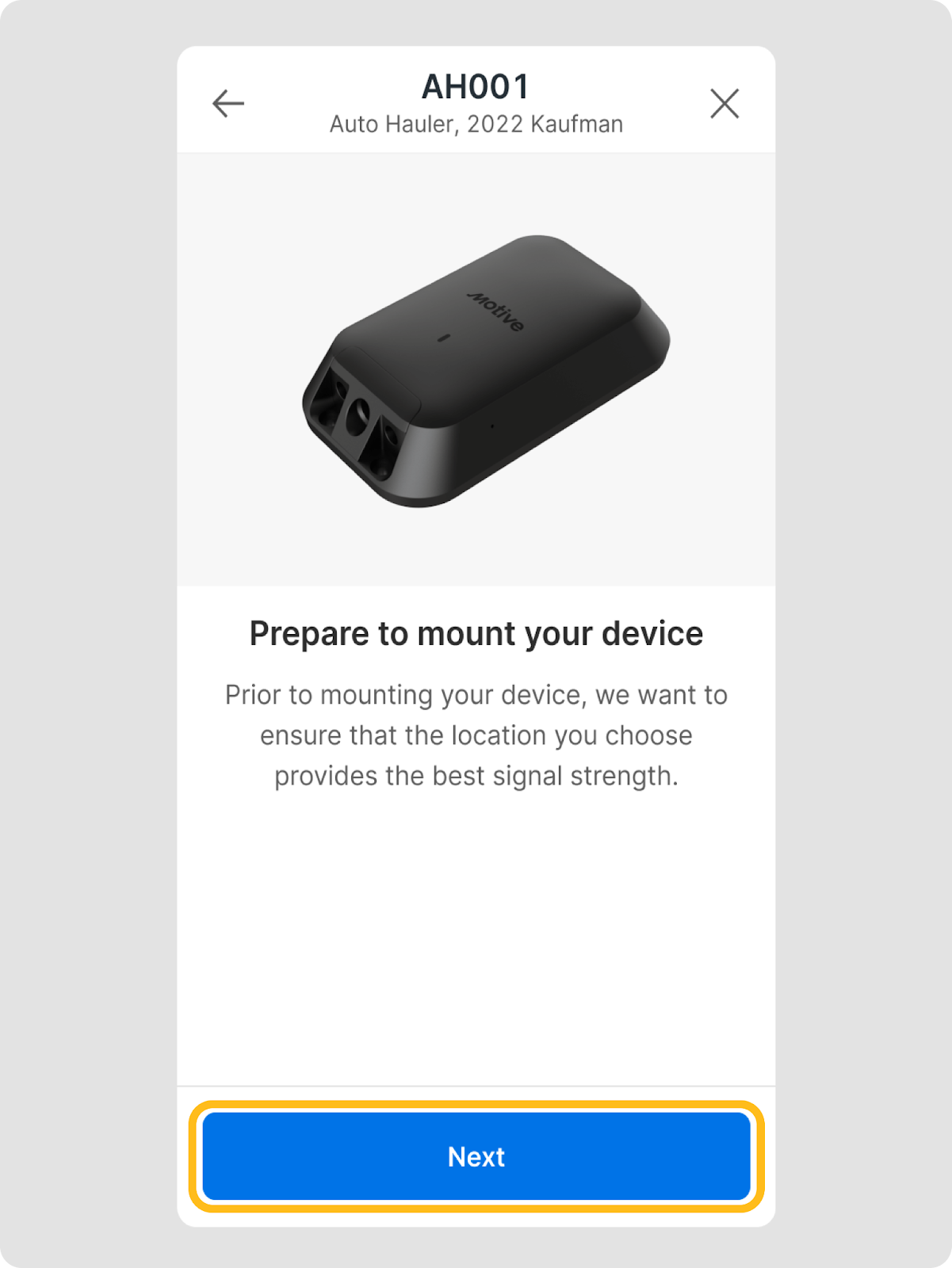

4. Mount and secure your Asset Gateway Mini.
a. Make sure that the surface is flat before mounting.
b. Have the Motive logo facing up for the best GPS performance.

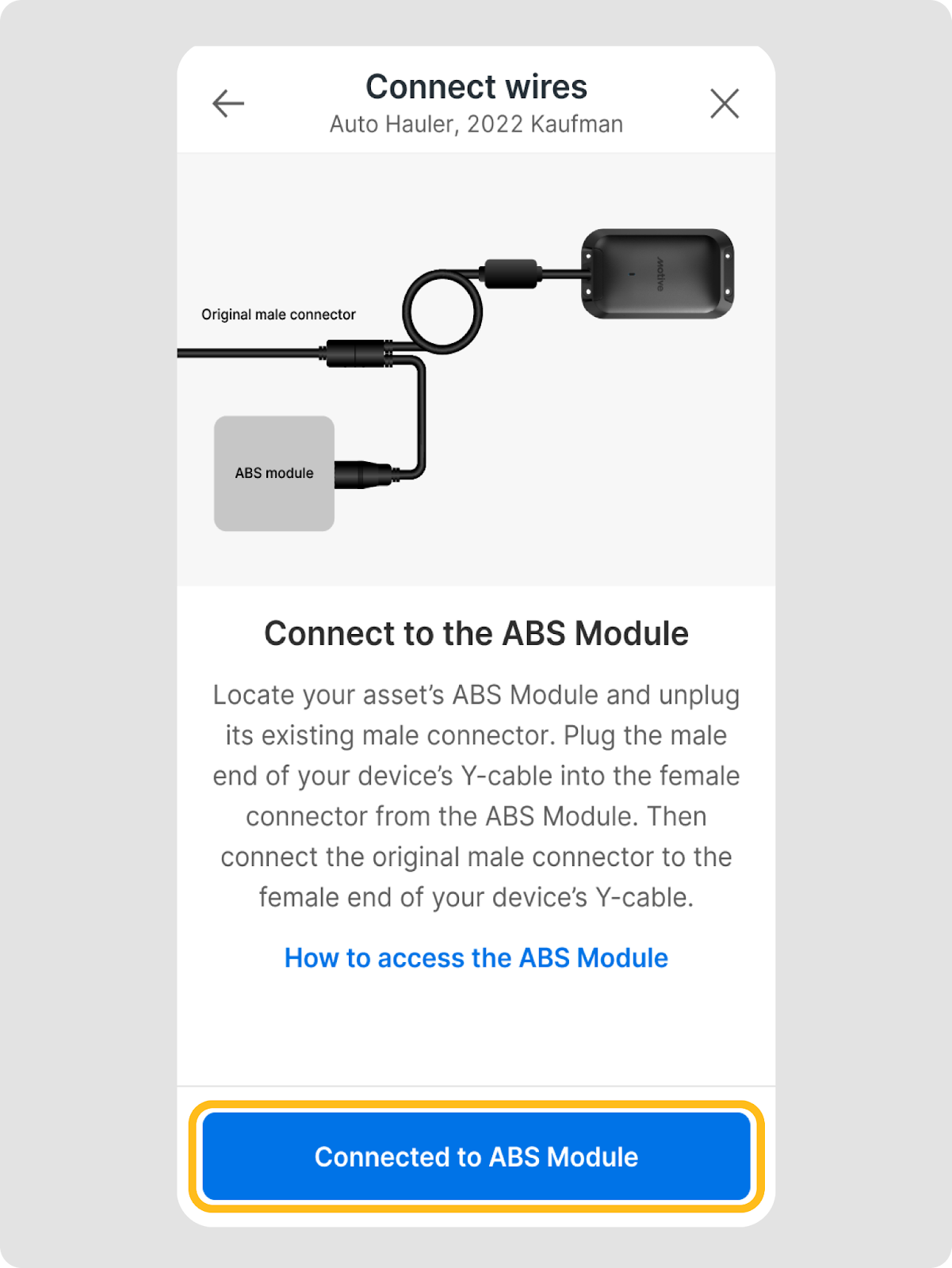

| Note: If installing into a trailer, connect the AG Mini's RED wire to the 7-Way Connector's ABS/AUX line, which is typically the BLUE line. |

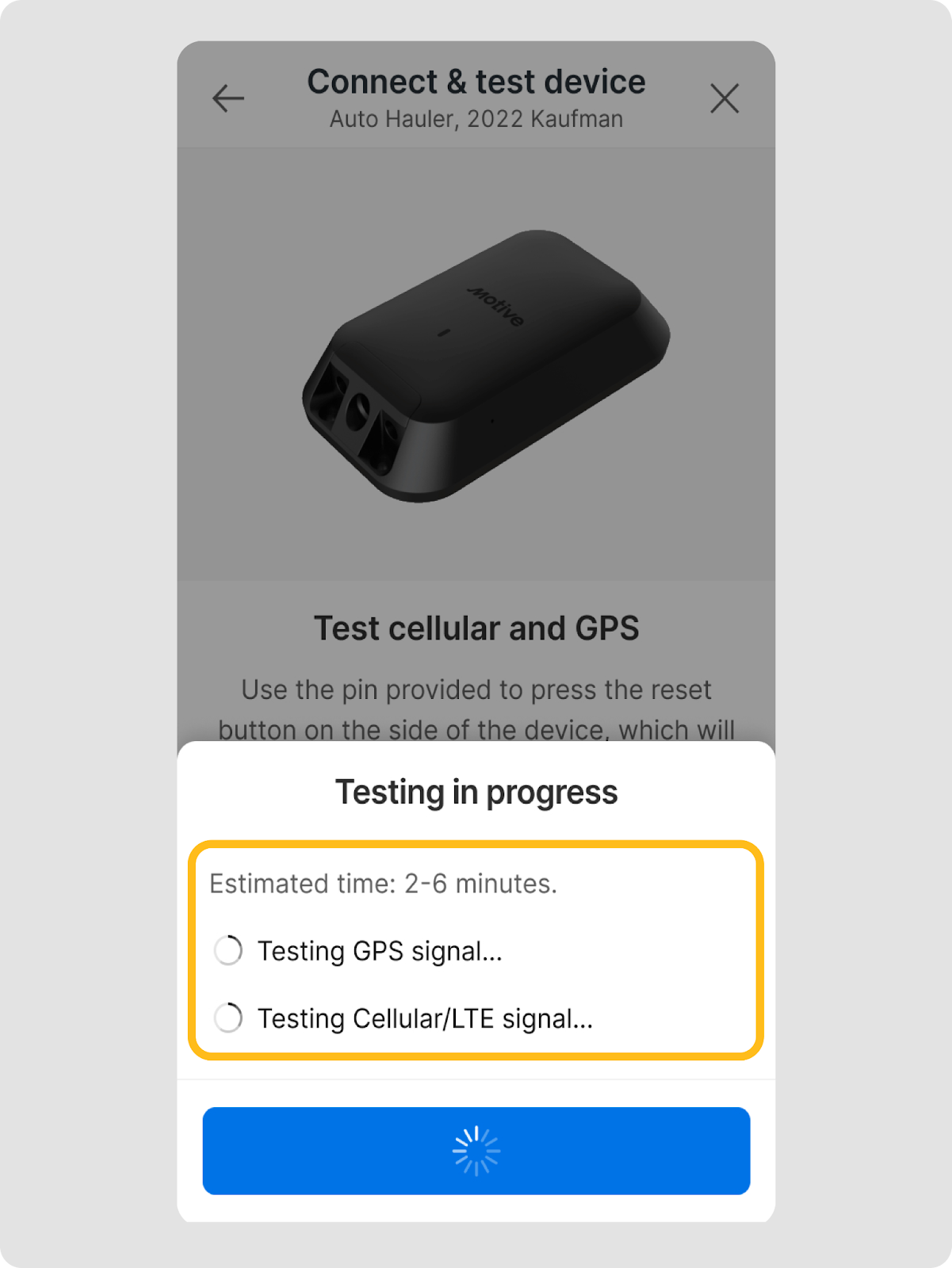

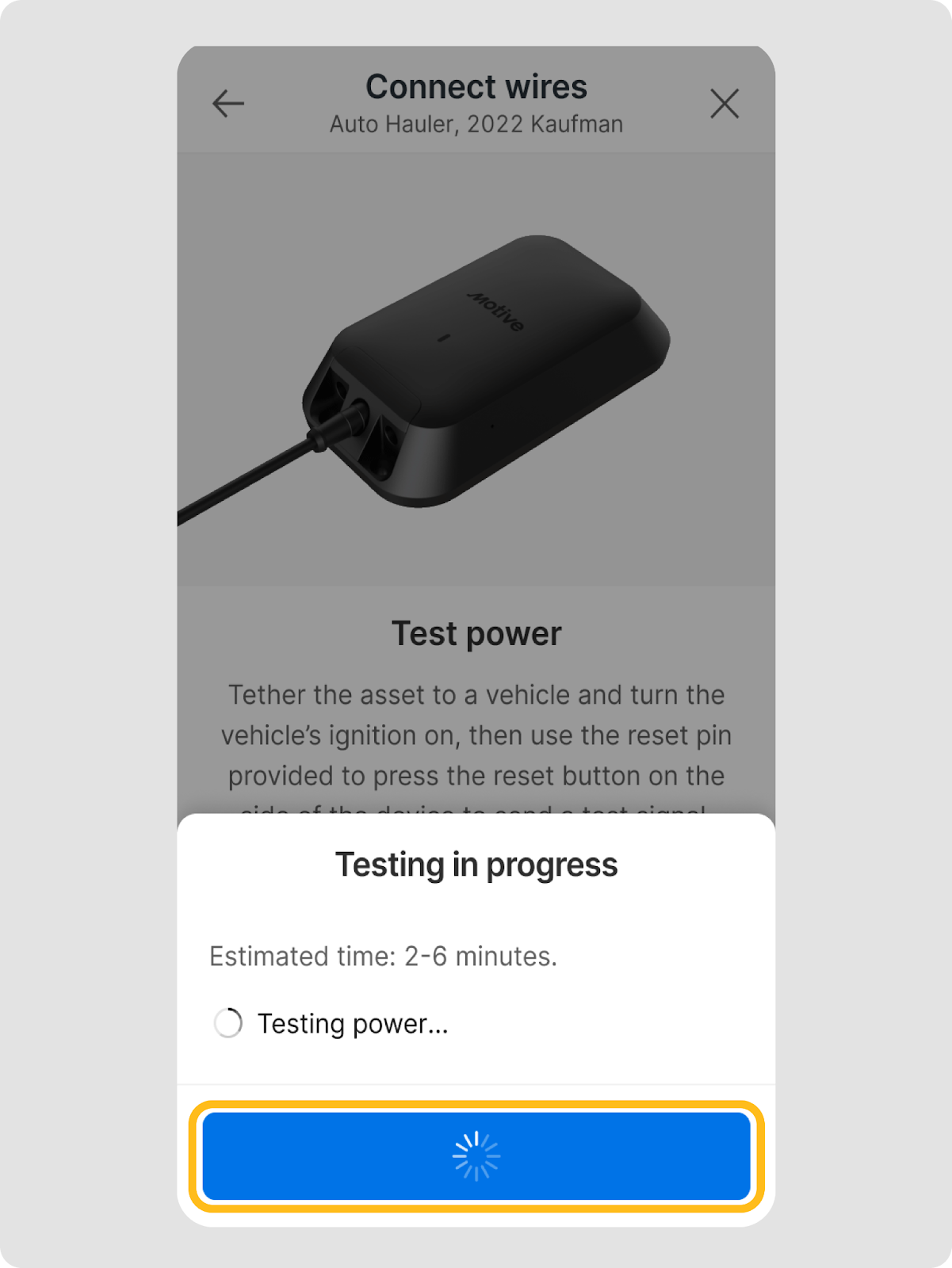

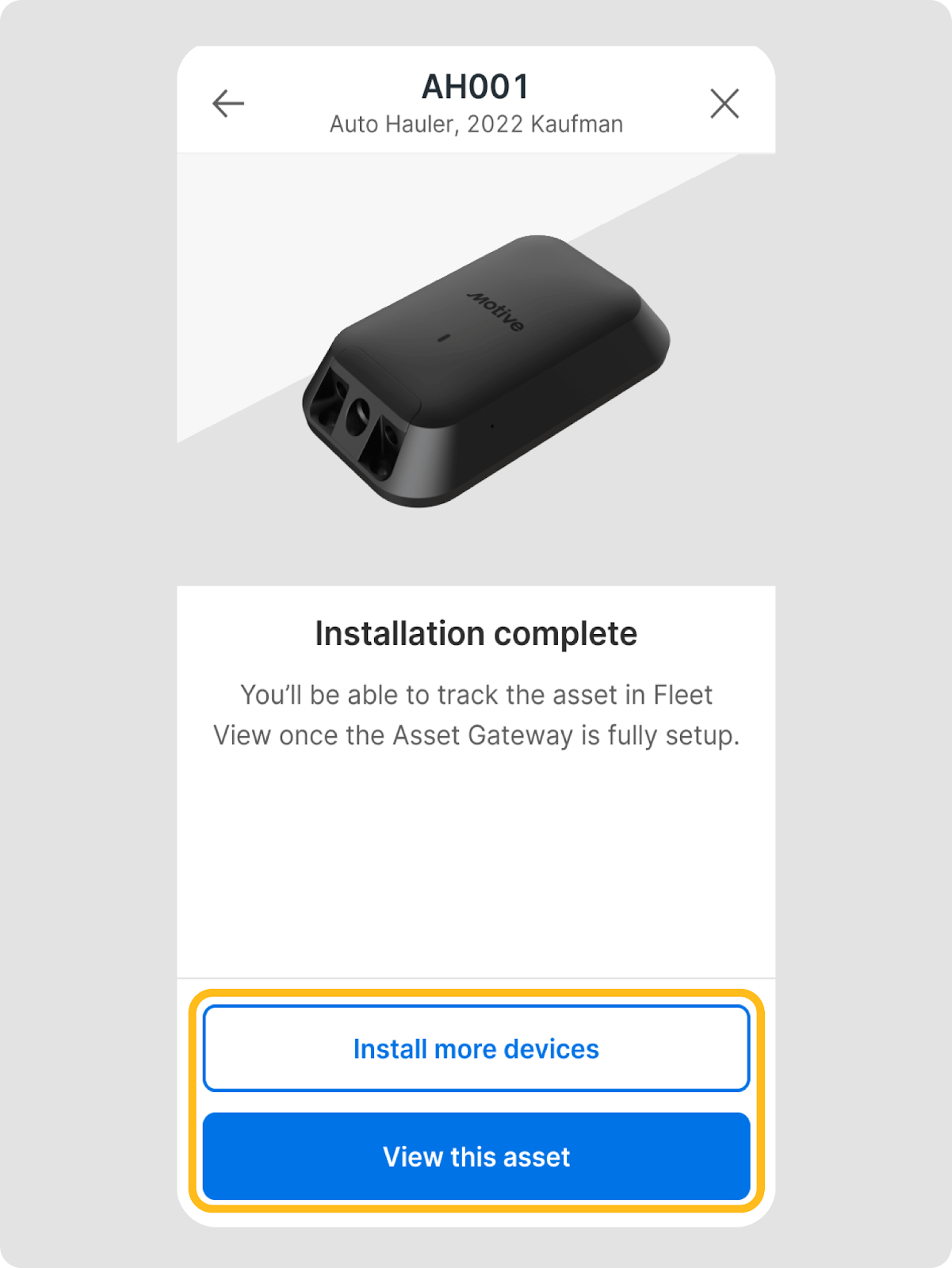

Checking if Asset Gateway Mini Install is Successful
1. On the asset live page, if the Asset Gateway Mini has gotten a GPS fix, the asset’s location will show up on the screen.
2. If you see this screen, it means that the Asset Gateway Mini has been assigned, but is still looking for a valid GPS location.

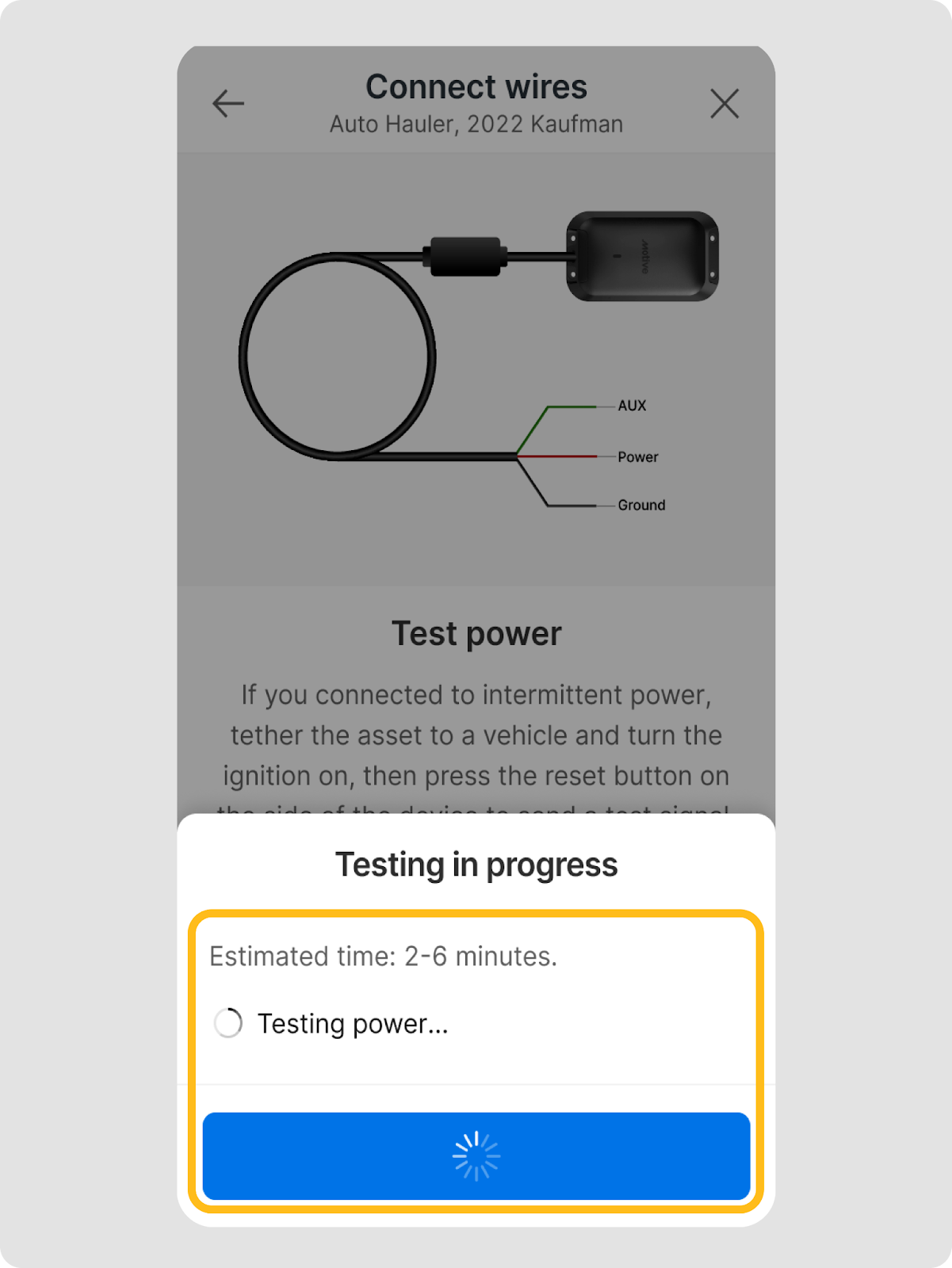

3. If the Asset Gateway Mini is cable-powered, you can turn on the asset’s engine, and if it’s indoors, bring the asset outdoors so that the Asset Gateway can get a clear line of sight for a GPS fix. Wait for another 15-30 minutes, and you should be seeing the GPS location show up on your dashboard.
