Installation AI Dashcam Plus

Updated

What’s in the Box?

  • DC63-NA.01 (road facing) or DC64-NA.01 (dual facing)
  • Alcohol wipes
  • Cable clips & ties
  • Vehicle Interface adapter
  • L-Key (Allen key)
  • Pin-hole reset key
Note: Cables are shipped separately. Use the appropriate one based on the vehicle. Visit: gomotive.com/dashcamplus-install to learn more.

Installing AI Dashcam Plus on Fleet App

  • Installation via Scanning
    • Entering VIN manually
      • Add a new vehicle
    • Selecting VIN from the list
    • Selecting AIDC+ from the list
  • Physical Installation
    • Select the required cable
    • Connect the AIDC+
    • Plug the AIDC+ into the vehicle adapter
    • Select a mounting location
    • Test the mounting location
    • Mount the AIDC+
    • Battery & safety warnings

Installation via Scanning

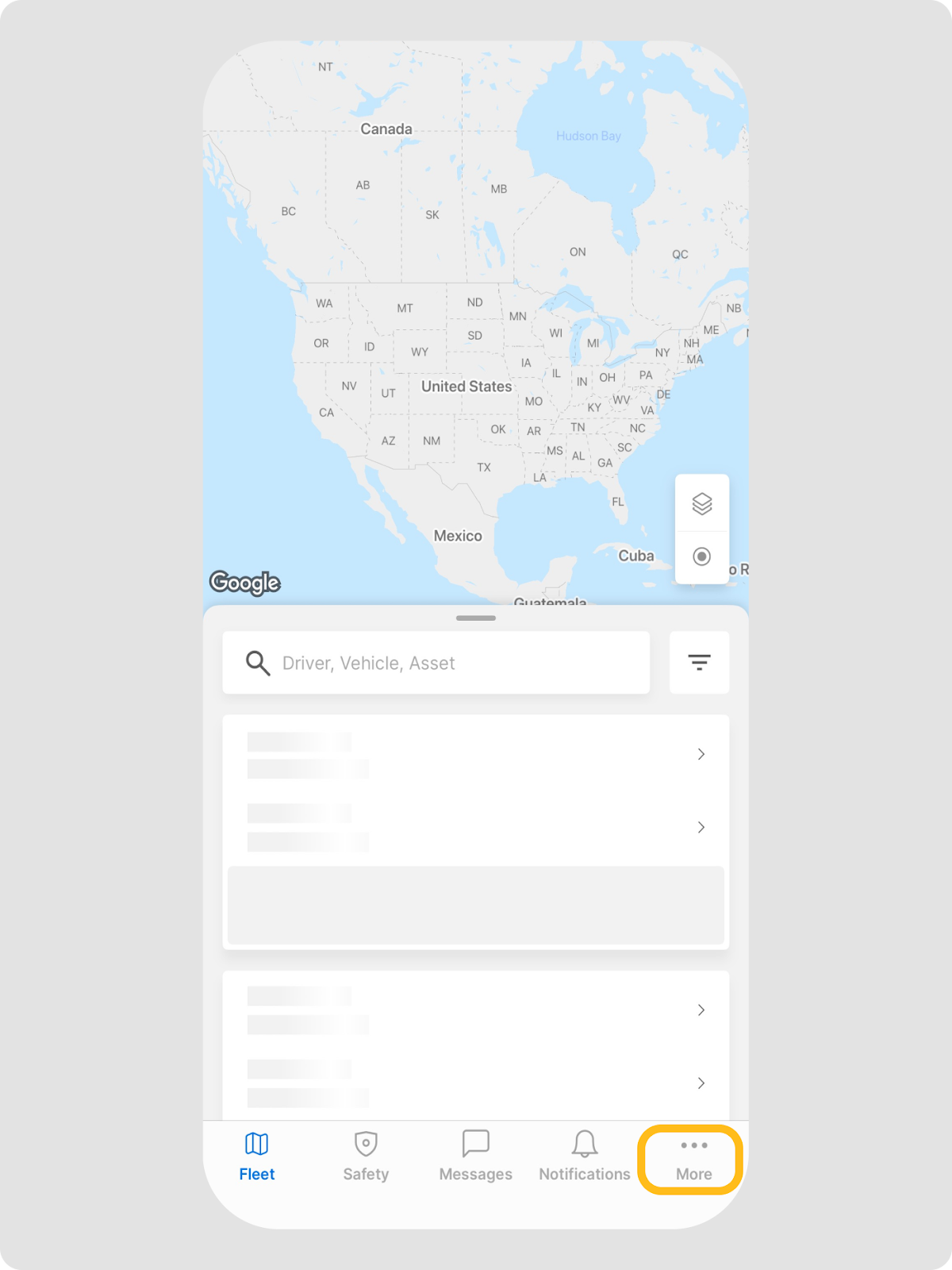

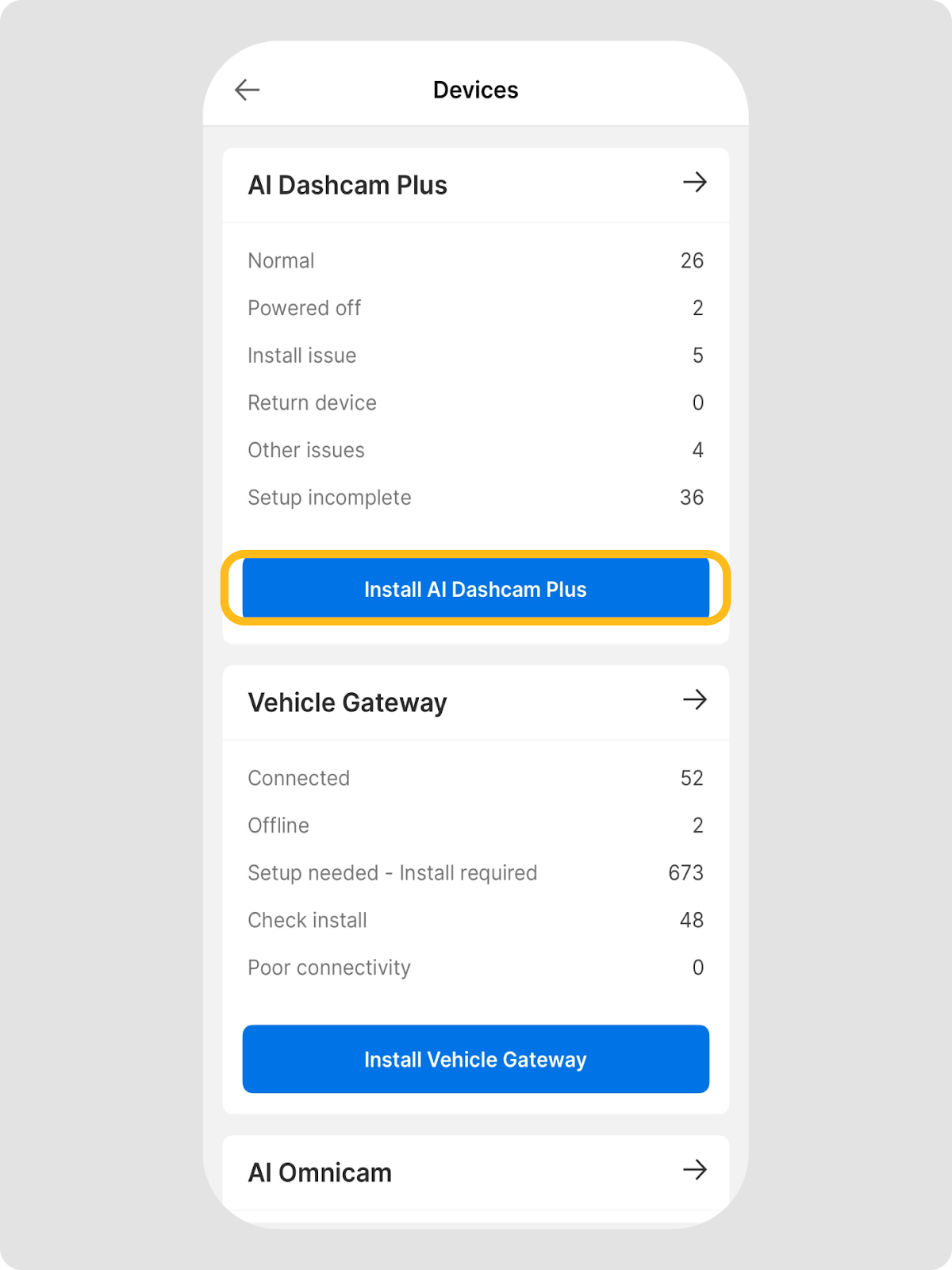

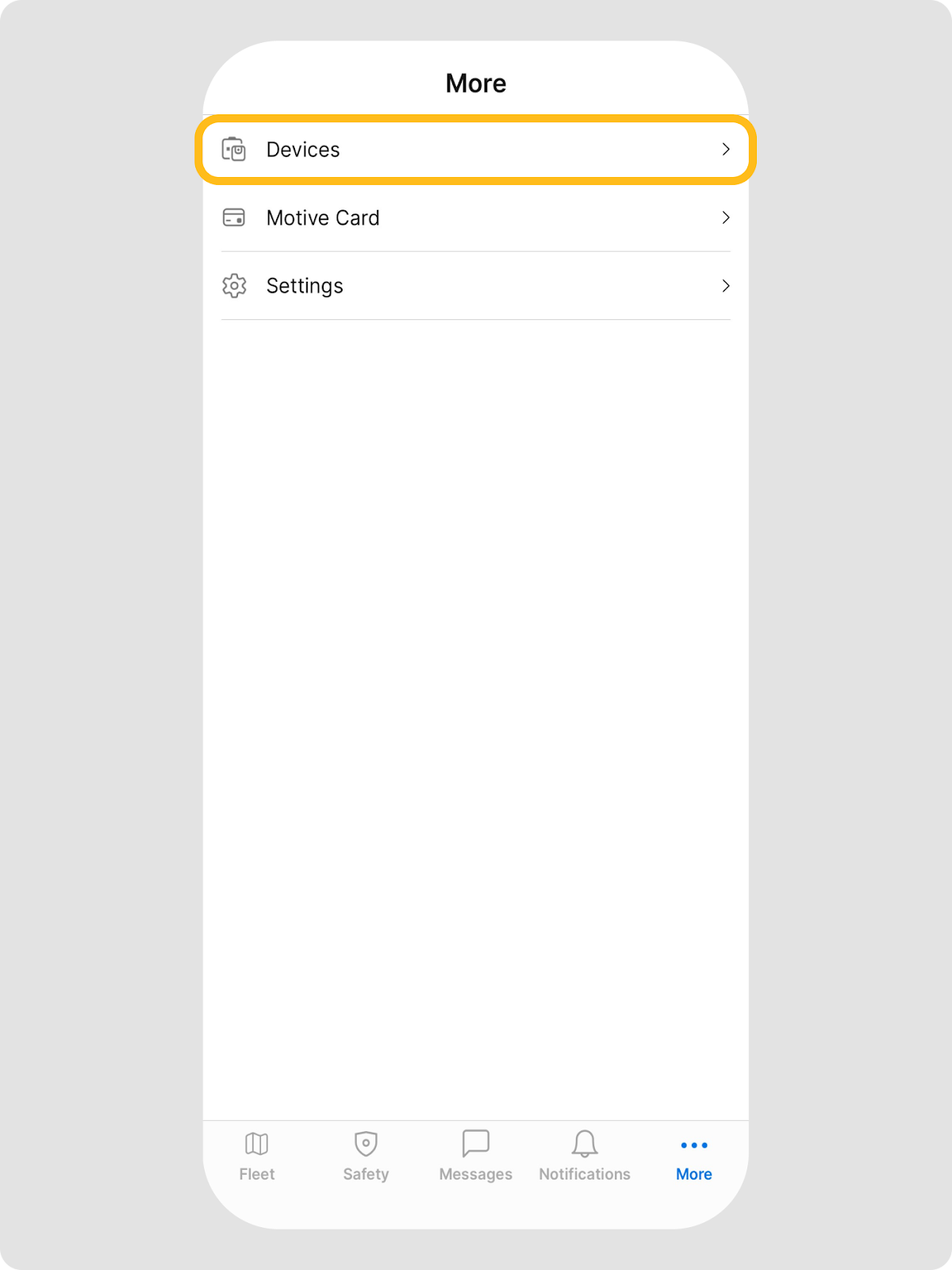

  1. Log in to the Fleet App and tap More > Devices > Install AI Dashcam Plus.
unnamed (57).png
unnamed (58).png
unnamed (59).png

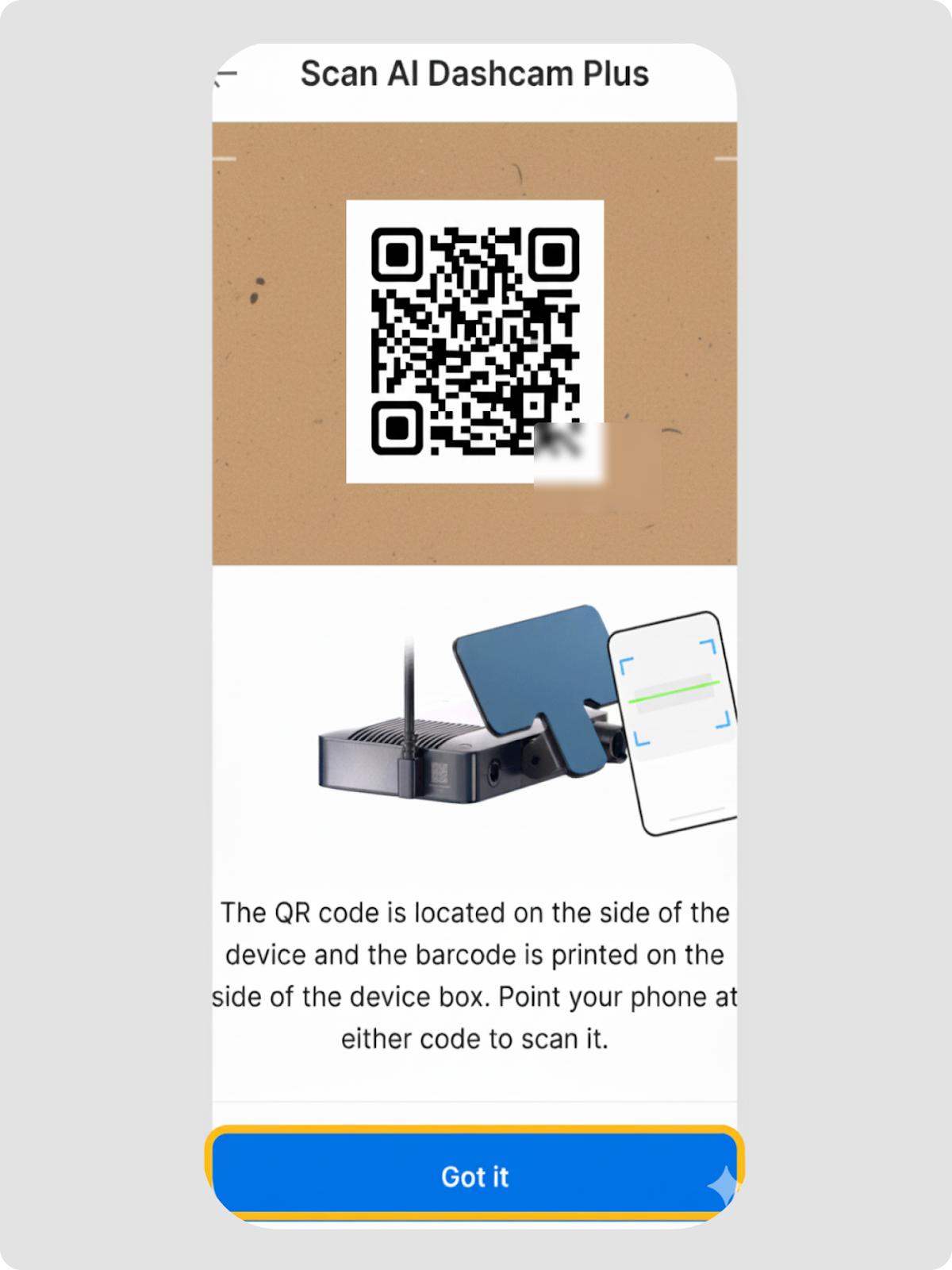

  1. On the scanning screen, tap Got it to start scanning the AI Dashcam Plus QR code.
unnamed (60).png

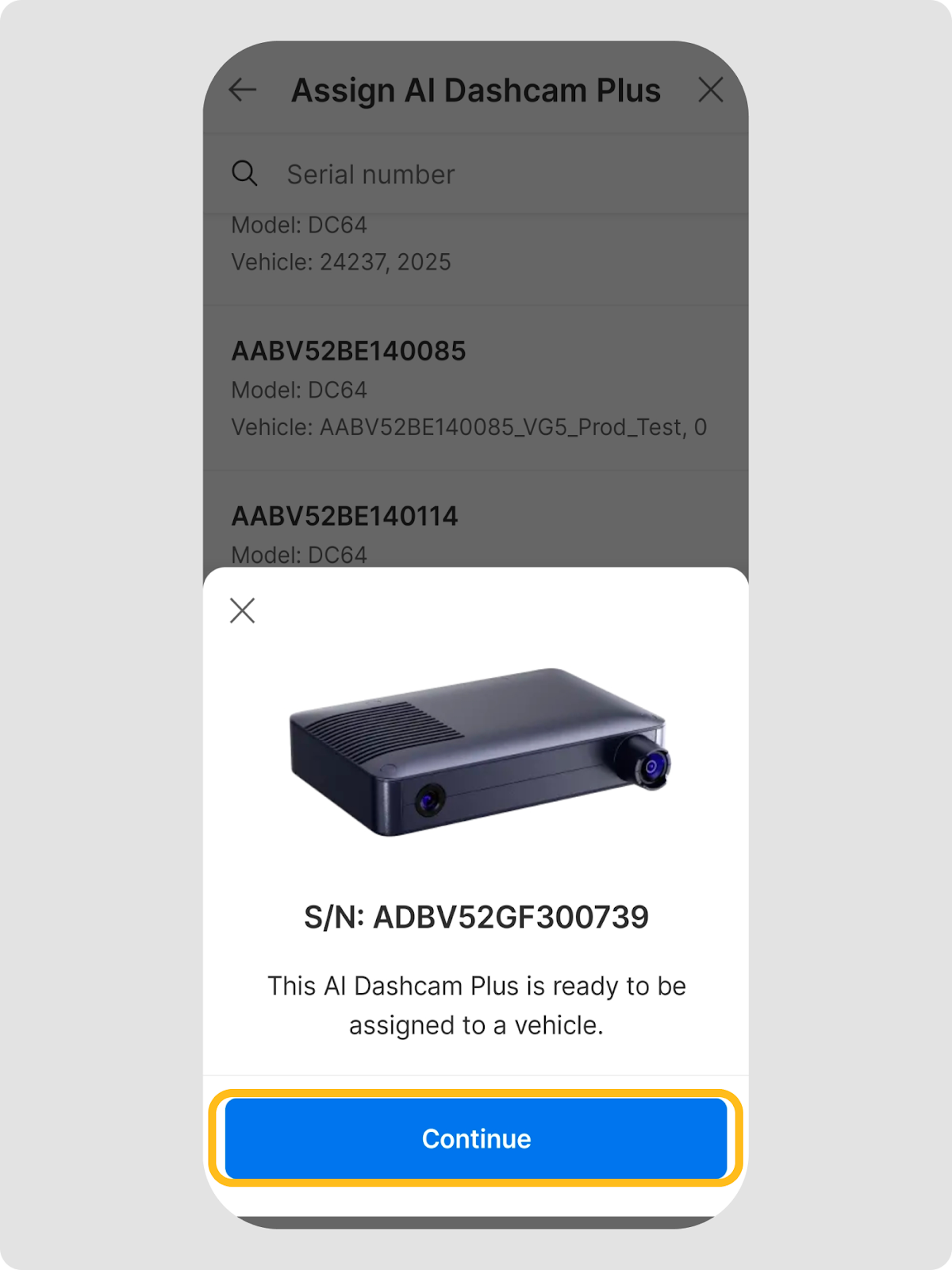

  1. Once scanned, tap Continue.



unnamed (61).png

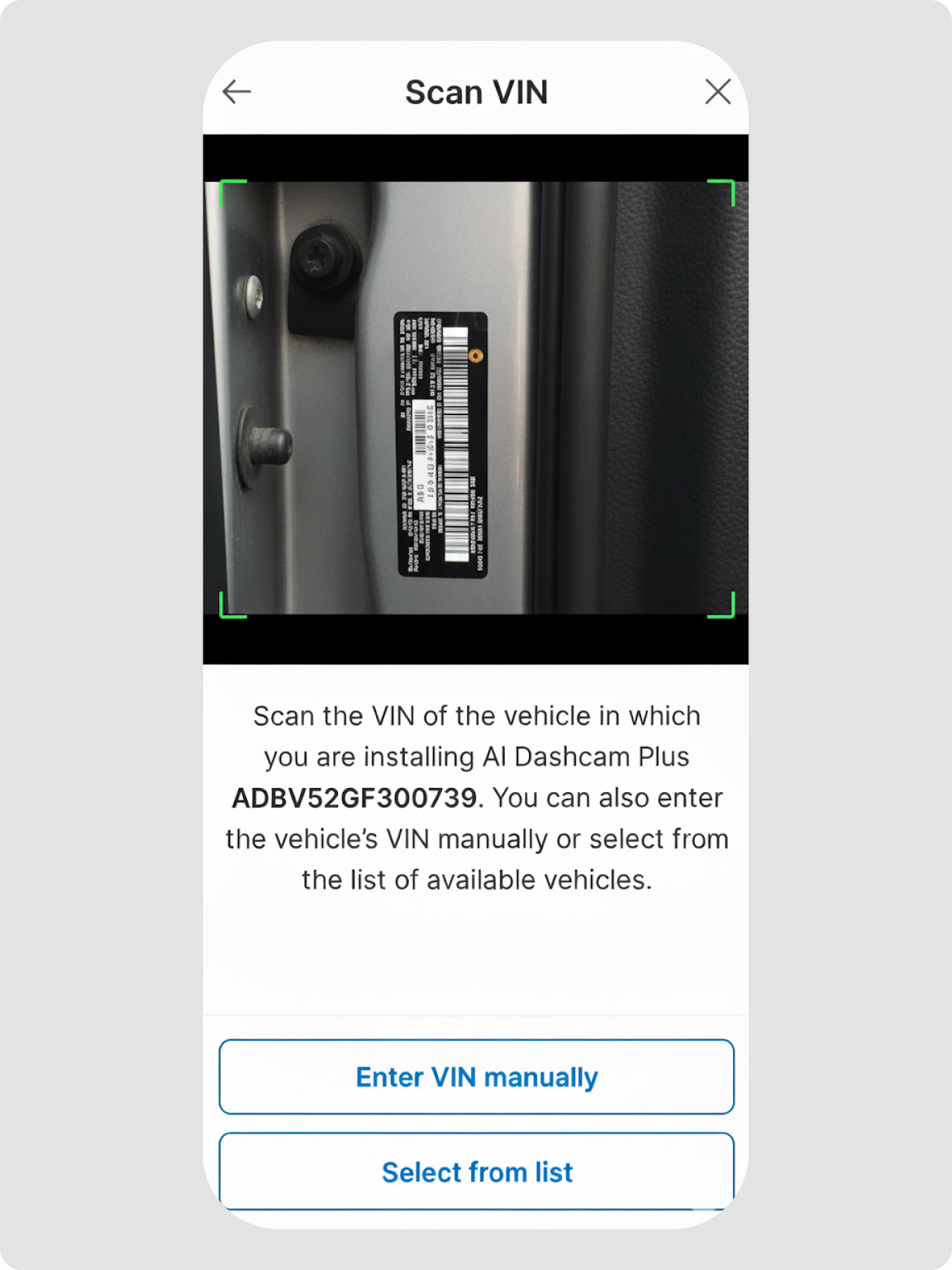

  1. Scan VIN.
unnamed (62).png

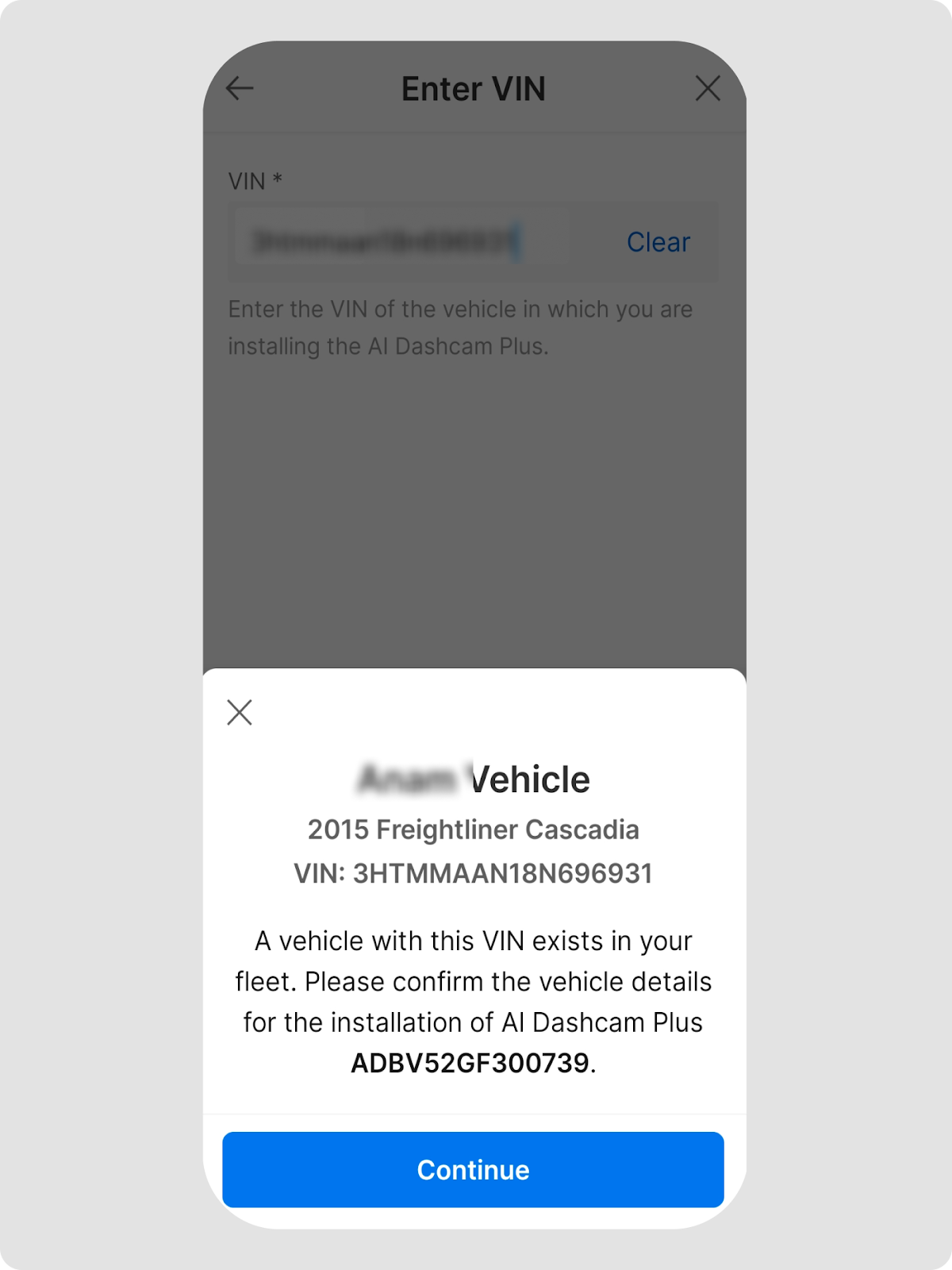

  1. Tap Continue.
unnamed (63).png

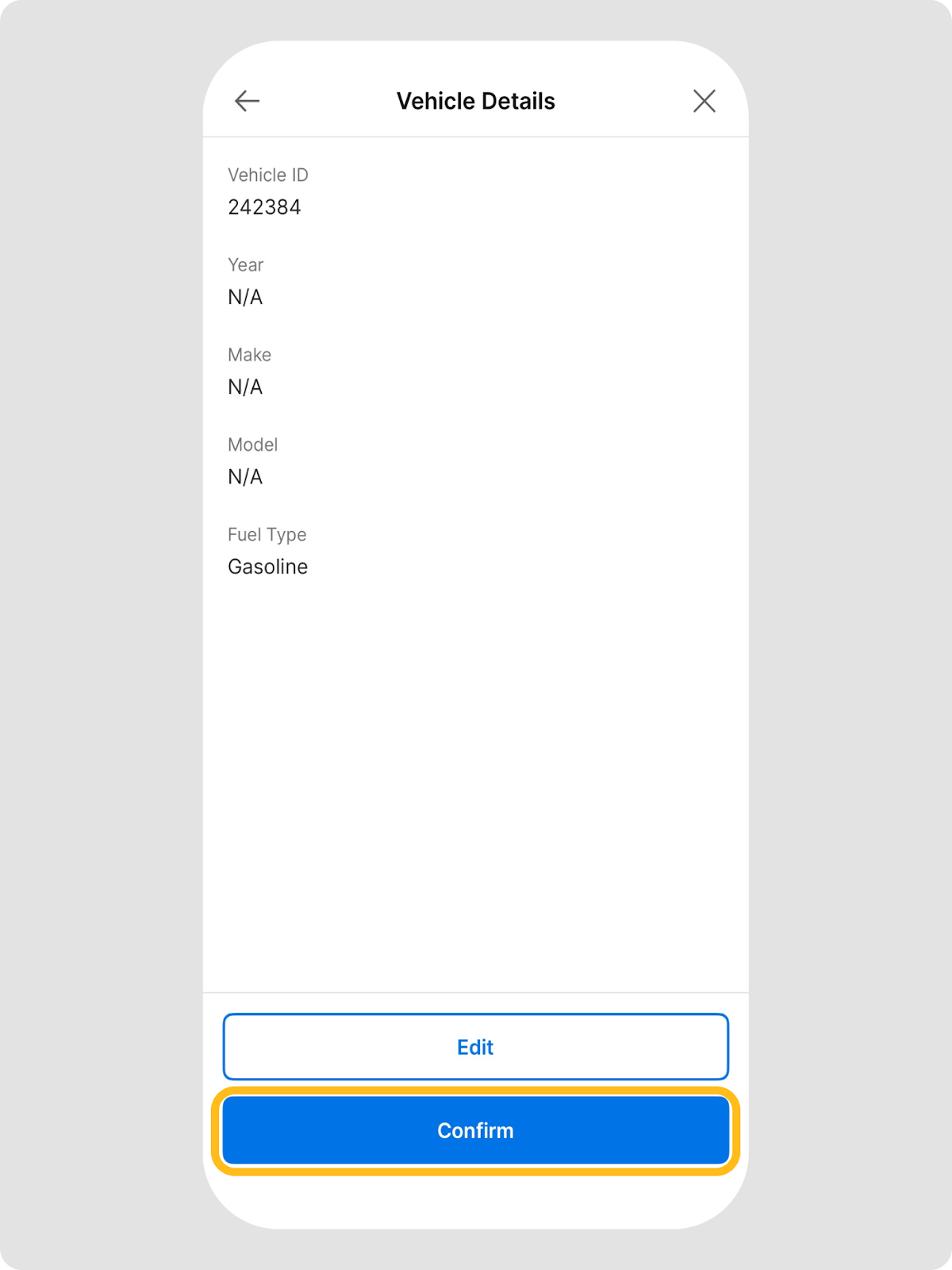

  1. Tap Confirm.
unnamed (64).png

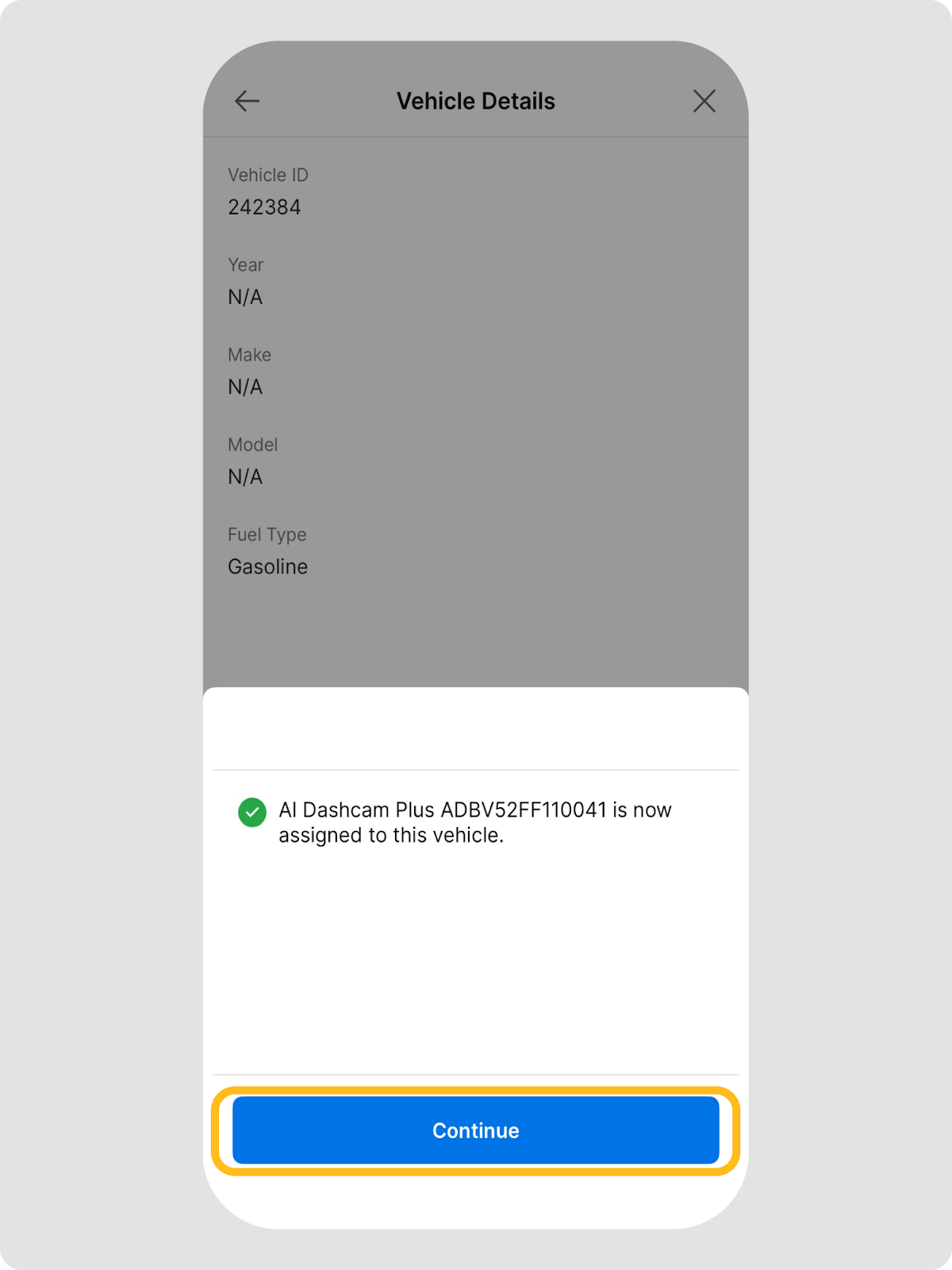

  1. The AIDC is now assigned to the selected vehicle and ready for physical installation.
unnamed (65).png



Entering VIN manually

  1. Follow steps 1 to 3 from the above section.
  2. On the Scan VIN screen, tap Enter VIN manually.
unnamed (66).png

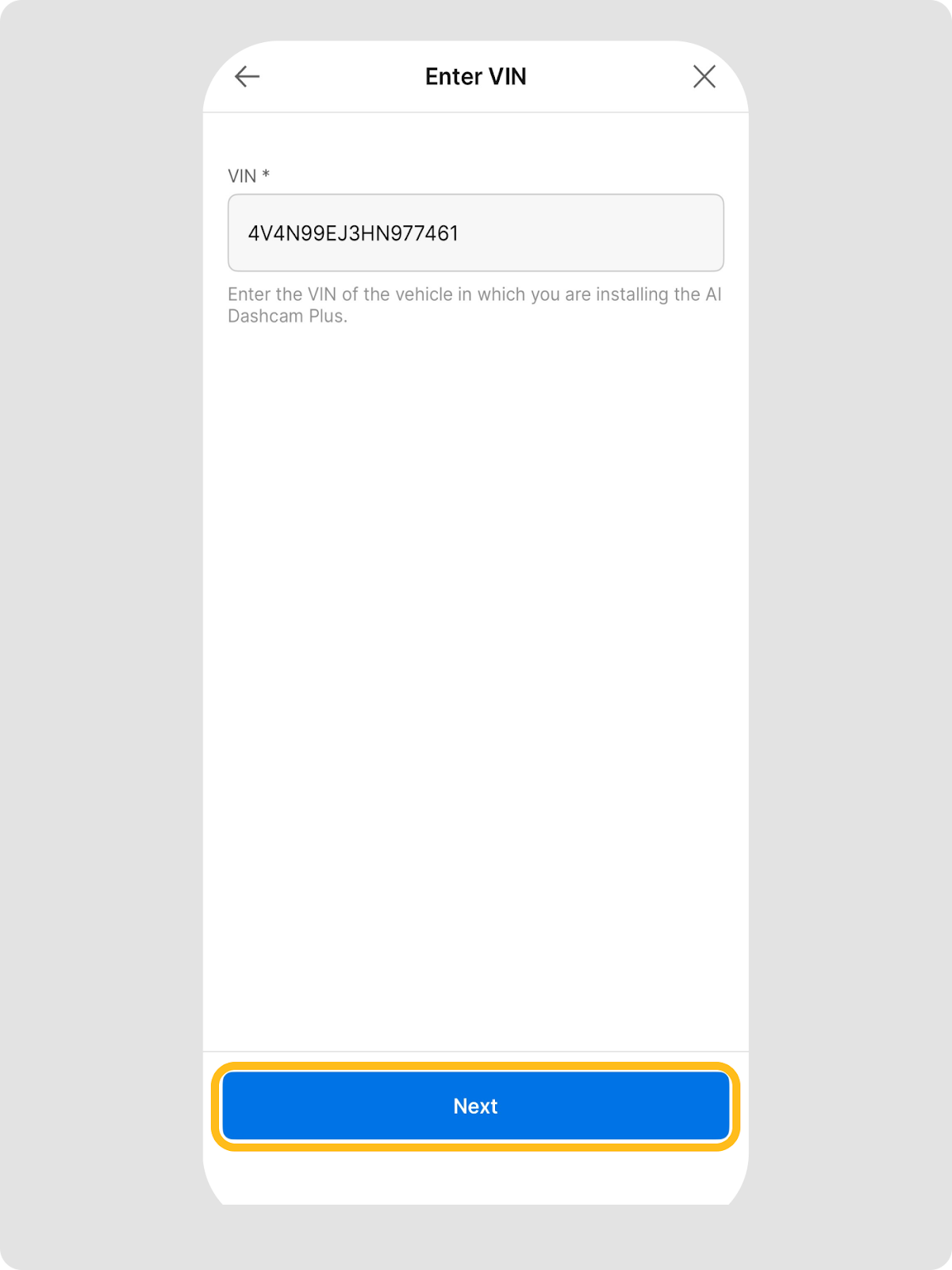

  1. Enter VIN and tap Next.
unnamed (67).png



  1. Add Vehicle Details and tap Next.
unnamed (68).png

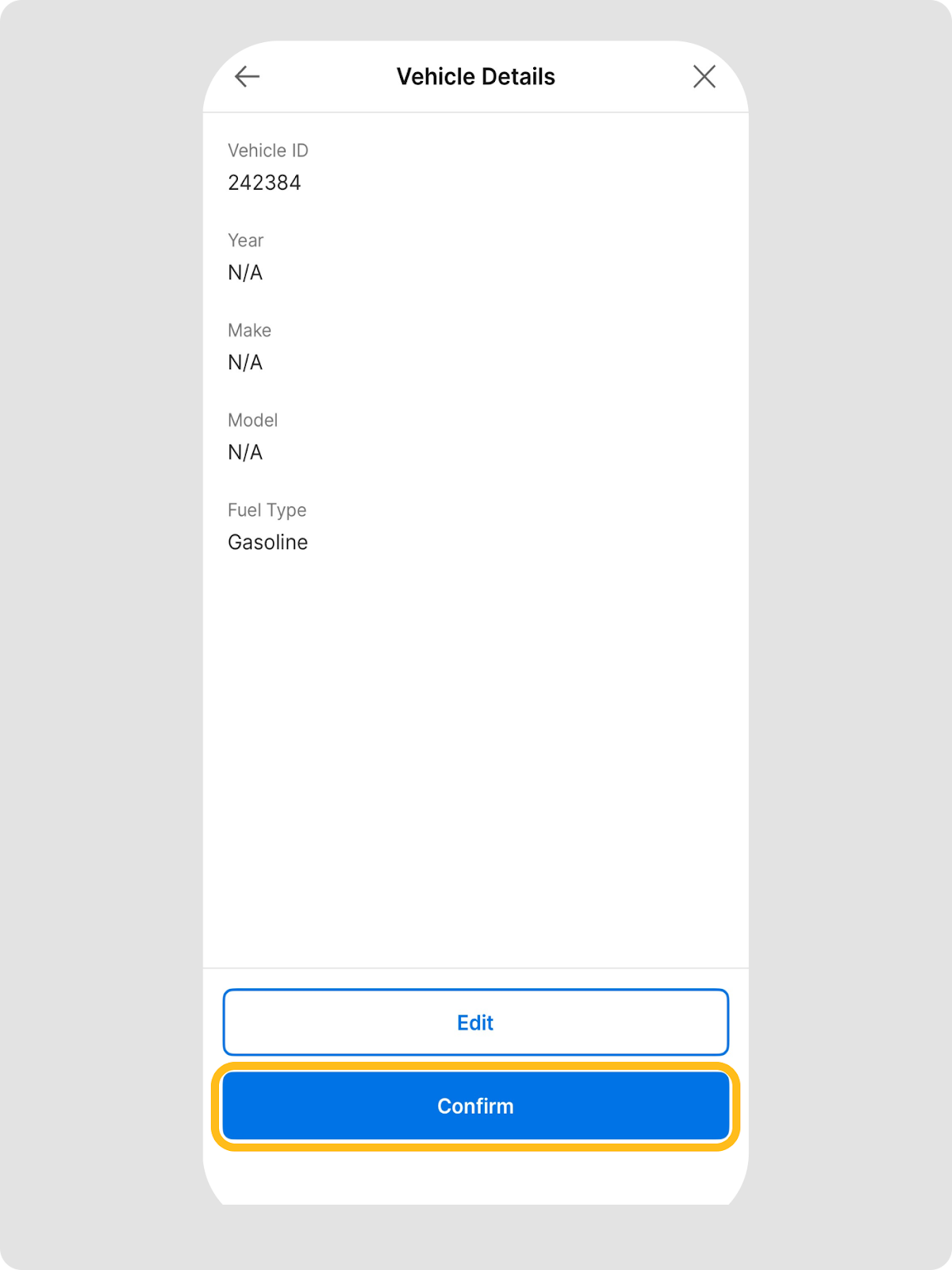

  1. Tap Confirm.
unnamed (69).png

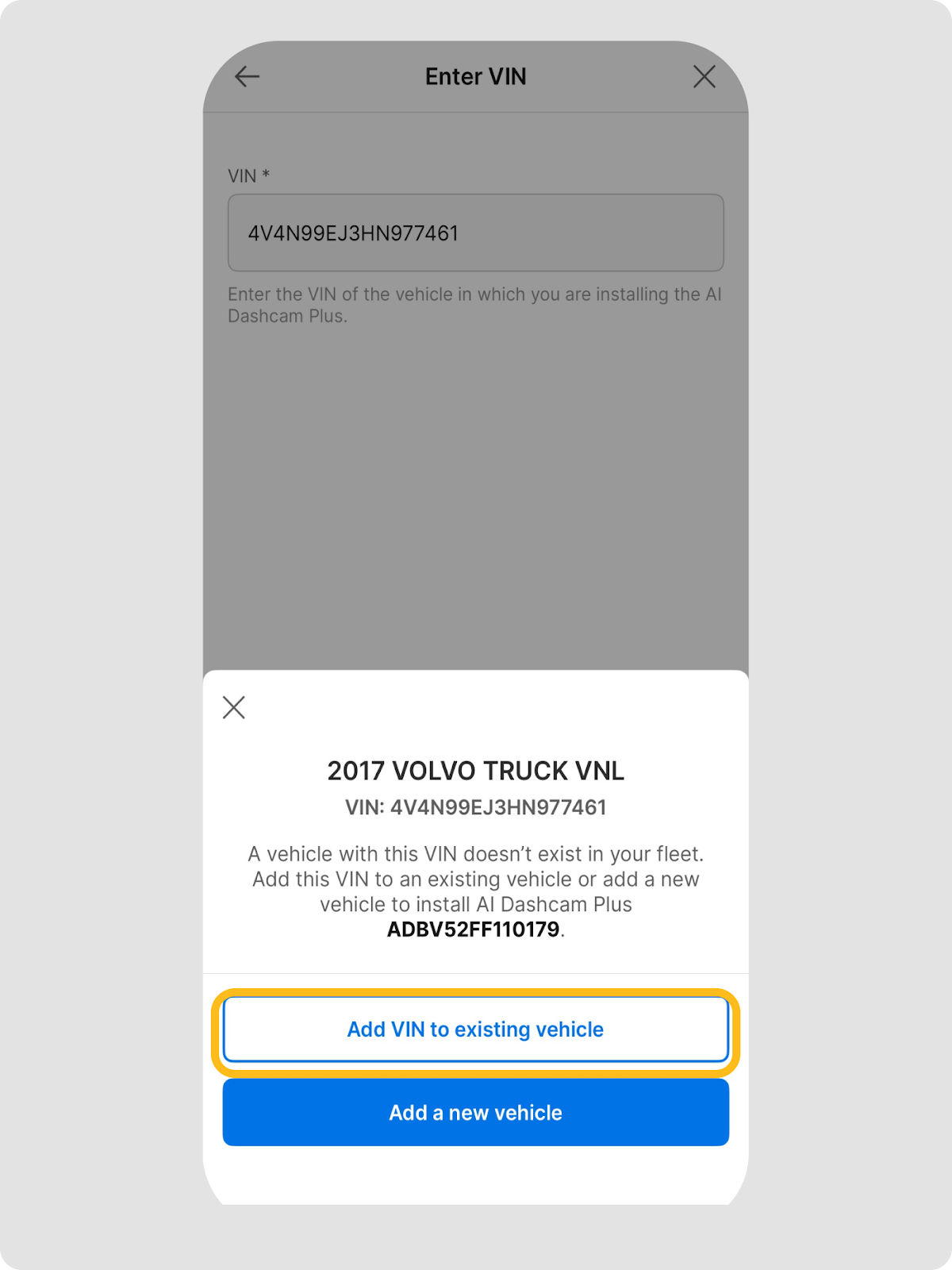

  1. Tap Add VIN to existing vehicle.

unnamed (70).png

  1. The AIDC is now assigned to the selected vehicle and is ready for physical installation.
unnamed (71).png



Adding a new vehicle

  1. After manually adding the VIN tap Add a new vehicle.
unnamed (72).png

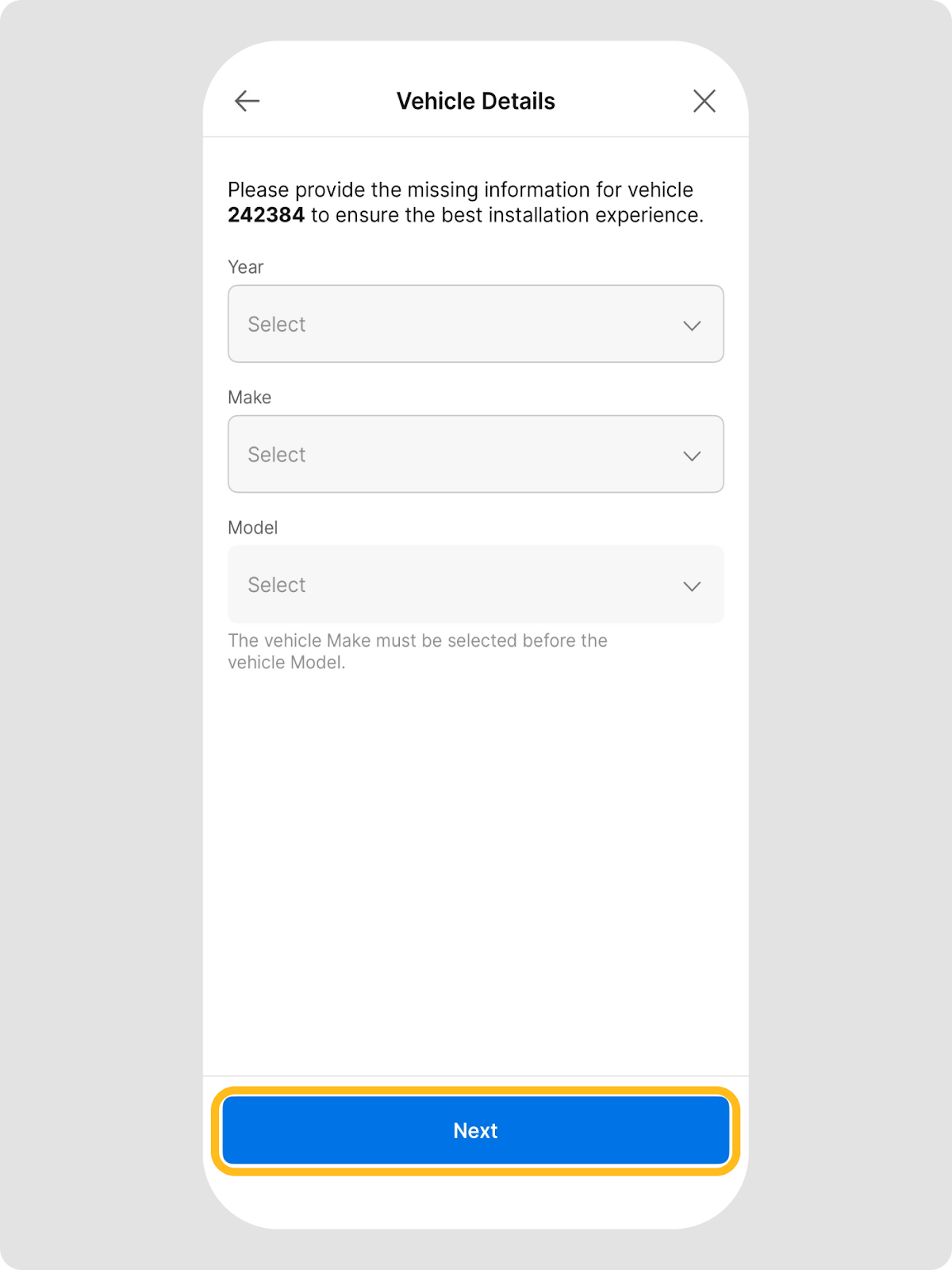

  1. Add the Vehicle details and tap Next.
unnamed (73).png



  1. Tap Confirm.
unnamed (74).png



  1. The AIDC is now assigned to the selected vehicle and is ready for physical installation.
unnamed (75).png



Selecting VIN from the list

  1. Follow steps 1 to 3 from the above section.

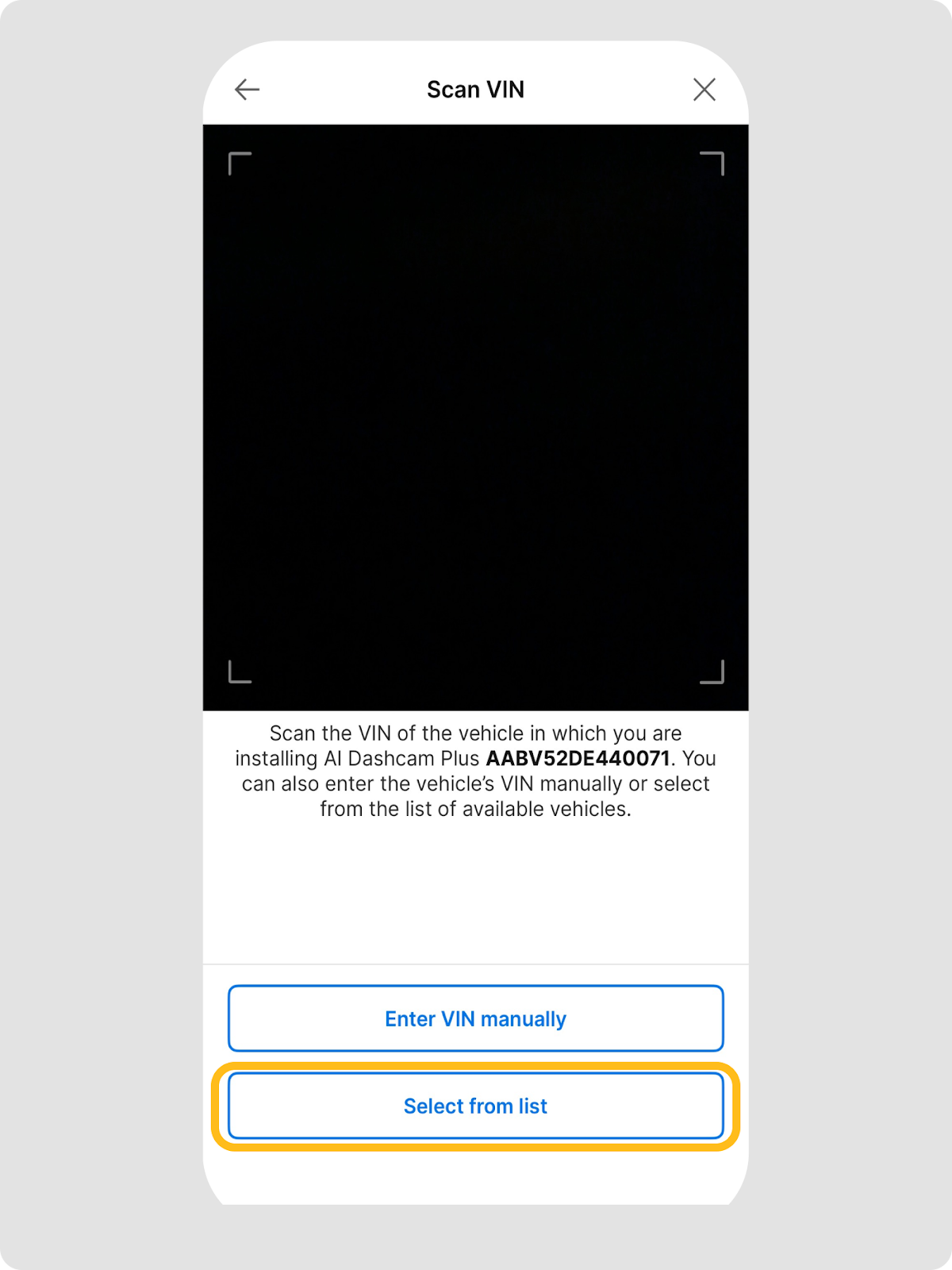

  2. On the Scan VIN screen, tap Select from list.
unnamed (76).png

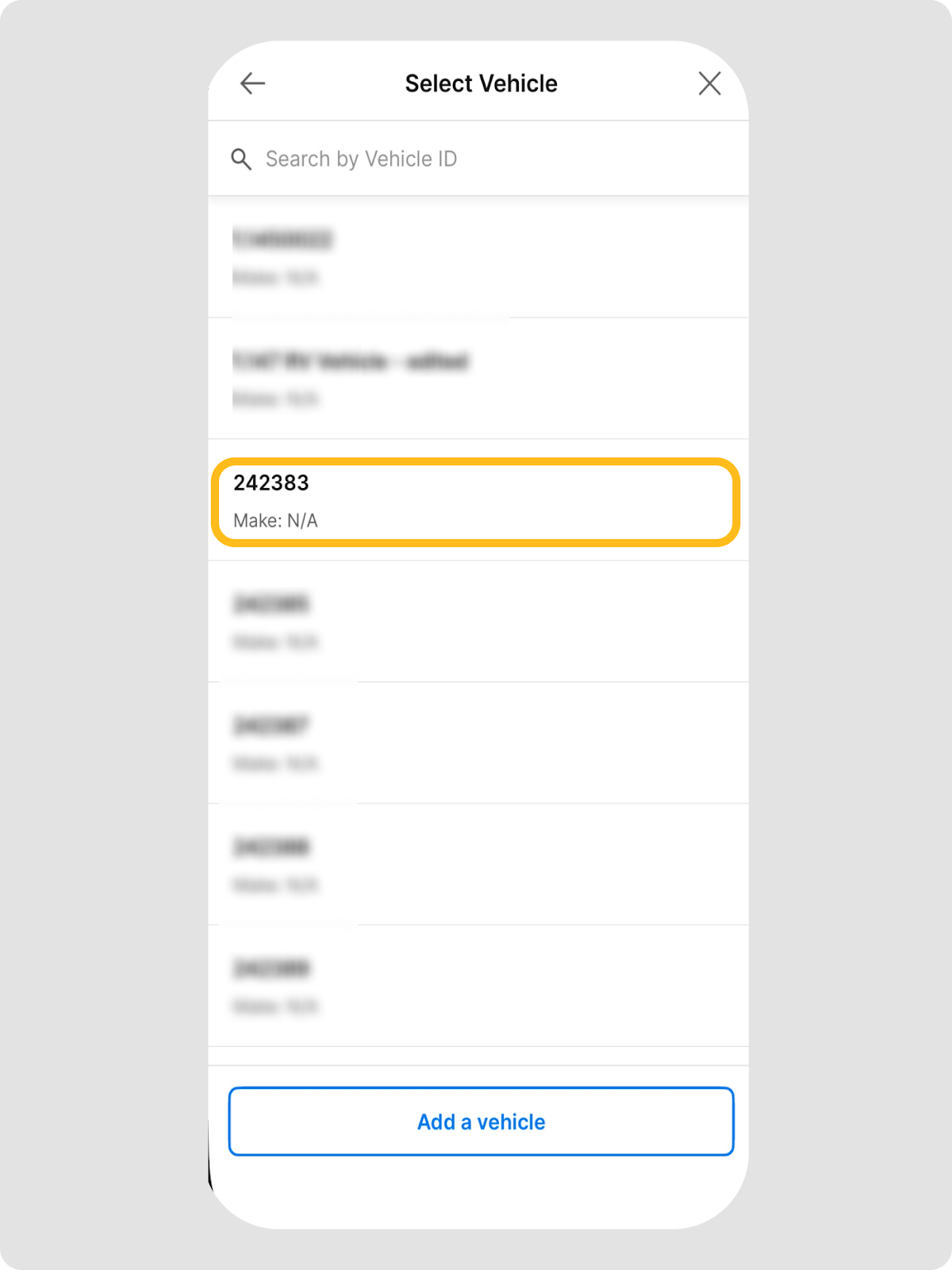

  1. Tap to select the required Vehicle.
unnamed (77).png

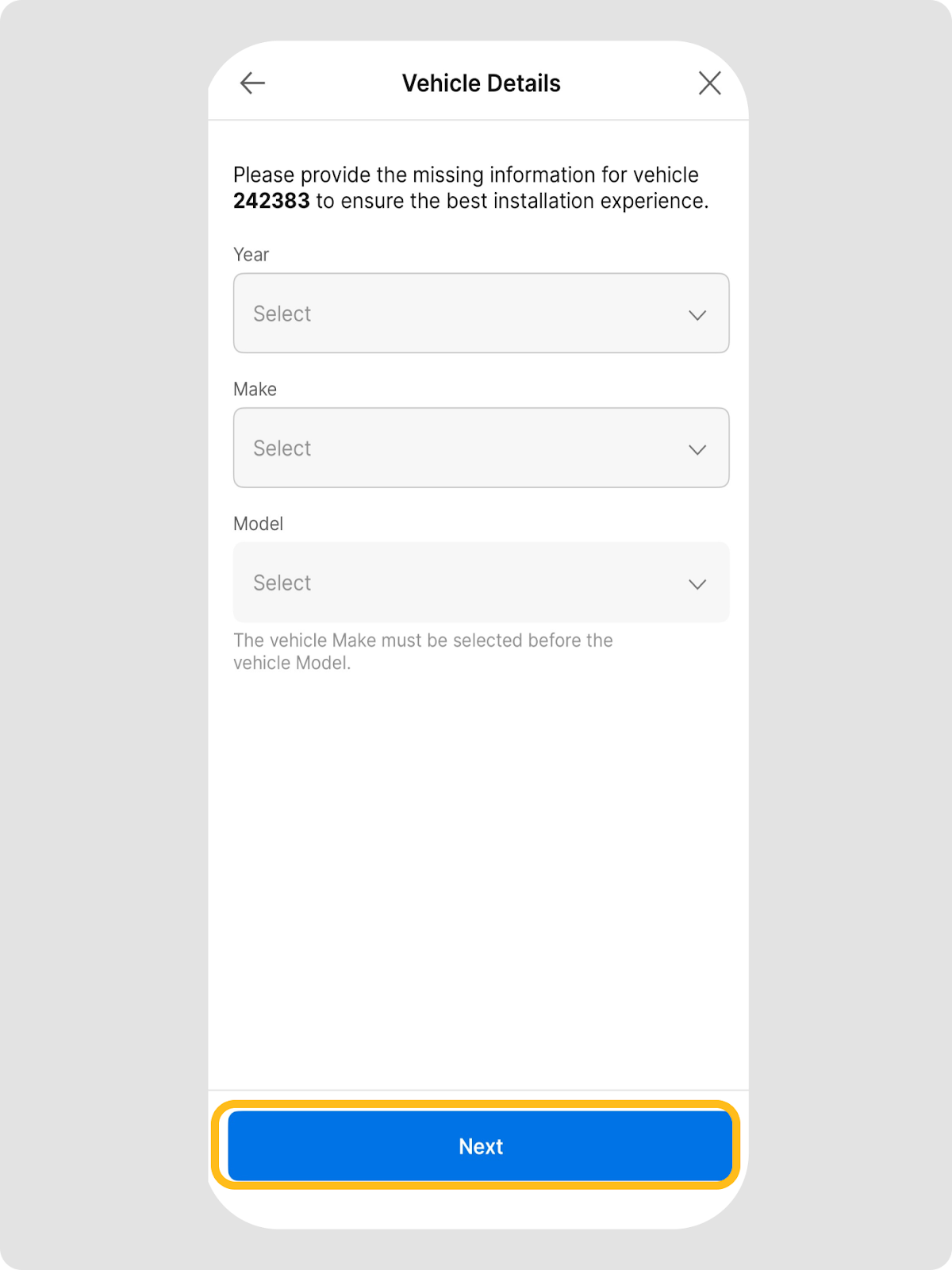

  1. Add Vehicle Details and tap Next.
unnamed (78).png



  1. Tap Confirm to verify details or follow the instructions above to add a new vehicle.
unnamed (79).png

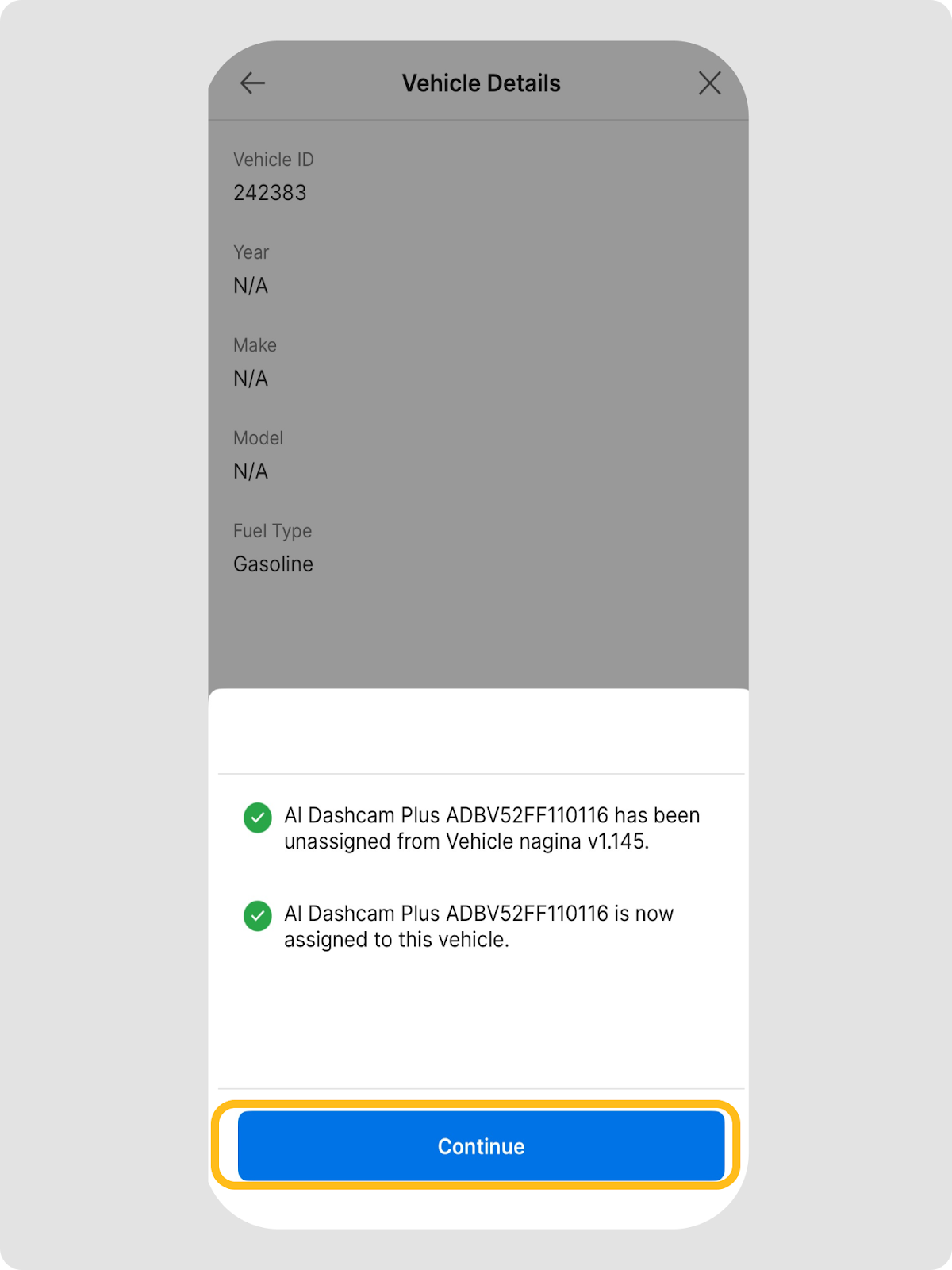

  1. Once confirmed, the Vehicle gets added to the fleet with the selected AIDC.
unnamed (80).png



Selecting AIDC+ from the list

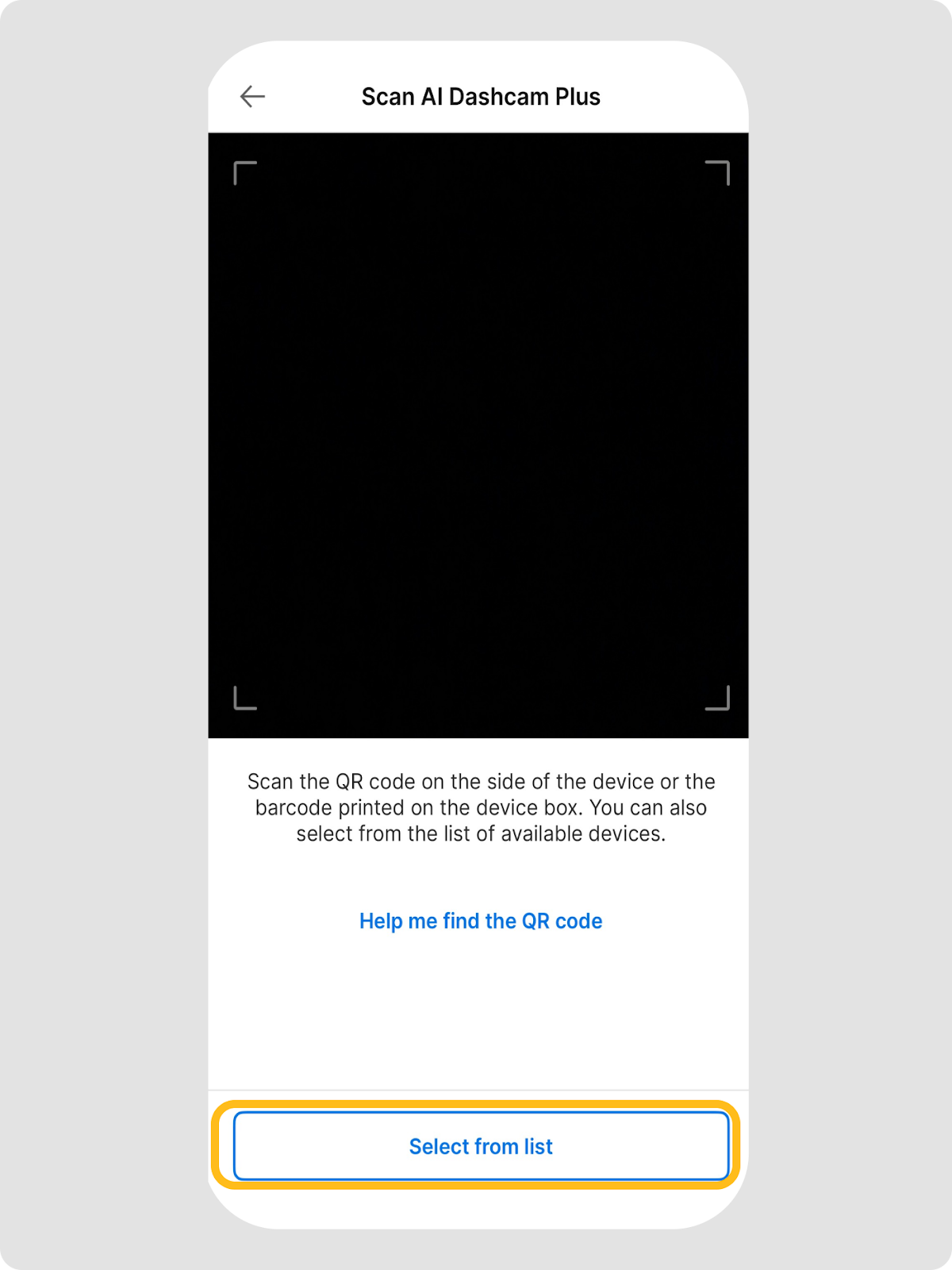

  1. In case of failed AIDC+ scanning, tap Select from list.
unnamed (81).png

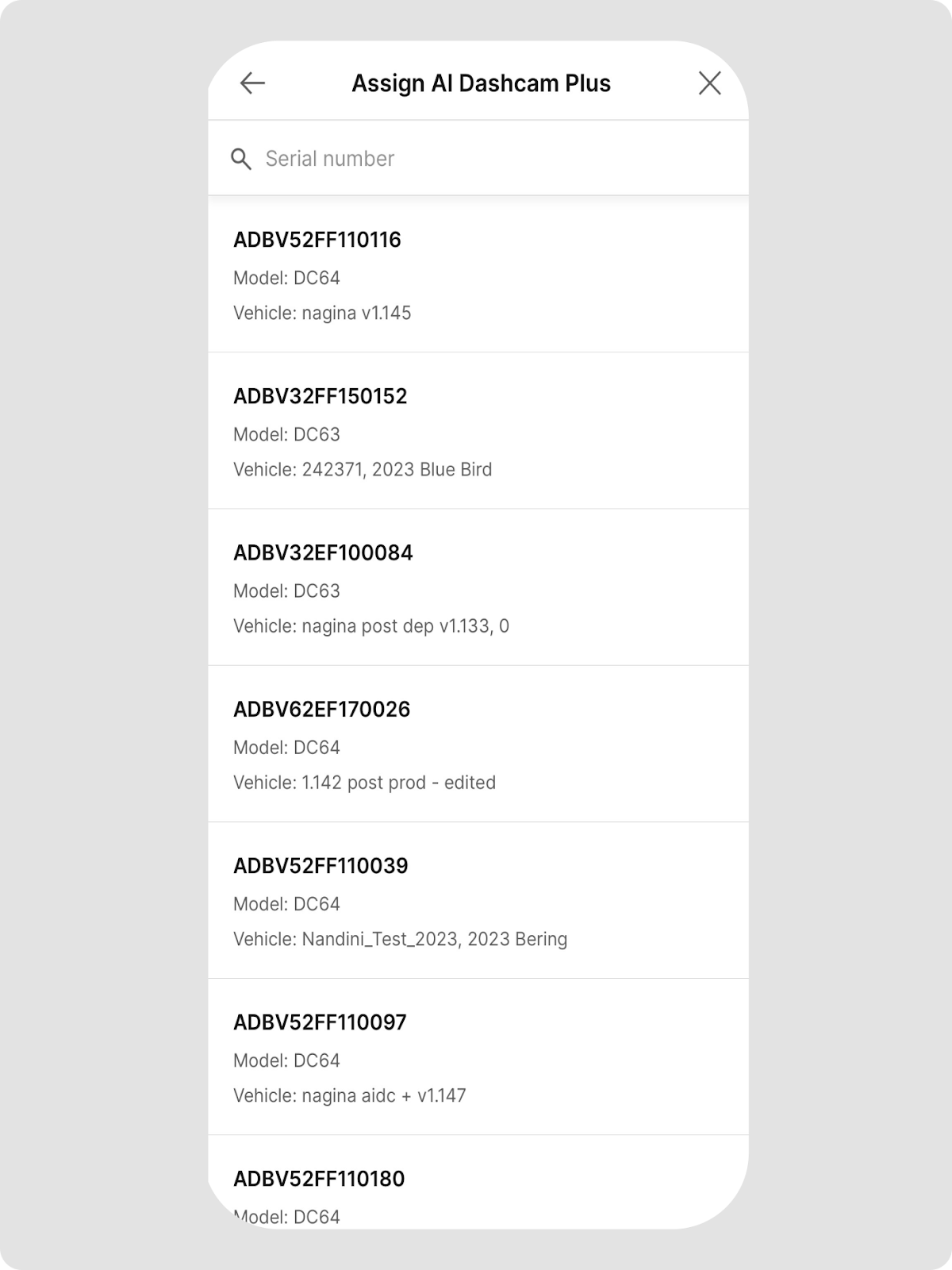

  1. Select the required AI Dashcam Plus.
unnamed (82).png



  1. Tap Install for installation in the required vehicle.
  2. To Install in another vehicle, follow this section.
unnamed (83).png



Note: Always scan and assign the AI Dashcam Plus serial number, not the VIA serial number, when adding a device to a vehicle in Motive. VIA is a supporting adapter and should not be used for serial number scanning.

Physical Installation

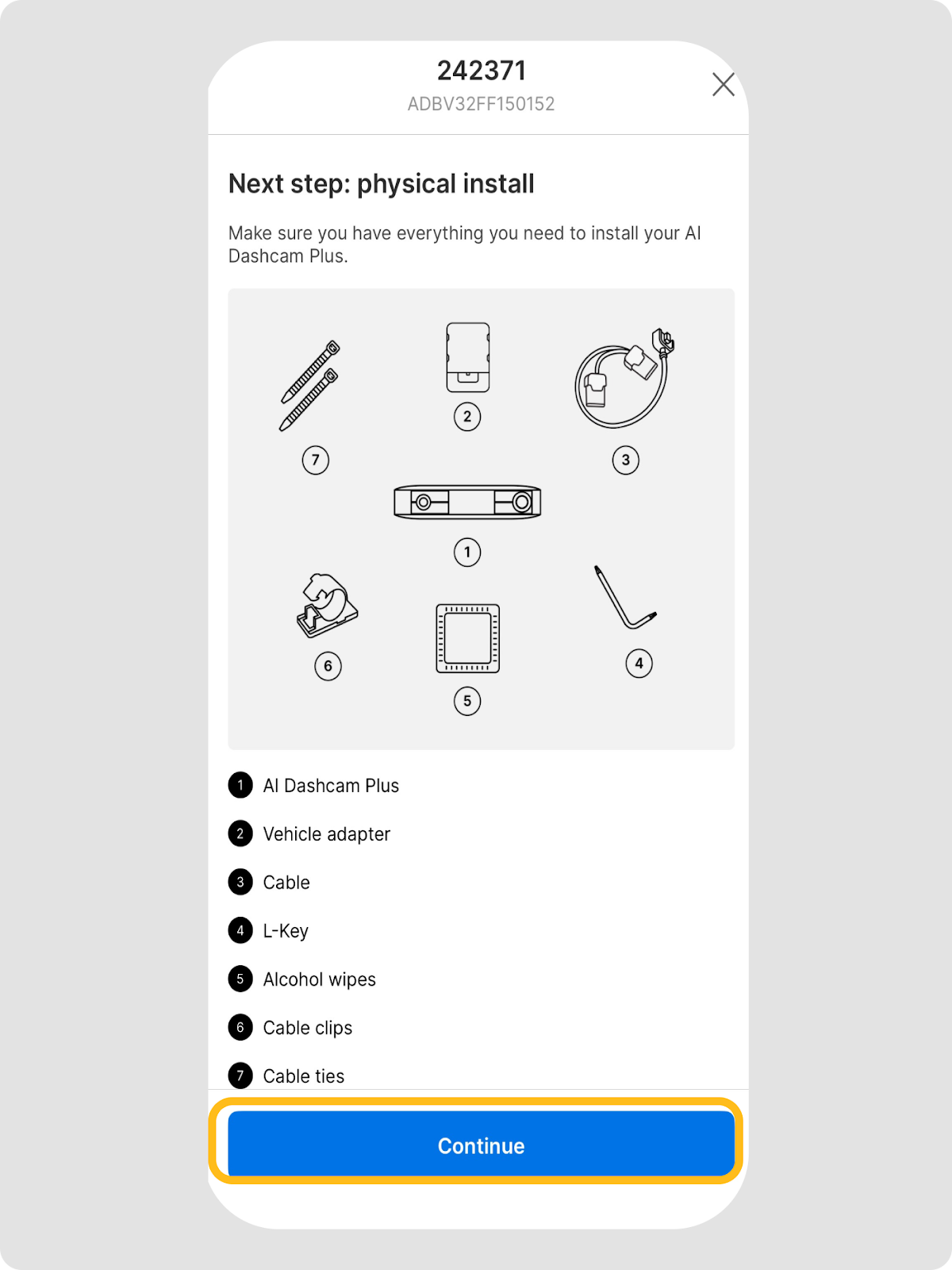

Once the AI Dashcam Plus is assigned to the Fleet App, it displays that the device is ready for physical installation. Tap Continue to start the physical installation.

unnamed (85).png




Note: Before starting the installation, ensure the following:

  1. The parking brake is engaged.
  2. The engine is off.
  3. The main power switch (if available) is turned off.

Selecting the required cable

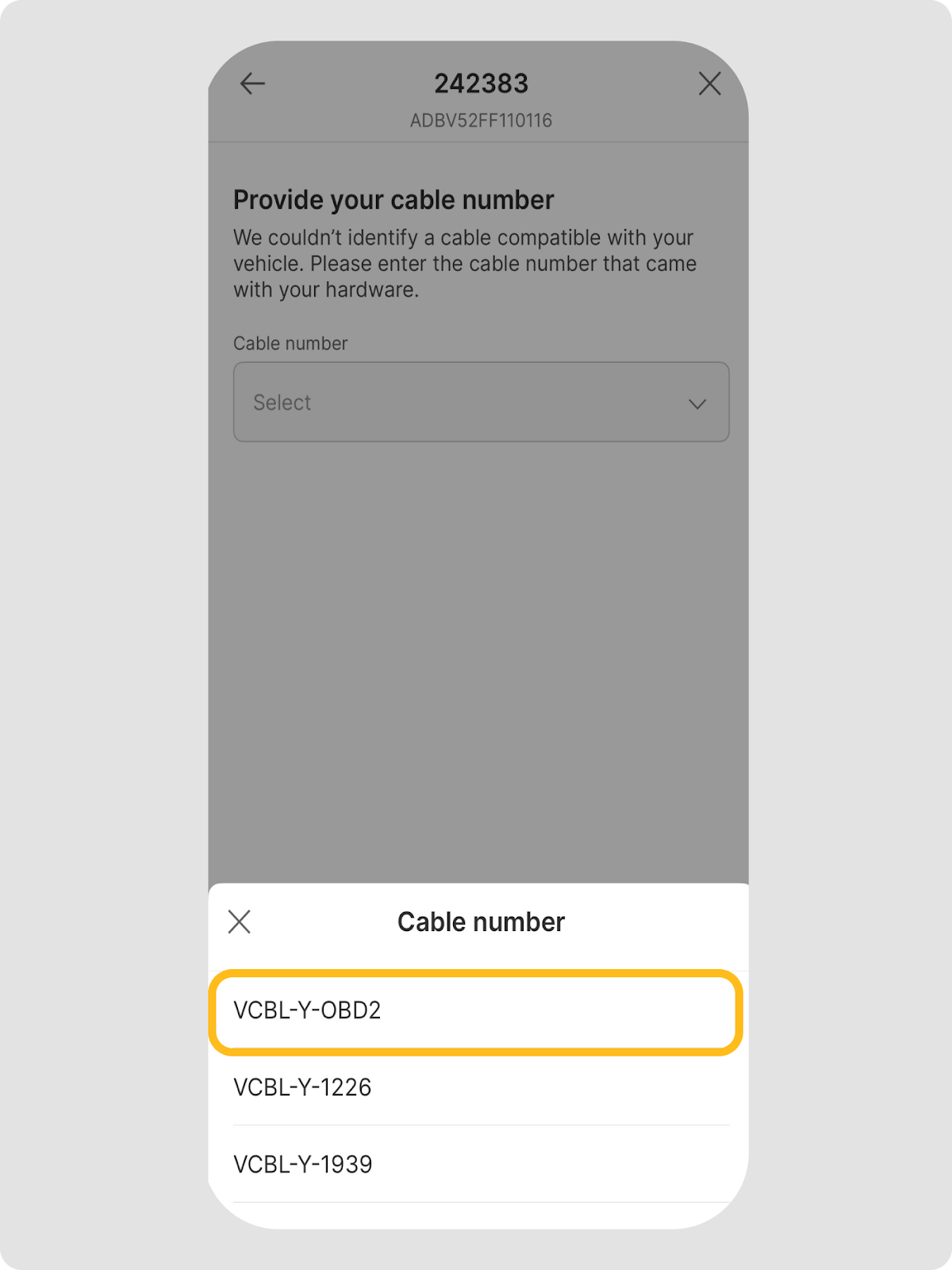

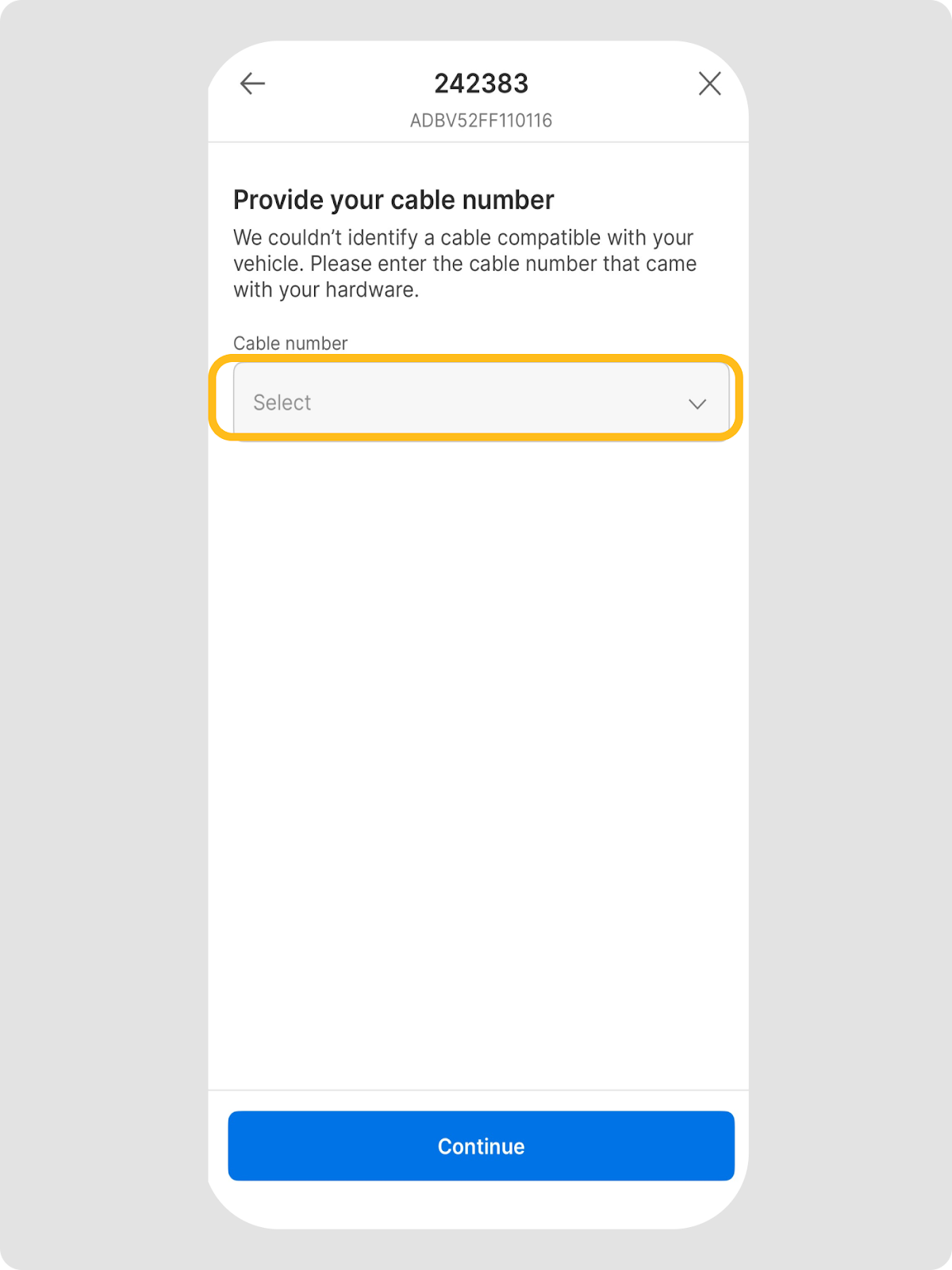

  1. Select the Cable number from the dropdown > Continue.
unnamed (86).png
unnamed (87).png
unnamed (88).png



Connecting the AI Dashcam Plus

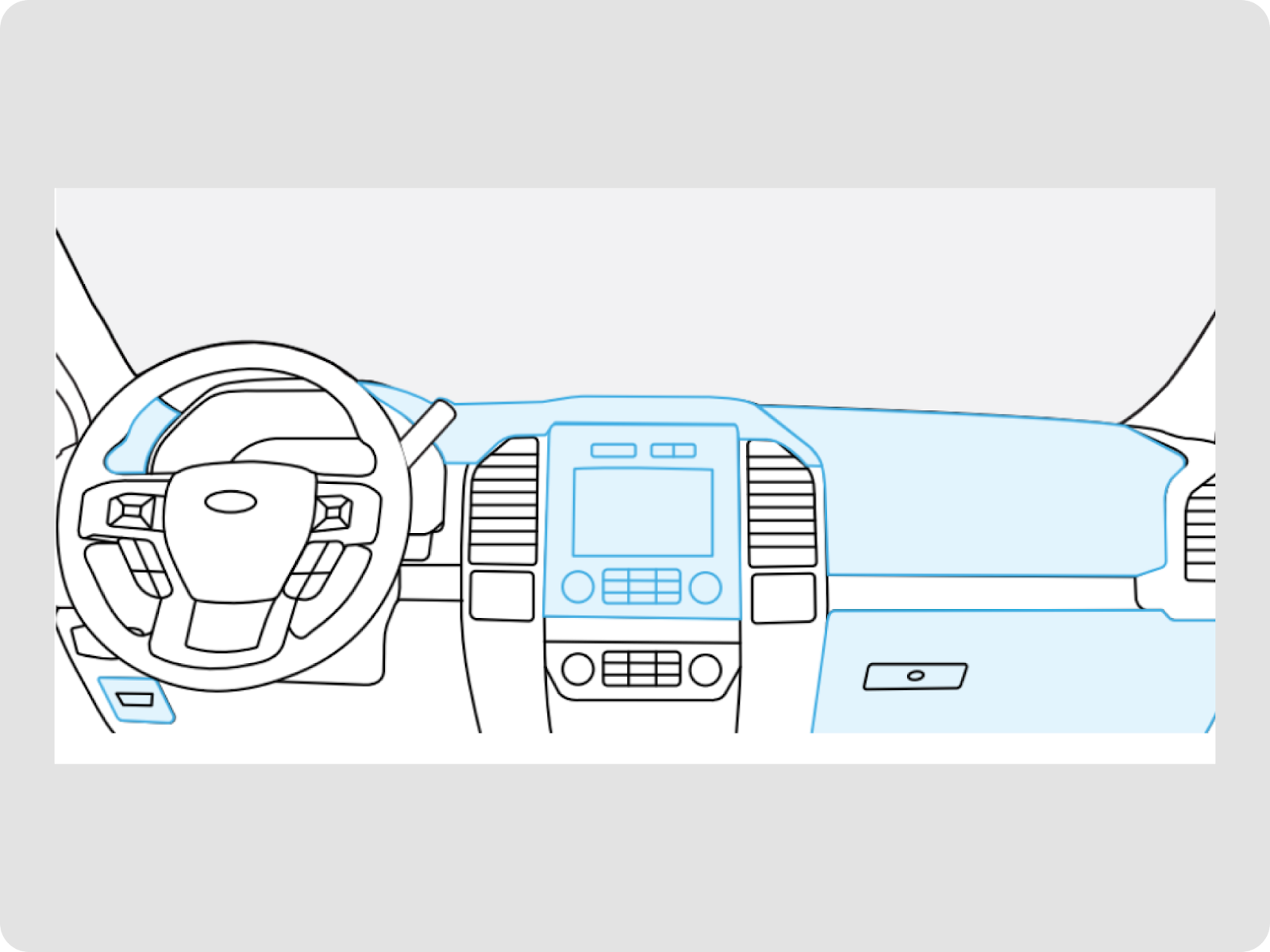

  1. The AI Dashcam Plus supports the following ports: RP1226, OBD-II, and J1939 (9-pin)
  • The diagnostic port location may vary depending on the vehicle. Refer to the images for the different locations for OBD-II, RP1226, and J1939.
  • Typical locations for the diagnostic port are:
    • Driver’s side footwell
    • Beneath the center console
    • Under the dashboard near the steering column
    • Near the fuse box
unnamed (89).png

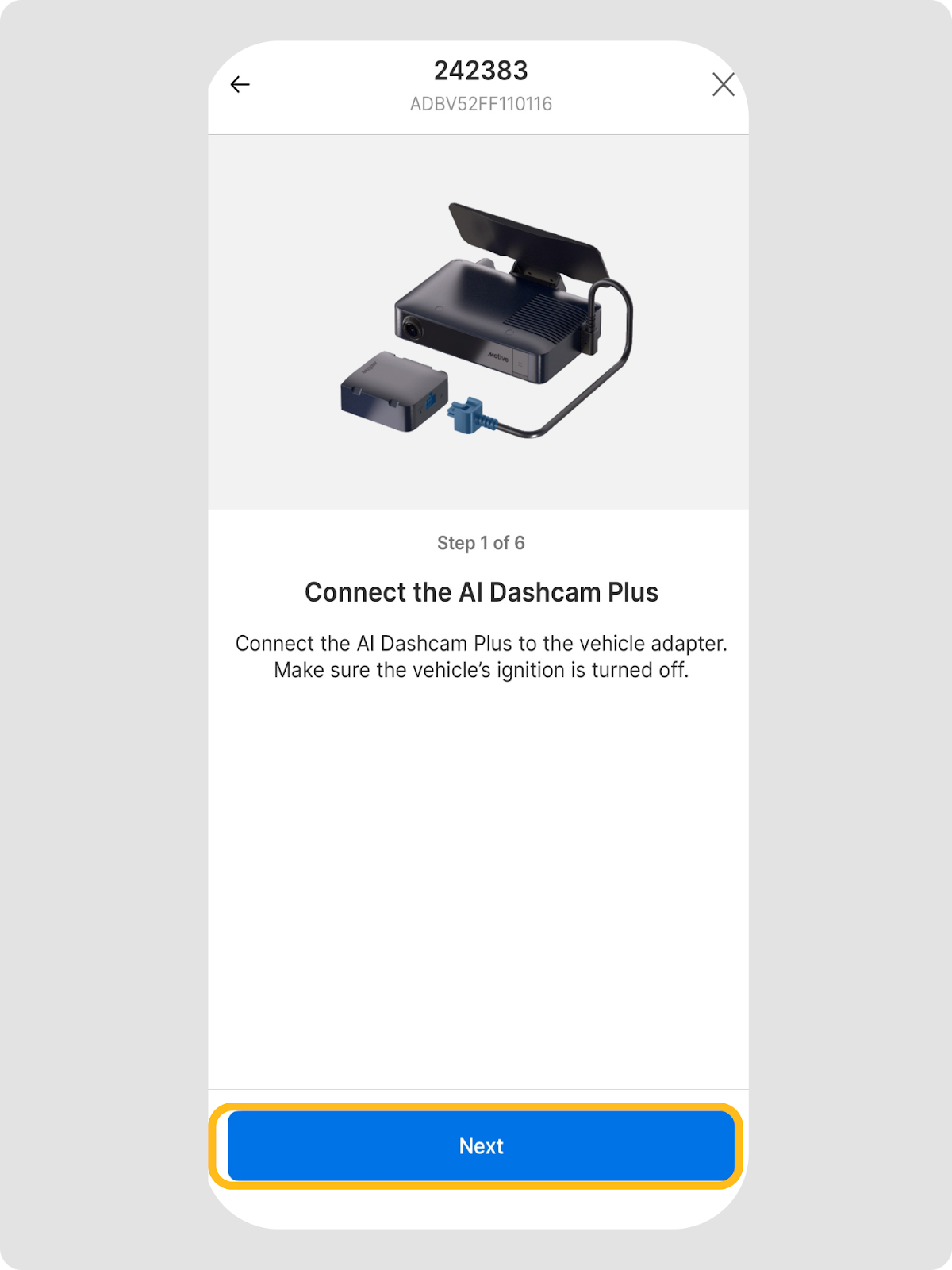

  1. Once done, tap Next on the Connect to AI Dashcam Plus screen.
unnamed (90).png

Plugging the AI Dashcam Plus into the vehicle adapter

  1. Identify the diagnostic port and make sure you have the correct cable for your vehicle.

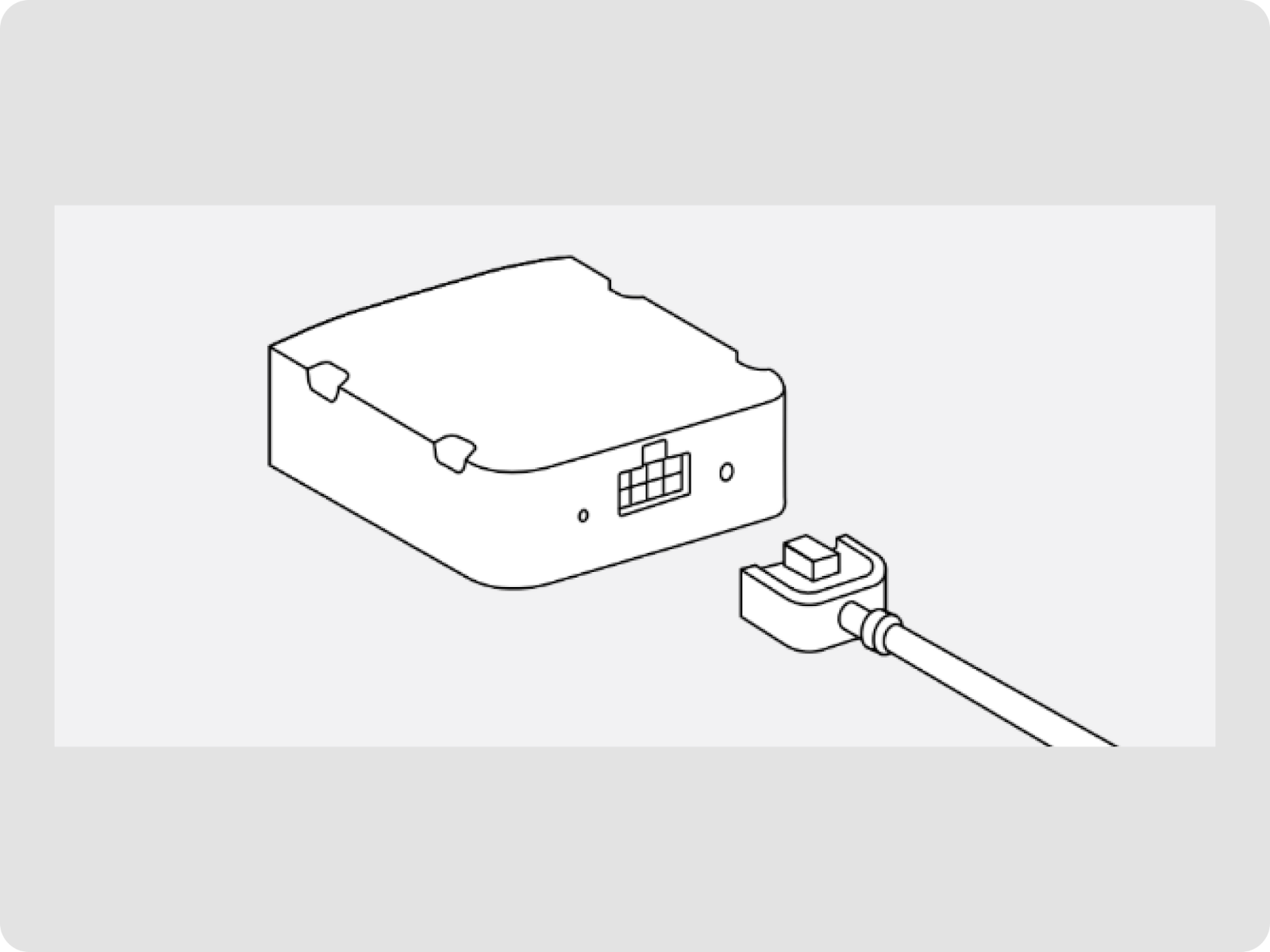

  2. Plug the AI Dashcam Plus into the Vehicle Adapter.
unnamed (91).png

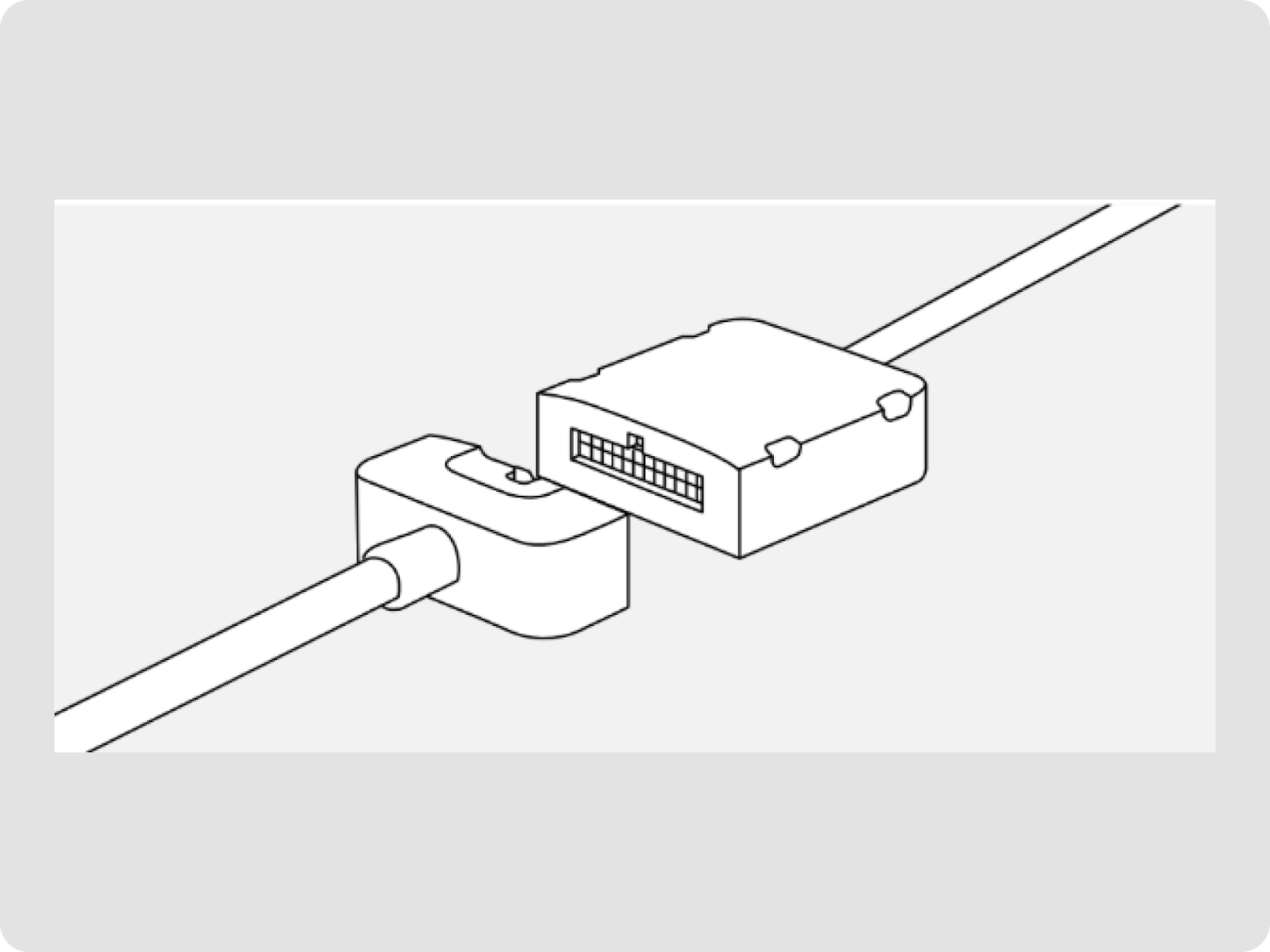

  1. Connect the vehicle adapter to the Motive-provided cable.
  2. Connect the other end of the cable to your vehicle’s diagnostic port.
unnamed (92).png

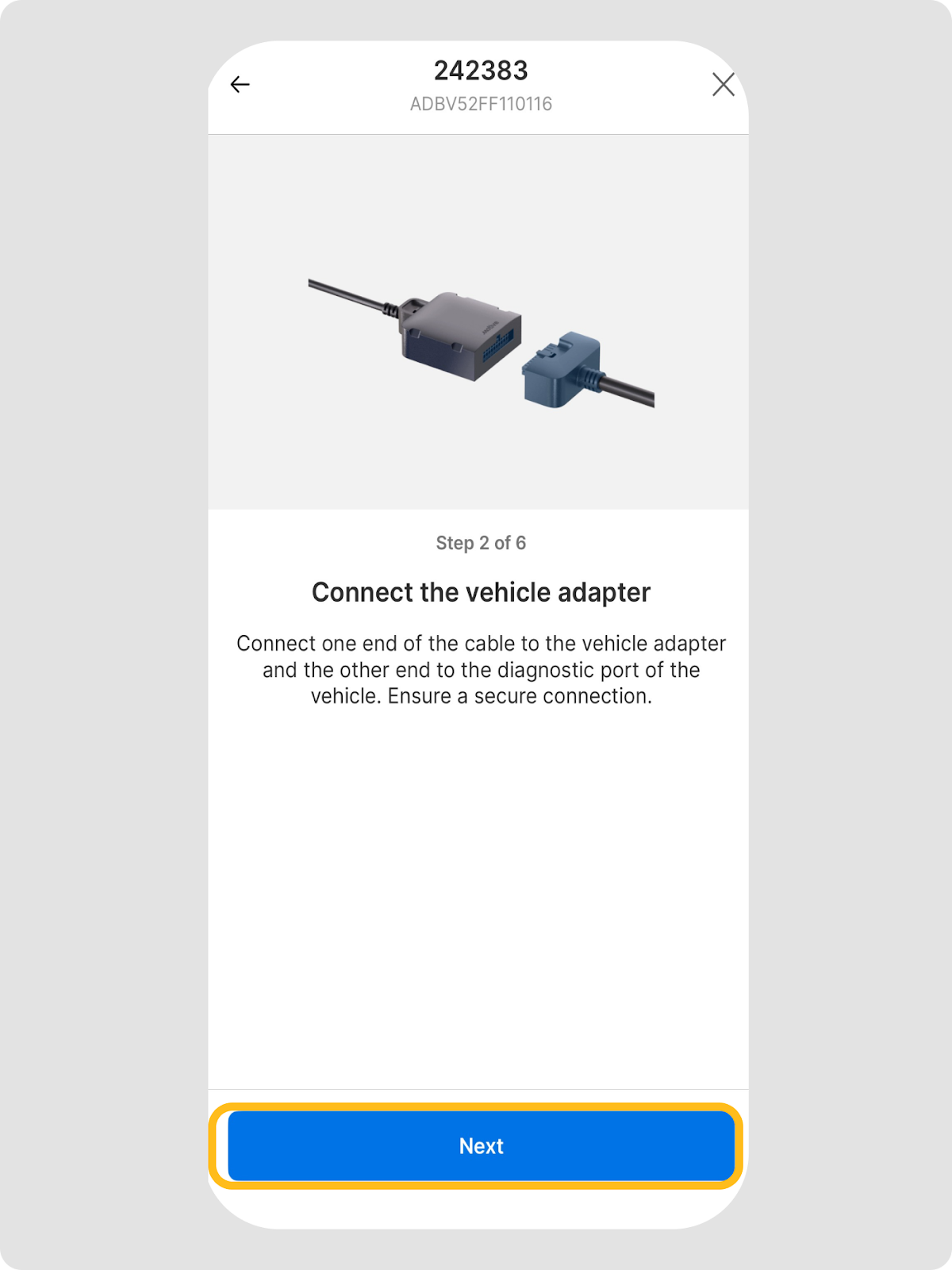

  1. Once done, tap Next on the Connect the vehicle adapter screen.
unnamed (93).png

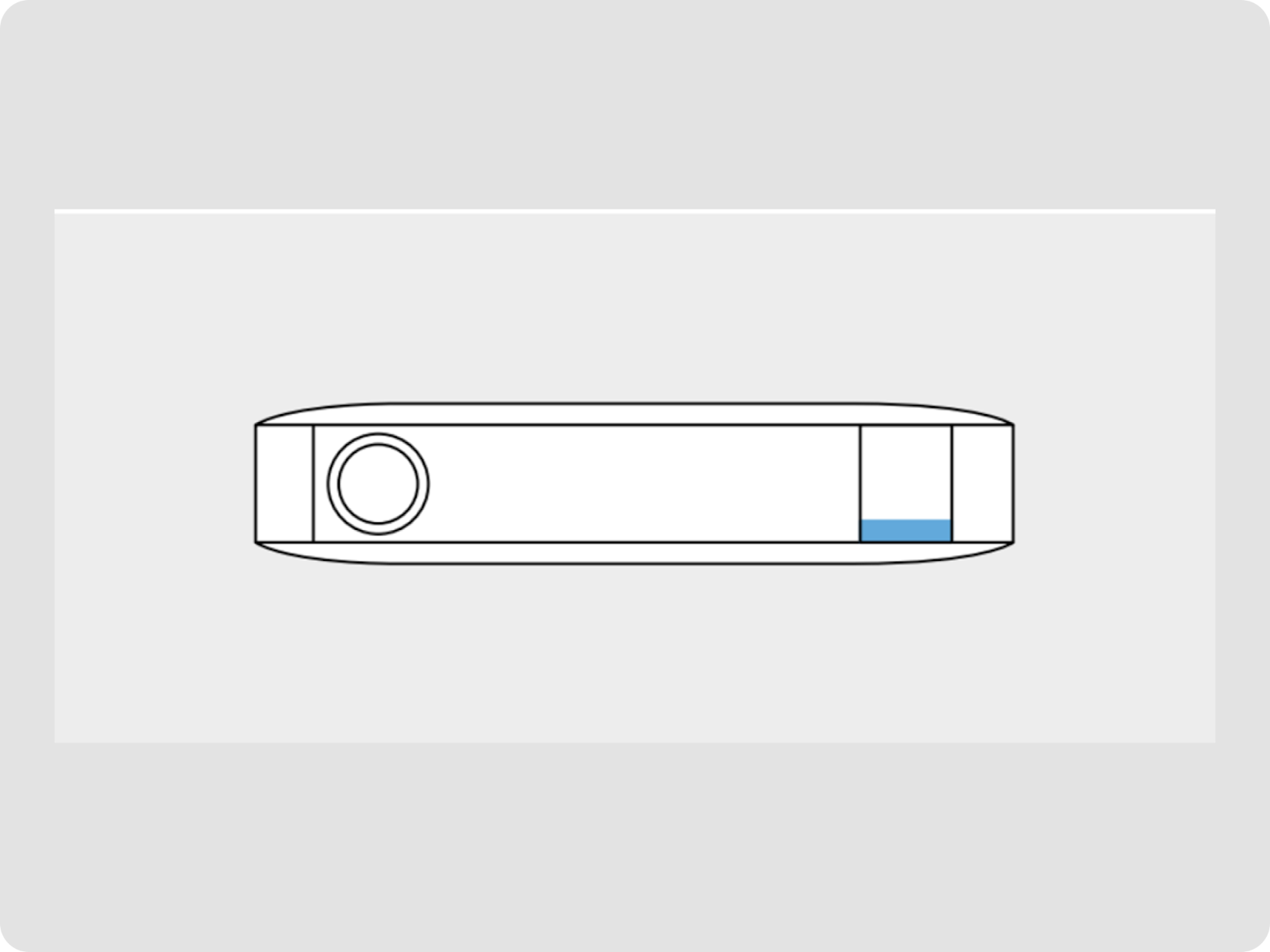

  1. This should power up the AI Dashcam Plus, and the right side LED on the AI Dashcam Plus should show solid blue after a few seconds of booting up.
  2. Do not mount the AI Dashcam Plus at this time to the windshield.
unnamed (94).png

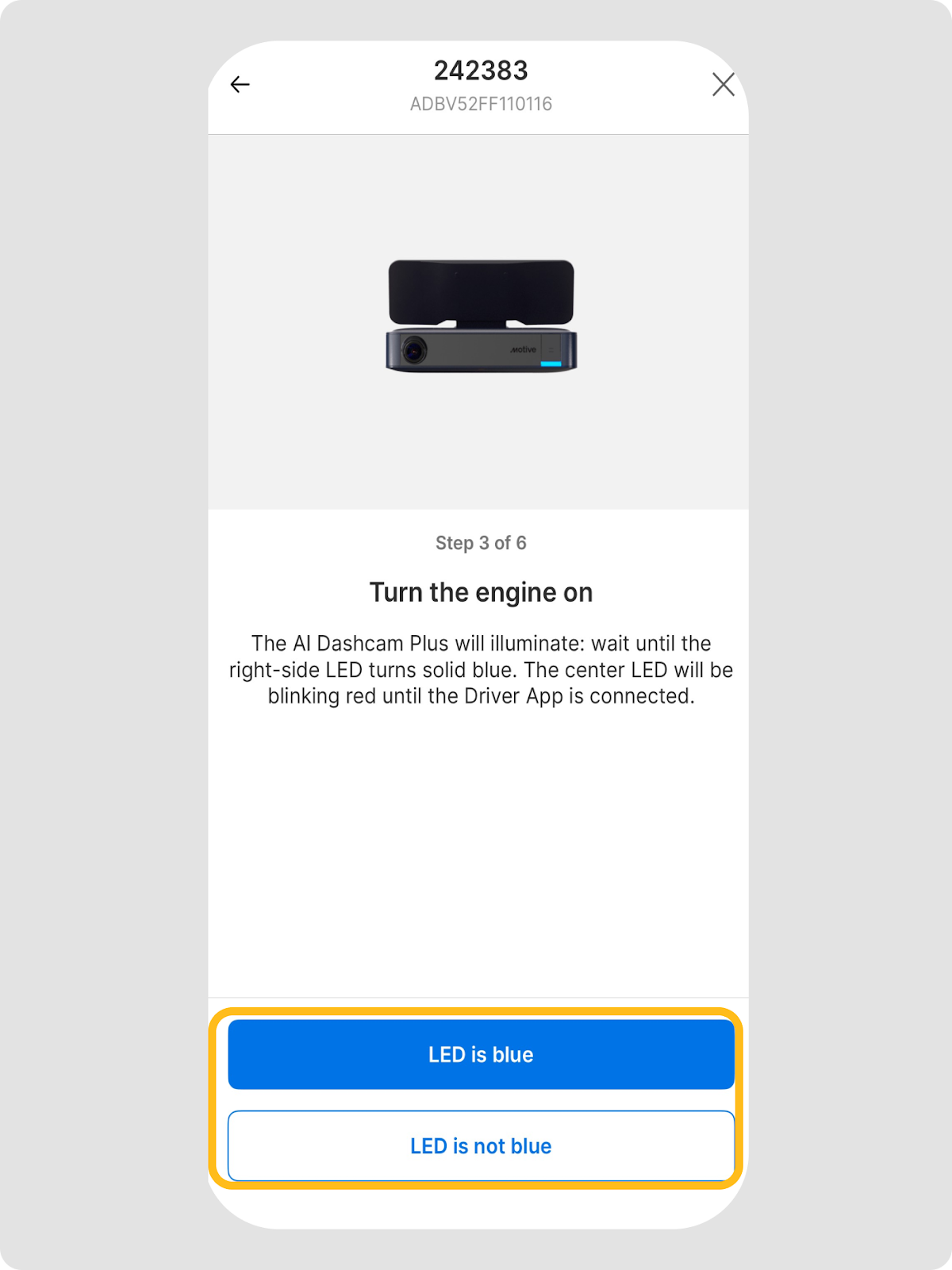

  1. Tap the current LED status option on Fleet App.
unnamed (95).png

Selecting a mounting location

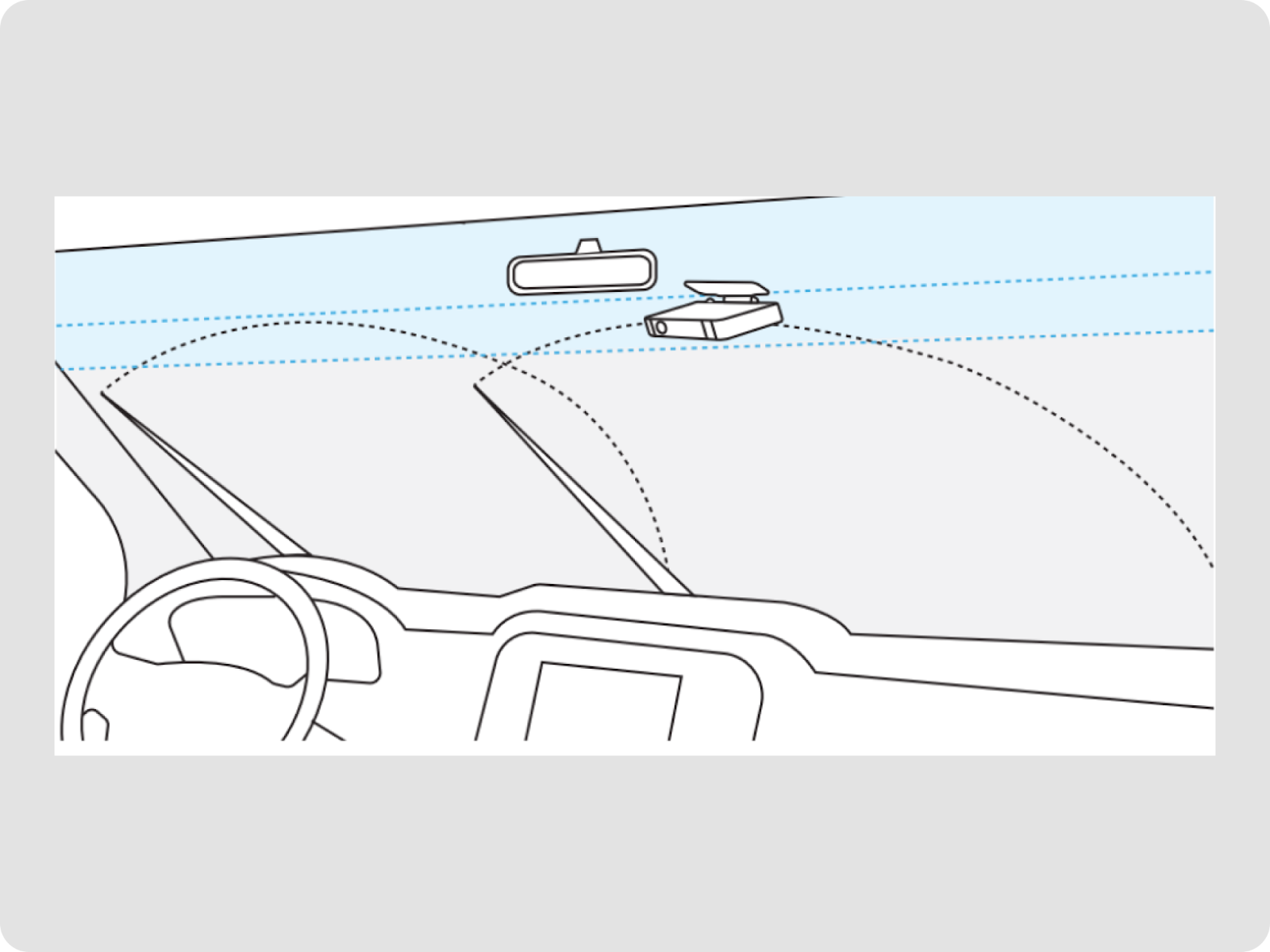

It is recommended to follow the FMCSA 49 CFR 393.60 guidelines when selecting the mounting location.

unnamed (96).png

Top Mount (Recommended)

  • Place the dashcam no more than 216 mm (8.5 inches) below the top edge of the area cleaned by the windshield wipers.
  • Best position: right side, just behind the rearview mirror.
unnamed (97).png

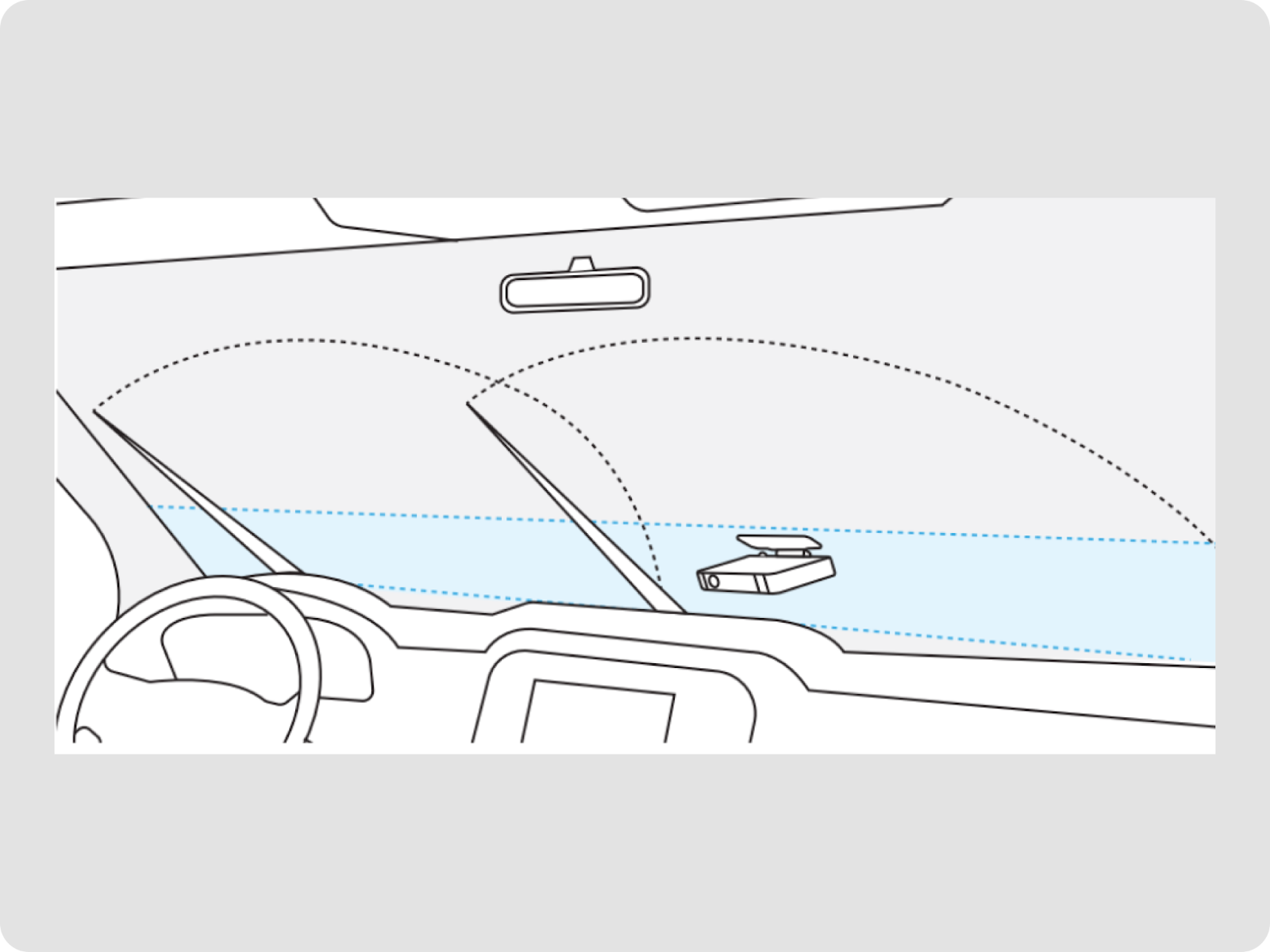

Bottom Mount (Alternative)

Note: This is the recommended mounting location for vehicles with external metal sun visors/overhangs.
  • Place the dashcam no more than 175 mm (7 inches) above the bottom edge of the area cleaned by the windshield wipers.
Note: Ensure the mounting location does not block the Driver’s view of the road or traffic signs. The lens is not blocked by the sun visors, rearview mirror, or shaded parts of the windshield.

Testing a mounting location

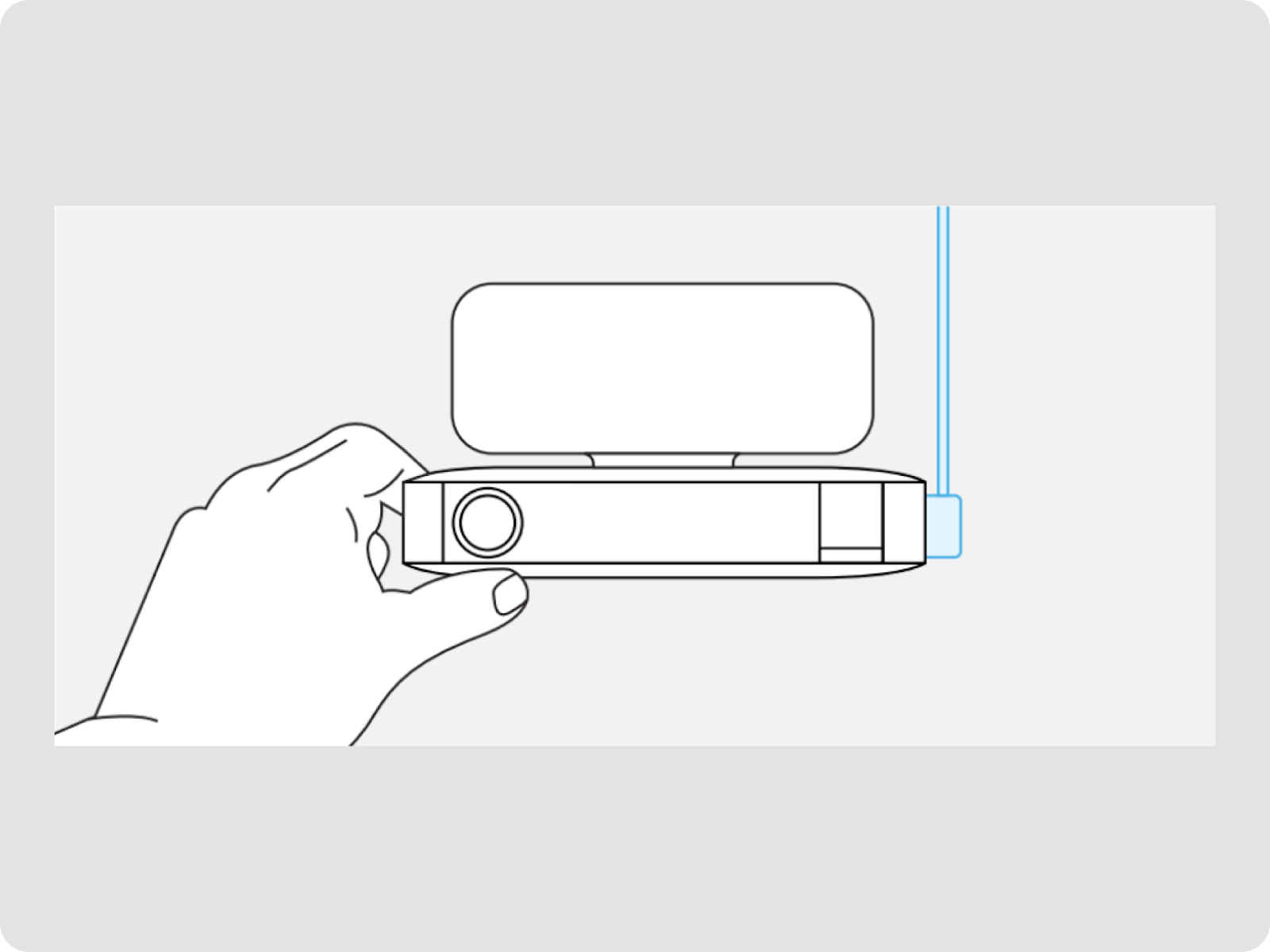

  1. Hold the dashcam against the selected location with the cable running from the top.
unnamed (98).png
  1. Set the camera angle

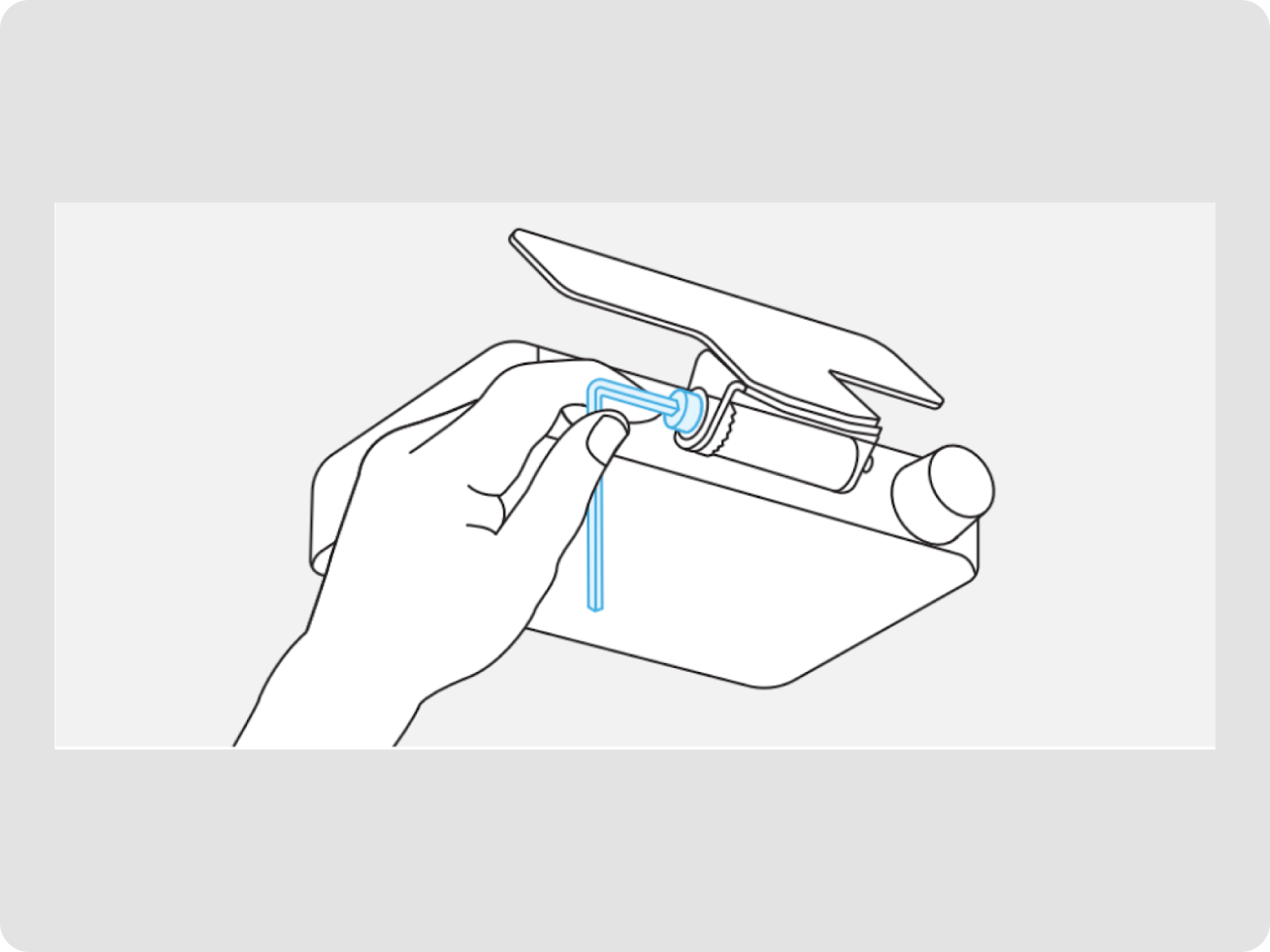

  2. Tighten the screw with the allen key and align the camera angle so that both the road and driver cameras remain visible.
unnamed (99).png

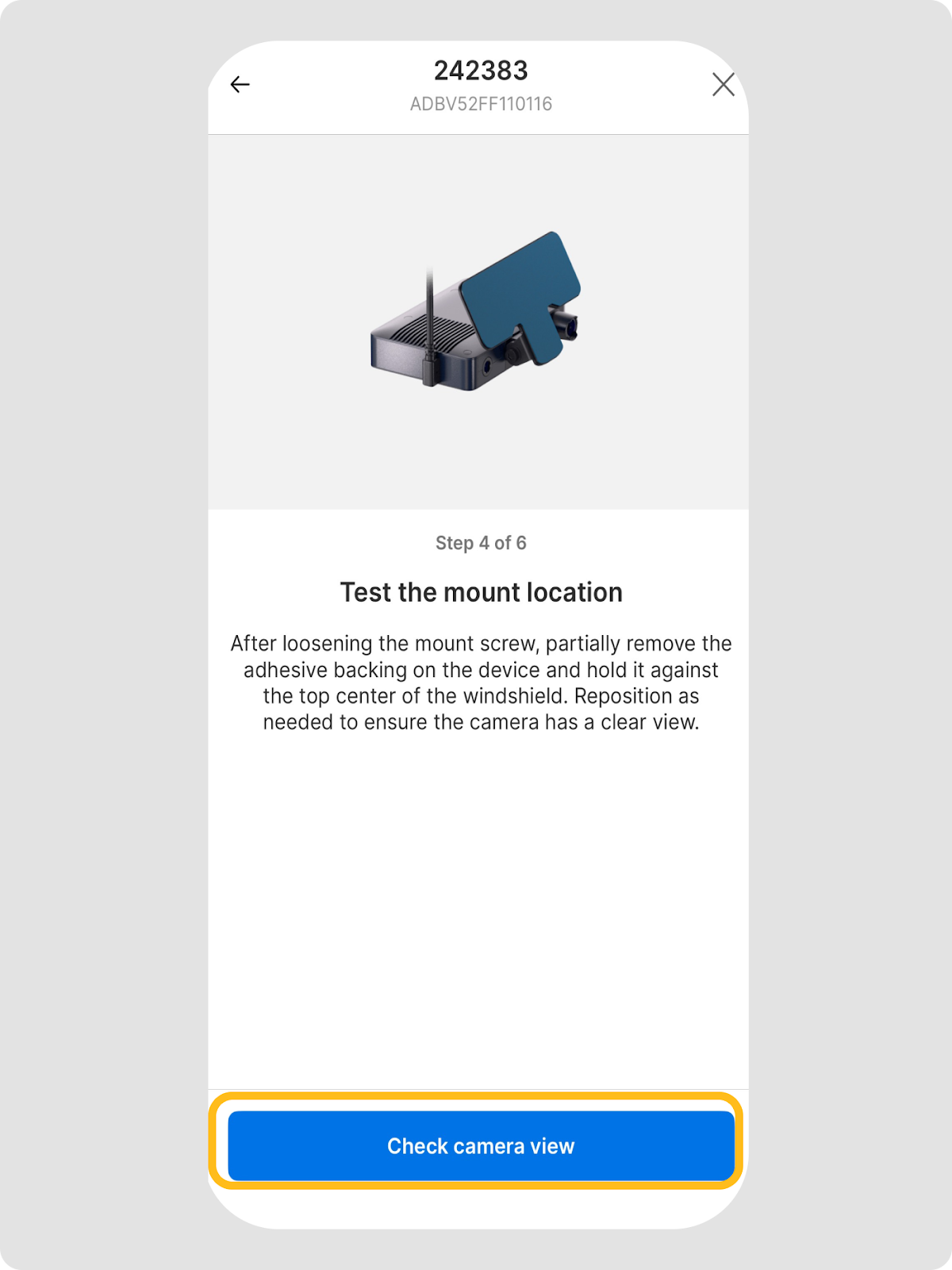

  1. Tap Check camera view on the Test the mount location screen.
unnamed (100).png

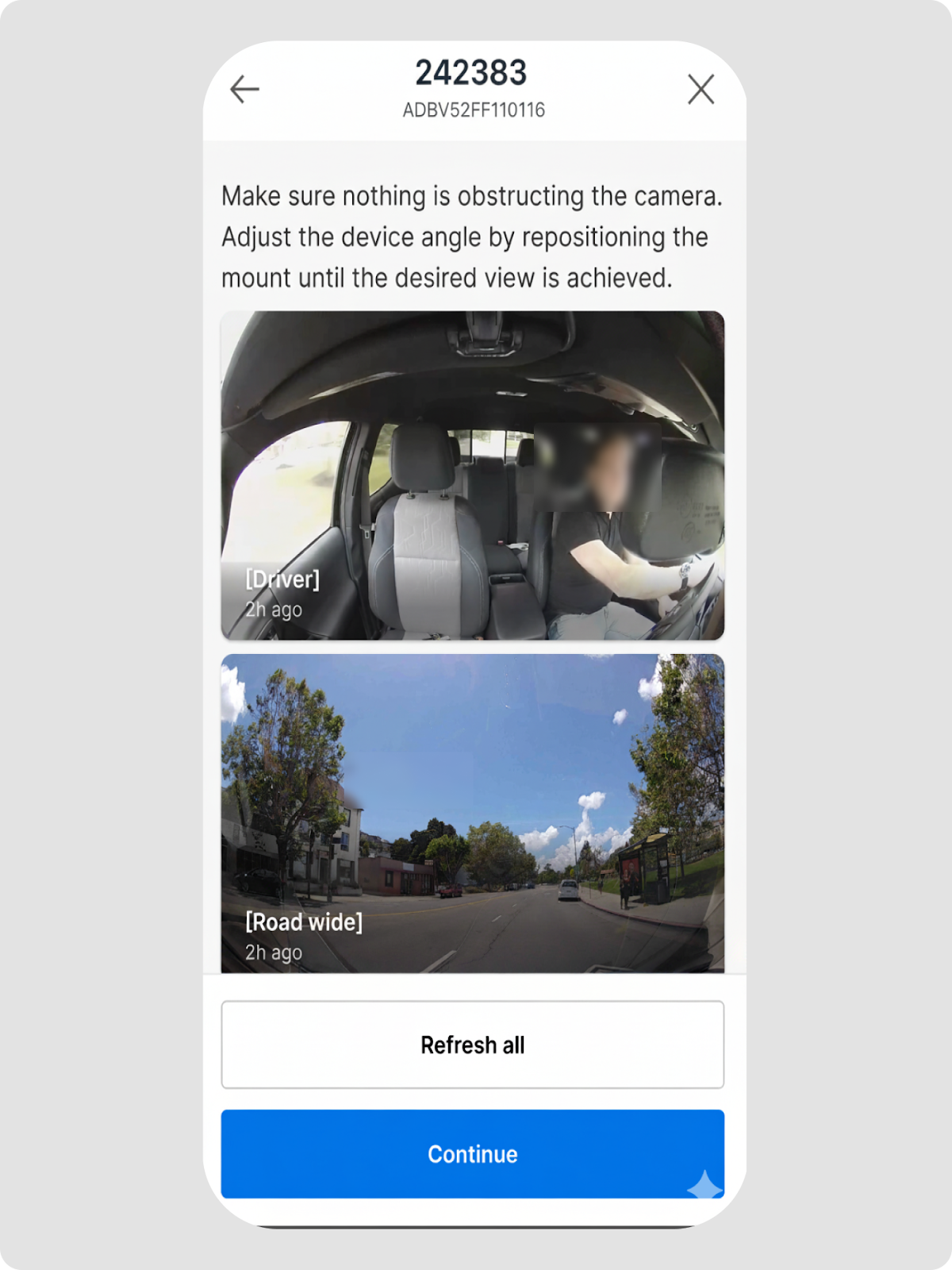

  1. The AI Dashcam Plus displays the camera view.
unnamed - 2026-01-06T122208.535.png

3. Mounting the AI Dashcam Plus

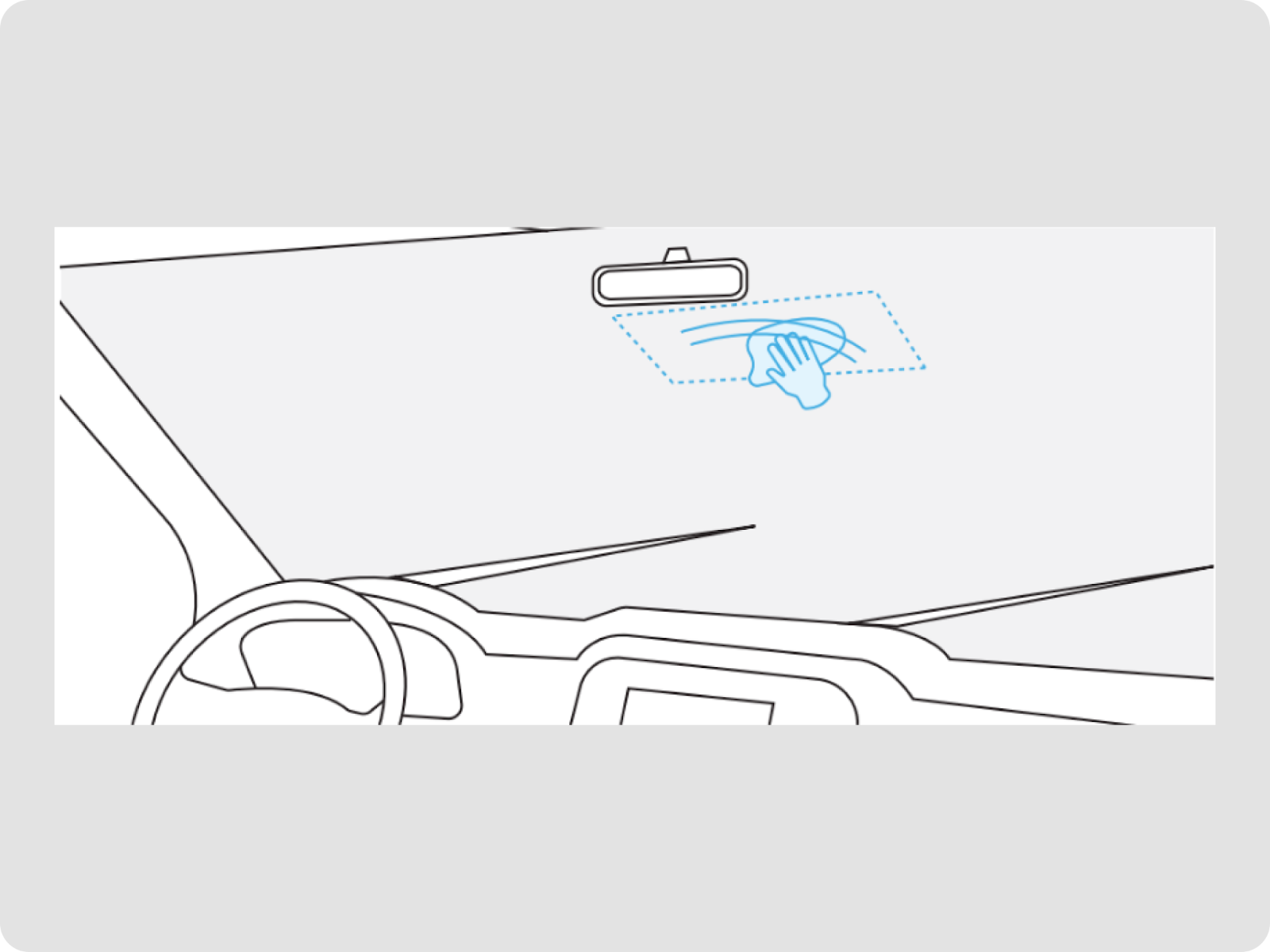

  1. Clean the mounting location with the provided wipes.
unnamed - 2026-01-06T122322.319.png

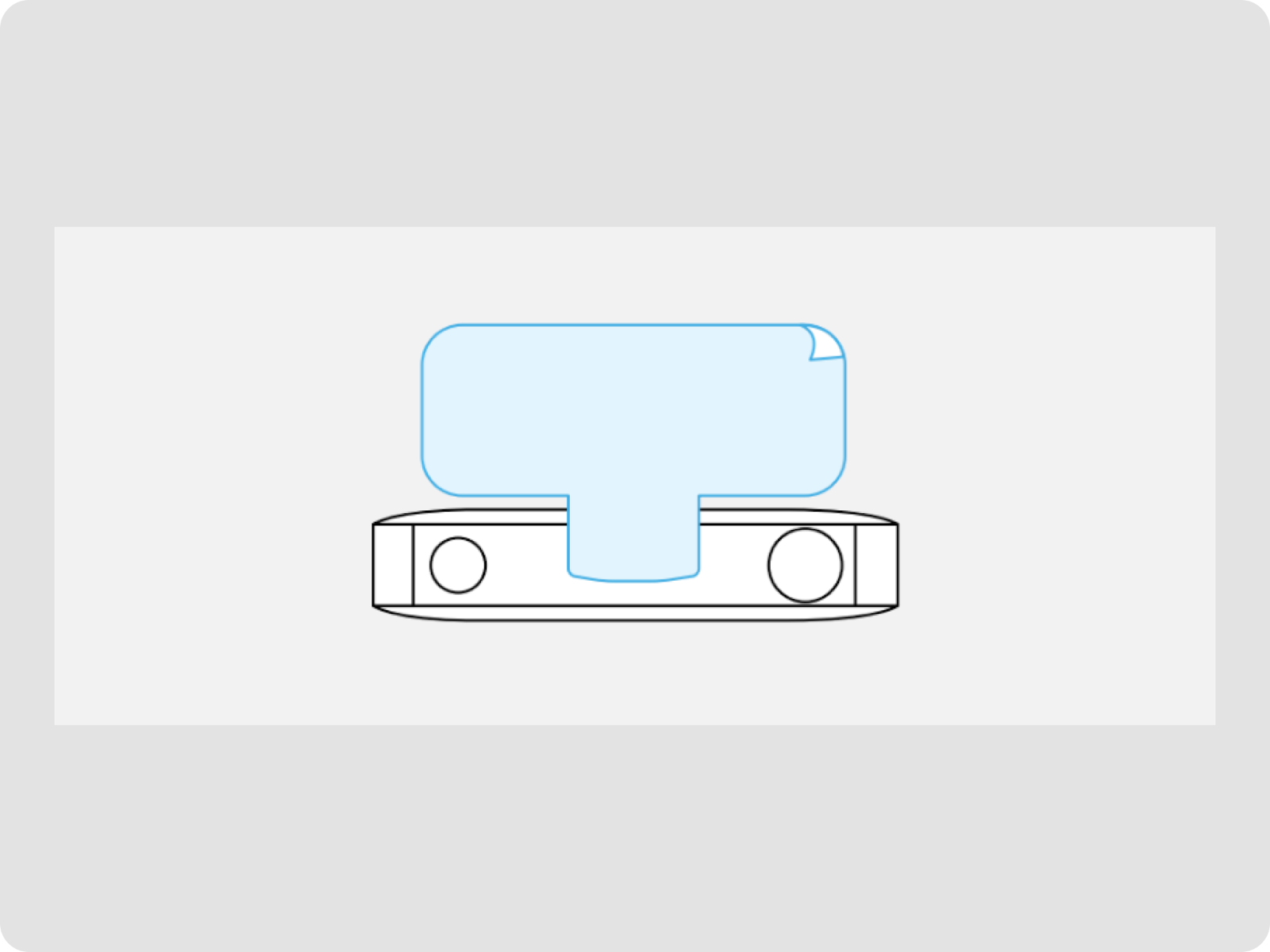

  1. Peel off the adhesive sticker from the mount.
unnamed - 2026-01-06T122423.083.png

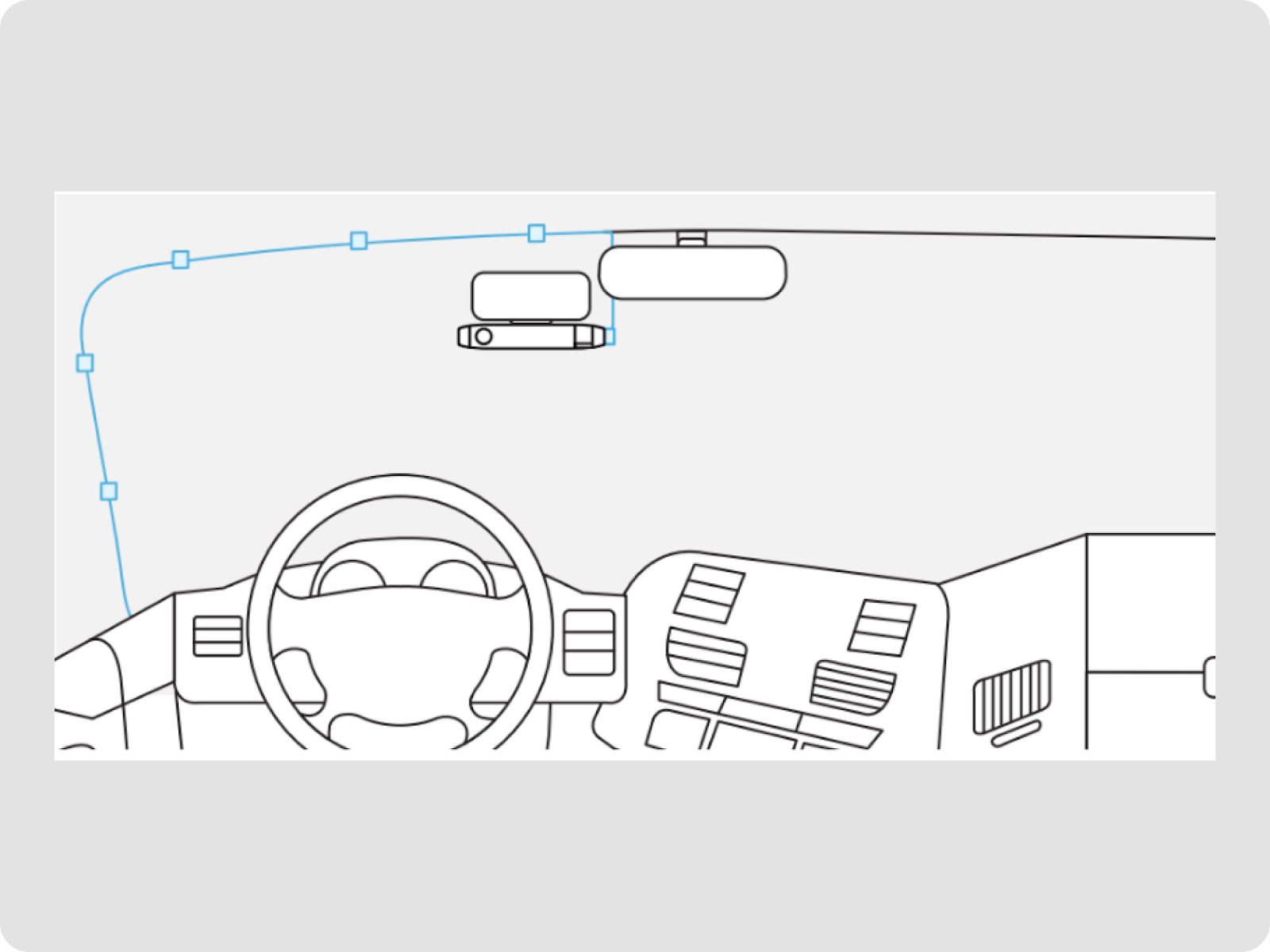

  1. Attach the dashcam (dual lens side facing the road) and press firmly for 10+ seconds.
  2. Use cable clips to secure the cable.
unnamed - 2026-01-06T122507.617.png

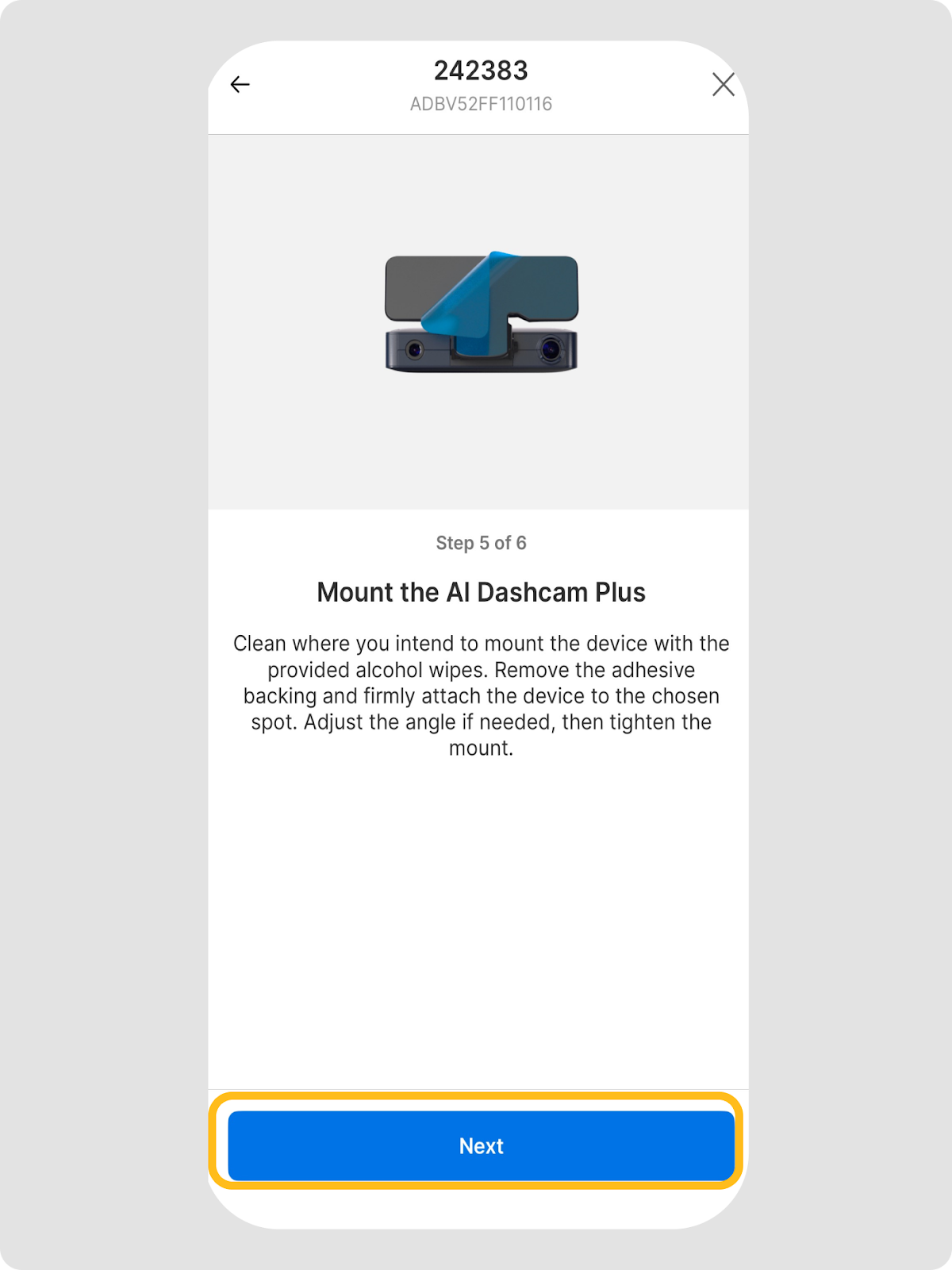

  1. Once done, tap Next on the Mount the AI Dashcam Plus screen.
unnamed - 2026-01-06T122646.739.png

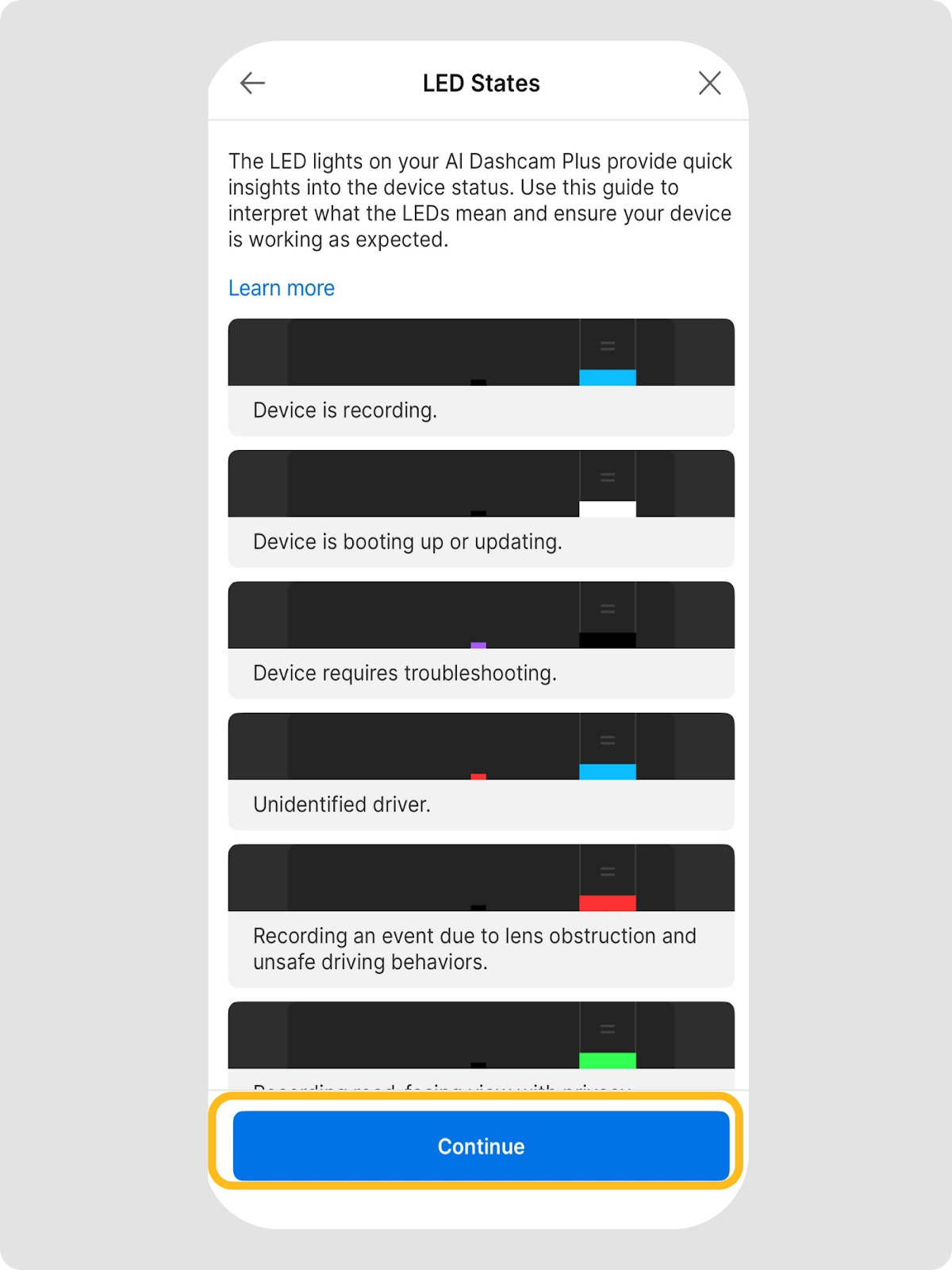

  1. Learn about the LED states and tap Continue.
unnamed - 2026-01-06T122758.609.png

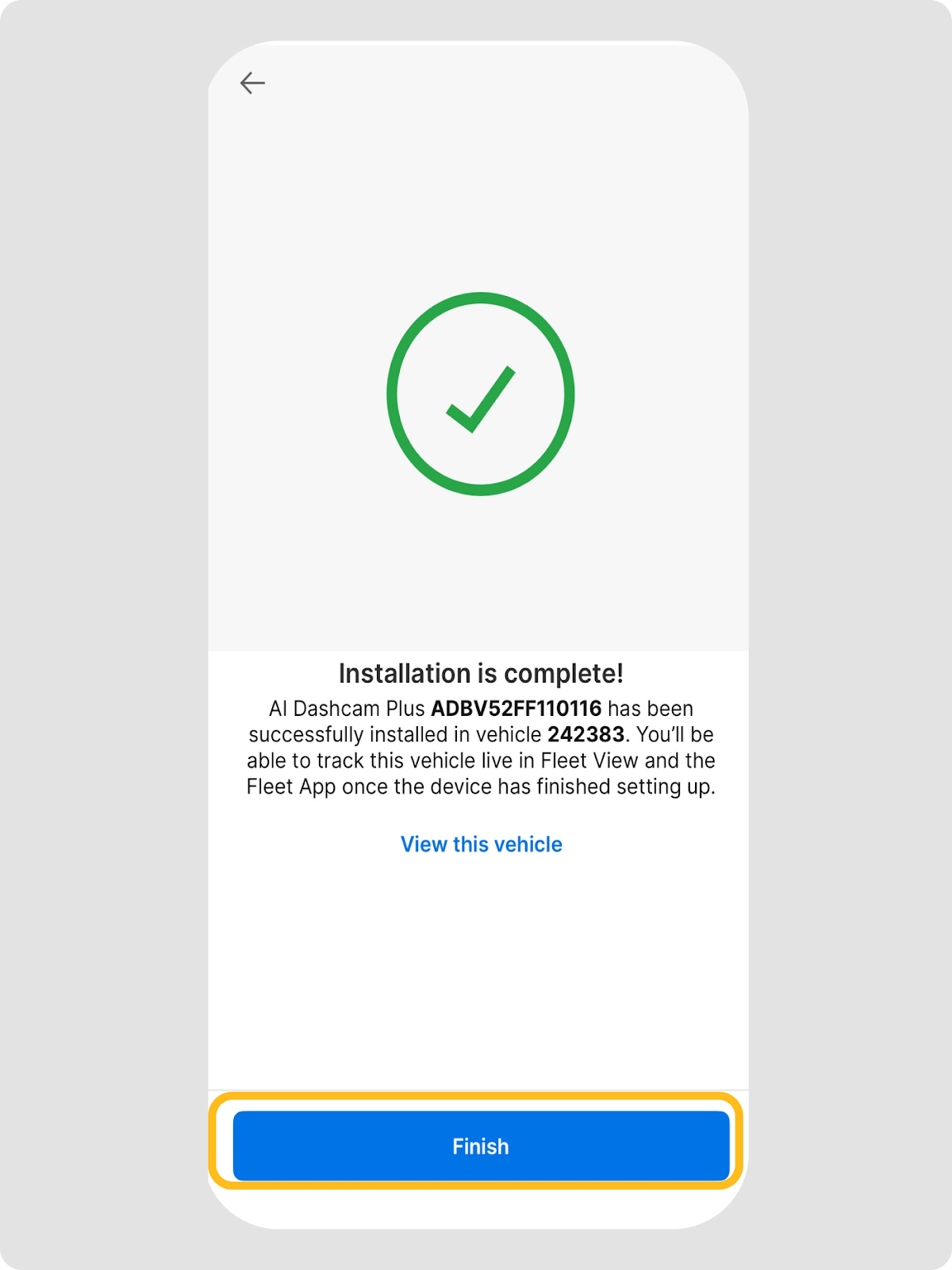

  1. The physical installation is now completed, tap Finish.
unnamed - 2026-01-06T122950.712.png

Battery & Safety Warnings

  • Do not replace the battery
  • Avoid fire, high temperatures, and mechanical damage
  • Low/high pressure or temperature may cause an explosion or a leak.

Common LED states of AI Dashcam Plus

The LED indicators on the AI Dashcam Plus display various statuses and provide visual alerts for unsafe driving behaviors.

Connectivity LED

Trigger LED LED Duration Audio (Voice) Audio Duration
Unidentified Driver Blinking red Persistent (Until resolved) ✔ Periodic
Hardware Issues Solid purple Persistent (Until resolved) ✘ ✘
The device is working normally  Off   ✘ ✘
Device powered off  Off   ✘ ✘

 Connectivity LED

AI Dashcam Alerts

When the AI Dashcam Plus notices unsafe driving (like speeding or using a phone), it warns the Driver right away using lights and sounds.

To turn on these in-cab alerts, go to the  Motive Fleet Dashboard and enable the settings.

Trigger LED LED Duration Audio (Voice) Audio Duration

Booting

Firmware update

 Blinking white Persistent ✘ ✘
Recording Solid blue Persistent ✘ ✘

Live stream active

Quick capture active

 Blinking blue Persistent ✘ ✘
Recording Solid green Persistent ✘ ✘
Live stream active  Blinking green Persistent ✔ Once, when initiated

Hard acceleration

Hard brake

Hard cornering

Stop sign violation

 Blinking red Once ✔ Once, when initiated

Speeding

Close following

Seatbelt violation

Cell phone

 Blinking red Periodic (Until resolved) ✔ Periodic
Lens obstruction Blinking red Persistent ✔ Periodic




FAQs



What is AI Dashcam Plus Configurable Storage?

AI Dashcam Plus (DC-63/64) video quality and available footage storage are as follows:




DC64

Road - Wide camera,

Driver camera

Road - Zoom camera



Optimized quality and footage (recommended)

36 hours High Res,

120 hours Standard Re

 8 hours
Most available footage 160 hours  None
Highest video quality 39 hours 8 hours





DC63

Road - Wide camera,

Driver camera

 Road - Zoom camera
Optimized quality and footage (recommended)

54 hours High Res,

180 hours standard res

 8 hours
Most available footage 254 hours  None
Highest video quality 65 hours 8 hours

What is the difference between AI Dashcam Plus and AI Dashcam?

The table below compares AI Dashcam Plus and AI Dashcam/Vehicle Gateway features currently available.




Product Area Feature AI Dashcam Plus  AI Dashcam / Vehicle Gateway
Driver Safety
Video Recall

Video recall






3 cameras

(Road Wide

Road Zoom

Driver)

2 cameras:

(Road

Driver)



Safety - Instant risk detection Close following Available Available
Stop sign violation Available Available
Cell phone usage Available Available
Seat belt violation Available Available
Hard braking Available Available
Hard acceleration Available Available
Hard cornering Available Available
Speeding over posted Available Available
Speeding over policy Available Available
Collision Available Available
Near collision Available Available
Distraction Not Available Available
Unsafe lane change Not Available Available
Drowsiness Not Available Available
Forward collision warning Not Available Available
Obstructed camera Not Available Available
Unsafe parking Not Available Available
Lane swerving Not Available Available
Smoking Not Available Available
Driver coaching Motive Safety Team Available Available
Custom unsafe behavior detection Available Available
Event Severity Available Available
Driver App coaching Available Available
Coaching Sessions Available Available
Customizable Safety Score Available Available
Accident management Collision detection/video upload Available Available
Video recall Available Available
Automated collision reporting Available Available
First Responder Available Available
360-degree visibility Live trip images Available Available
Engine-off recording Not Available Available
In-cab audio recording Available Available
Quick Capture Available Available
Driver Privacy Mode Available Available
Customizable video quality and available footage Available Available
Camera health (installation issues, disconnects) Available Available
Live Streaming Not Available Available
Fleet Management
Tracking & Telematics Live Map View Available Available
Trip History Available Available
Vehicles Available Available
Drivers Available Available
Geofences Available Available
Face Match (not available in IL) Not Available Available
GPS/Hardwired Mode Not Available Available
Static Pairing Available Available
Dispatch Available Available
PTO/AUX Not Available Available
Compliance ELD US compliance Available Available
ELD Canada compliance Not Available Available
Proprietary LDV Odometer Not Available Available
Sustainability Usage Available Available
Idling Available Available
Fuel Performance Available Available
CO2 Estimates Available Available
EV Trips Not Available Available
Maintenance Fault Codes Available Available
Schedules Available Available
DVIR Available Available
History Available Available
Workforce Management
Workforce Management Timecards Available Available
Driver Qualification Available Available
Training Available Available
Platform
Platform Motive Analytics Available Available
Driver App Available Available
Fleet App Onboarding Not Available Available
