How to switch vehicle mode from regulated to unregulated (or vice versa) using Driver App

    Audience Drivers
    Applies To  Driver App (V60.1 or above), Cellular-enabled Vehicle Gateway



    Introduction

    Motive supports the ability for drivers to switch vehicle mode from Unregulated (non-CMV) to Regulated (CMV) or vice versa. When Fleet Admins enable the switching from Fleet Dashboard, drivers can switch vehicle mode using the Motive Driver’s App by following the steps below.



    Steps: Switching vehicle mode in Driver App

    1. Open the Motive Driver App and tap on Logs.


    2. Tap on Current Vehicle.


    3. On the Select Vehicle page, select the vehicle you want to switch the mode for.


    4. Tap Accept on the prompt with Use your Bluetooth.


    5. Once you establish the Bluetooth connection with your Vehicle Gateway, return to the Home screen and the Driver Hub.

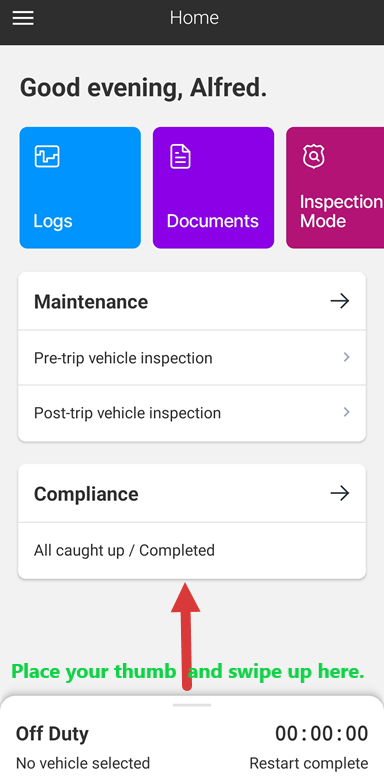

    6. Place your thumb on your Duty Status and swipe up.



    7. Choose among the two options, Regulated or Unregulated.

    Note: Before you switch the mode, please make sure your vehicle engine is off, and the Vehicle Gateway LEDs are blinking green (if you do not see the Vehicle Gateway LEDs blinking green, refer to this troubleshooting guide-Vehicle Gateway issues.)

    This ensures the telematics data is accurately recorded on the ELD outputs (i.e., log pdf, output file).




    8. Switch the prompt and hit Yes. It takes around 5-10 secs to update the mode successfully.


    9. Hit Done or close the prompt to see the updated mode.





    Note: Select an appropriate duty status before driving in Unregulated mode and annotate your logs as Unregulated driving. This will give additional context to DOT officers during roadside inspections.
