This article provides a detailed list of supported cables, including their purpose, use cases, and installation resources.
Overview
Motive offers a variety of cables for connecting the AI Dashcam Plus.
- Heavy Duty Vehicles: Supports vehicles like Peterbilt, Kenworth, Freightliner Cascadia, and International.
- Light Duty Vehicles: Supports vehicles like Ford, GM, Mercedes, Chrysler, Hyundai, Fiat, Citroen, Peugeot, Volkswagen, and Audi.
- Specialty Vehicles: Supports vehicles like Volvo, Mack, and Freightliner.
Cables for Heavy-Duty Vehicles (J1939 / RP1226)

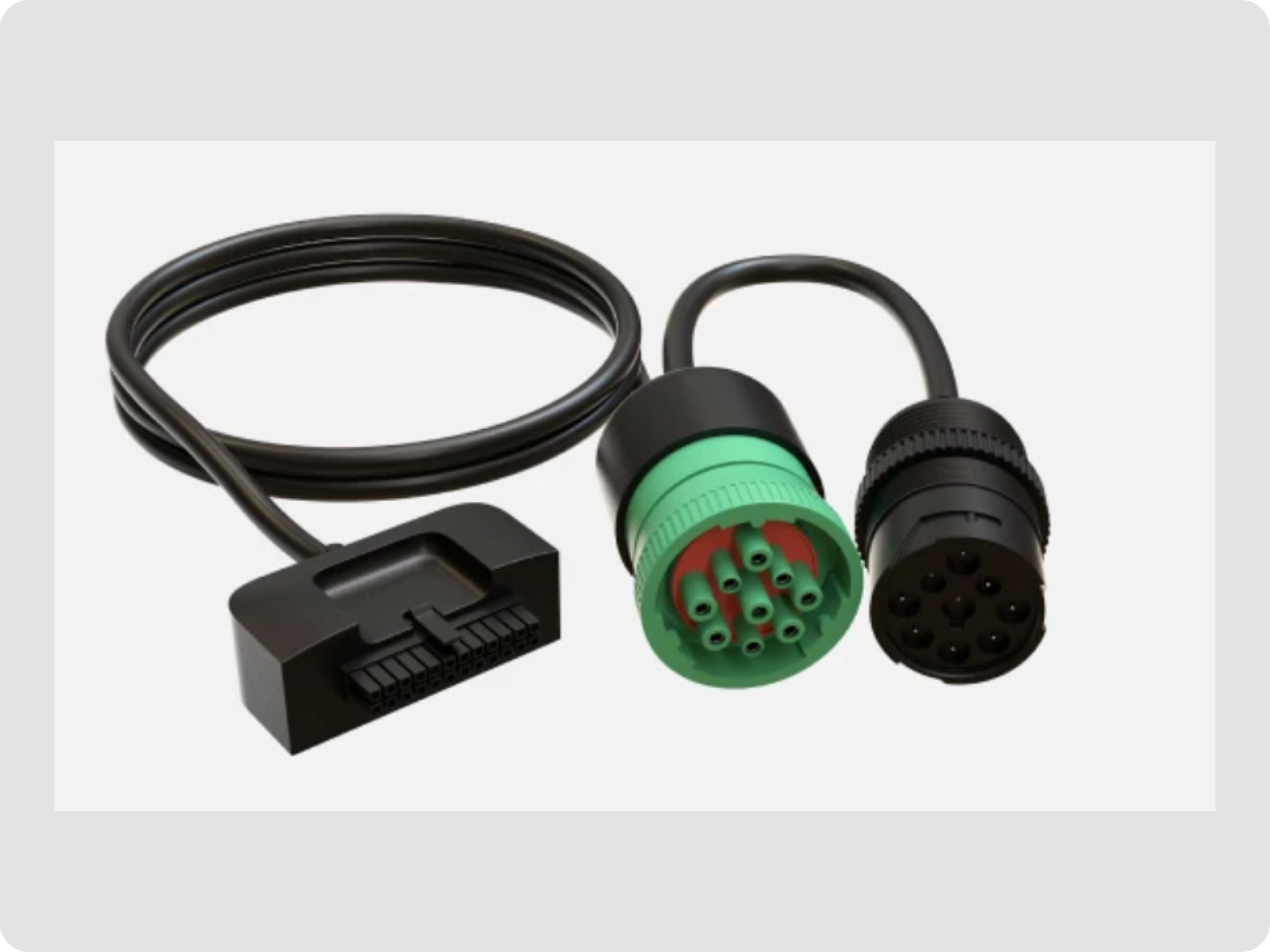

Cable VCBL-Y-1939: 9-Pin J1939 Y-Cable
Heavy-duty Y-cable for vehicles with J1939 9-pin (Type 1 & Type 2) diagnostic ports. Supports Direct Connection and Y-cable installations with multiple mounting clips.
| Note: Attach the appropriate mounting clip on the connector (P3) - match up the colored line with the white line on the connector |
Mounting clips provided in the box:
Example: PETERBILT 357 (2005), Kenworth T680 (2019)

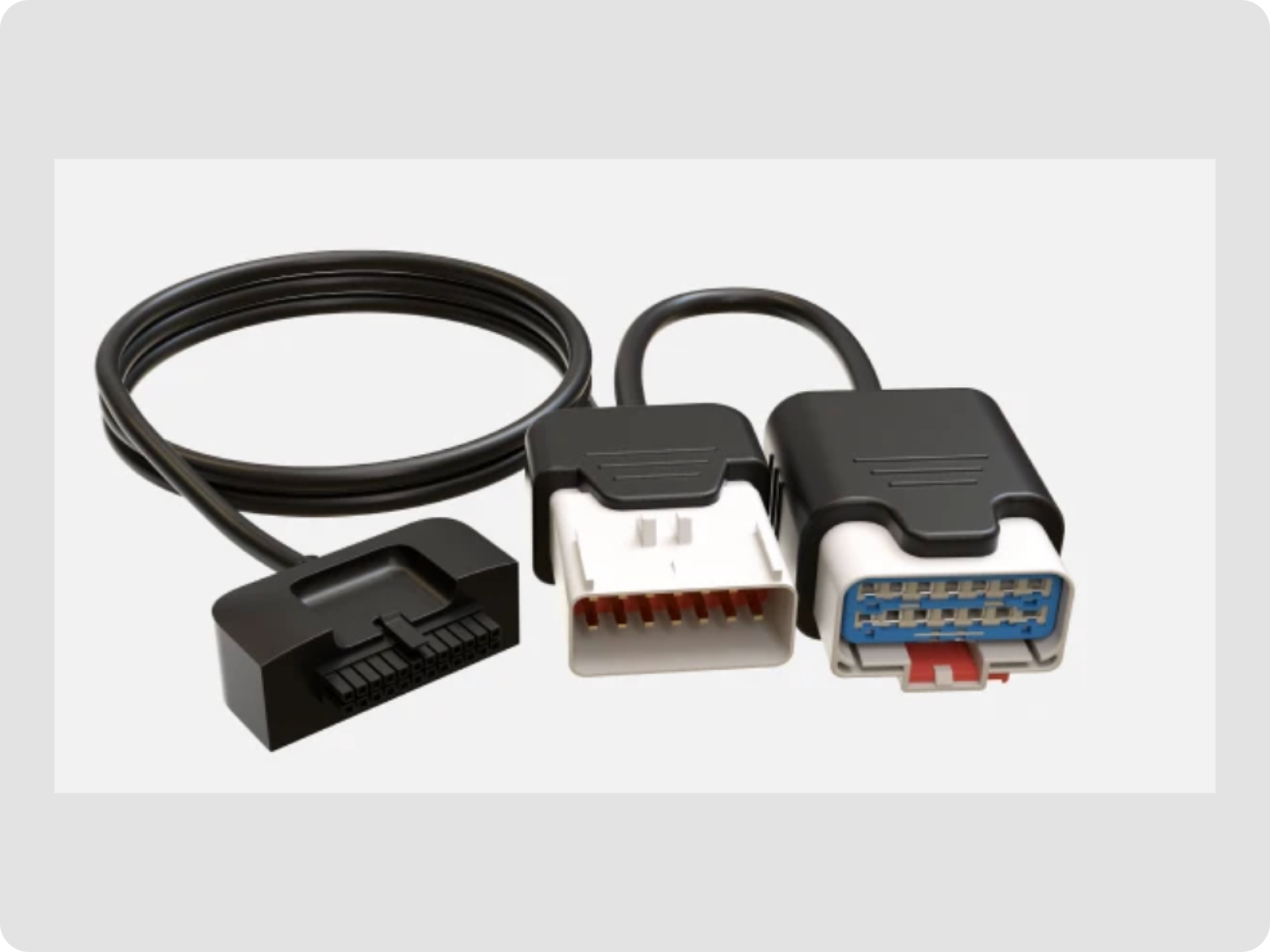

Cable VCBL-Y-1226: RP1226 Cable
Y-cable designed for vehicles with RP1226 telematics ports. Supports Direct Connection and Y-cable installations using the dedicated telematics connector to help preserve vehicle warranty.
Example: Freightliner Cascadia (2021), INTERNATIONAL MV607 (2023)
Cables for Light-Duty Vehicles (OBD-II)

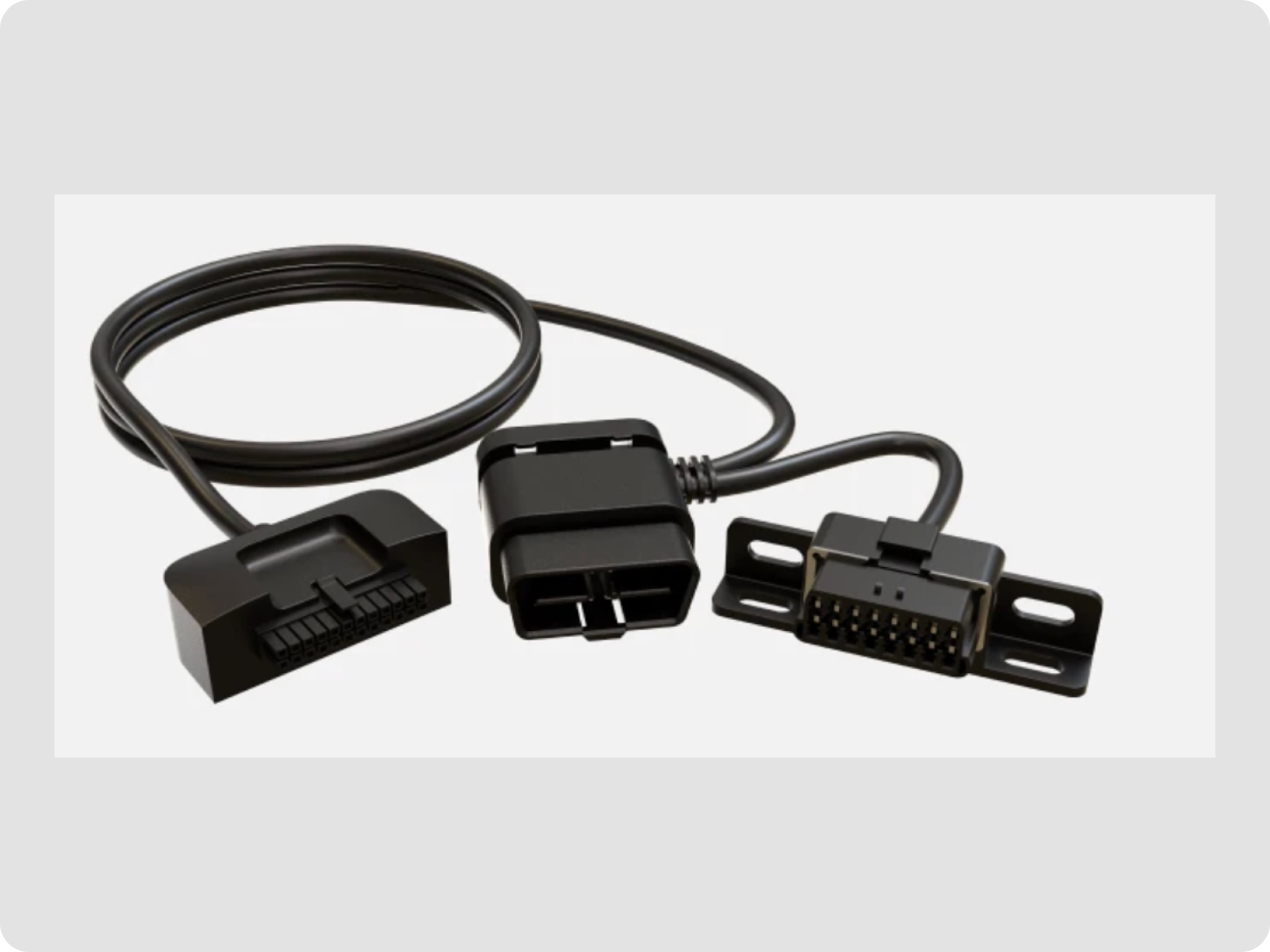

Cable VCBL-Y-OBD2: OBD-II Y-Cable
Y-cable for vehicles with OBD-II diagnostic ports. Supports Direct Connection and Y-cable installations with brand-specific mounting brackets.
| Note: Select the mounting bracket that matches your vehicle’s OBD-II diagnostic port. Ensure the spare diagnostic connector (P3) is securely attached to the compatible bracket for proper fit and stability. |

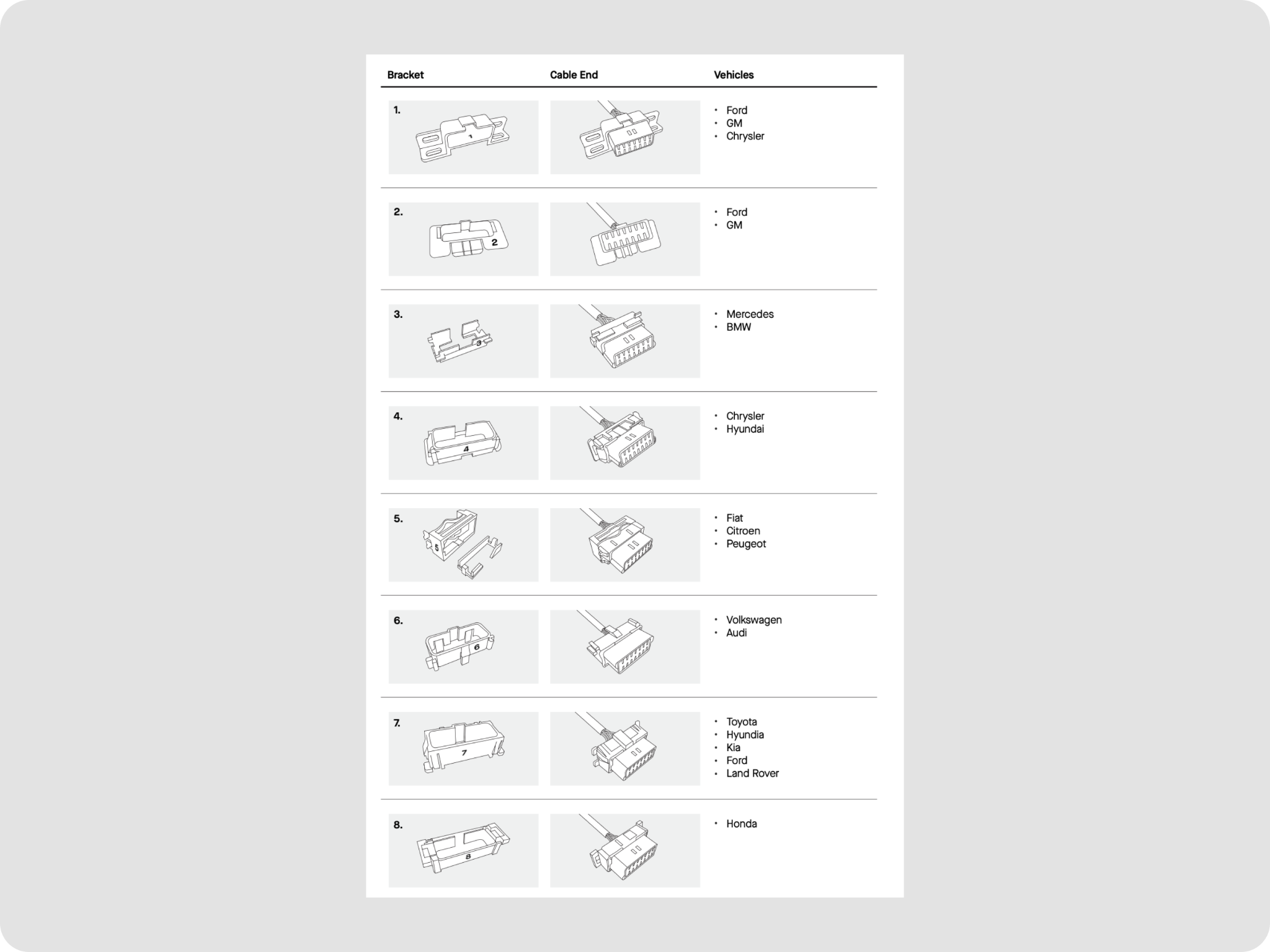

Mounting brackets provided in the box:
Example: Ford F-150 (2019), Volvo 9700 (2017)
Specialty Cables

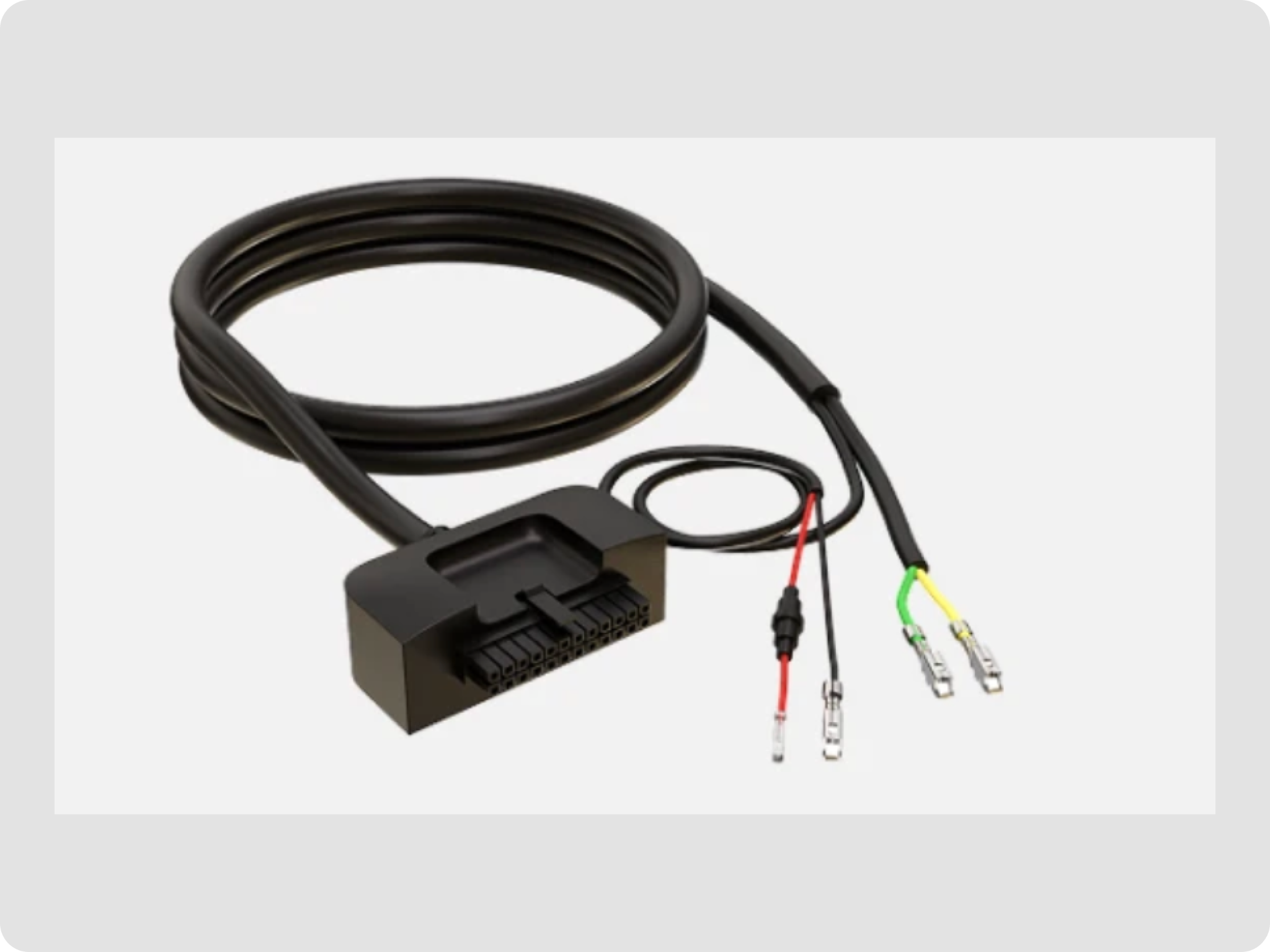

Cable VCBL-D-VOLMC: Volvo (2013-2018) and Volvo/Mack (2019+) Cable
Direct-connect cable for Volvo (2013–2018) and Volvo/Mack (2019+) vehicles. Connects to the J1939 bus and vehicle power using a terminating resistor.
Example: Volvo Truck VAH (2020), Mack Anthem (2019)
Cable VCBL-D-MACK: Mack (2013–2018) Cable
Direct-connect cable for Mack (2013–2018) vehicles. Uses ring terminals and a terminating resistor for J1939 and a power connection.
Example: Mack Pinnacle (2017), Mack CXU (2016)

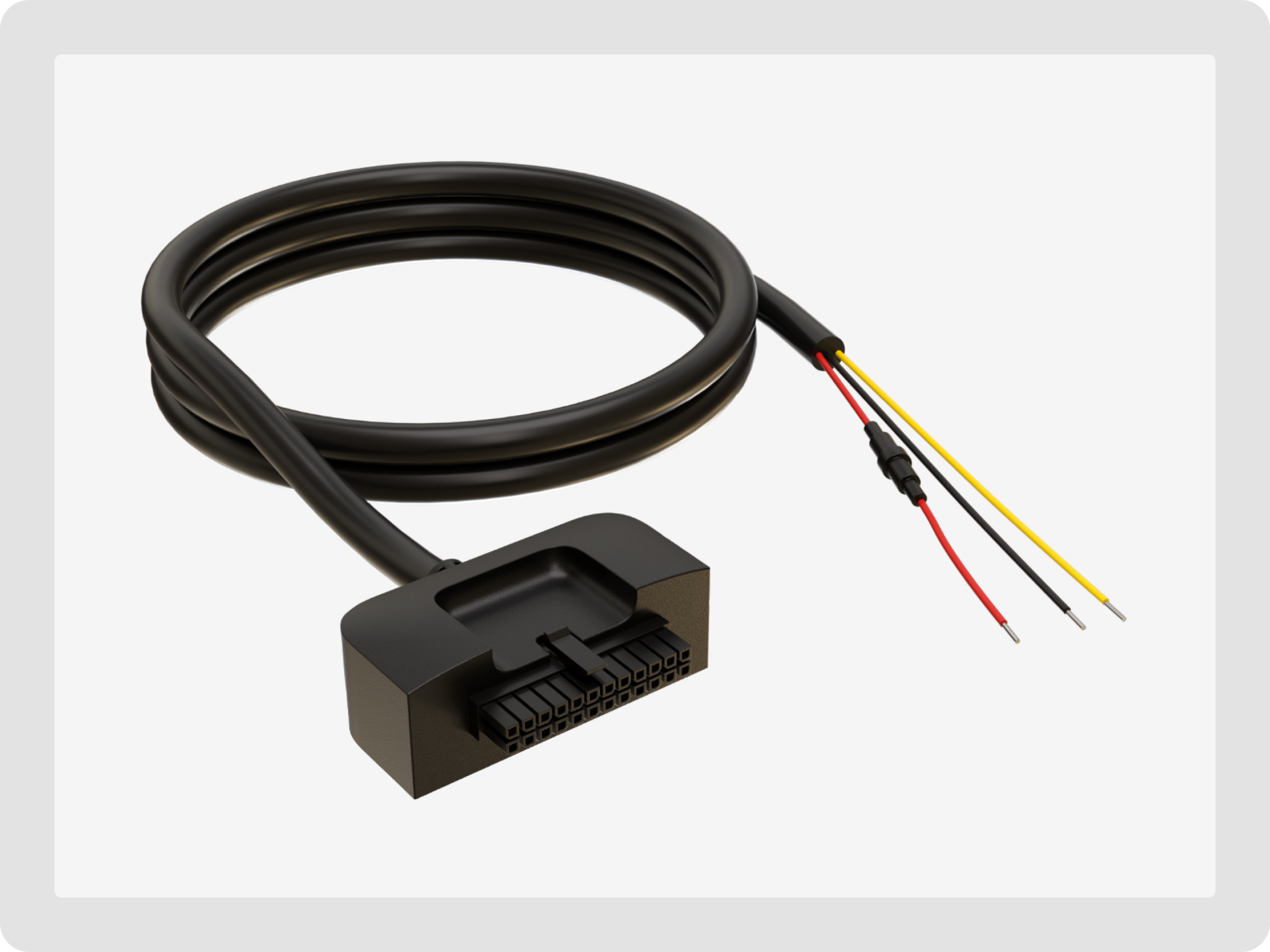

Cable VCBL-D-FRGHT: Freightliner (2017+) Cable
Direct-connect cable for Freightliner (2017+) trucks. Connects to the J1939 250K CAN network and vehicle power splice packs.
Example: Freightliner M2 (2019), Freightliner SD122 (2021)
| Note: Always use the recommended cable for compatibility and warranty protection. |
| WARNING: For vehicles that may operate in the State of California, regulations may prohibit the installation of any Y-cable configuration if it involves relocating the in-vehicle diagnostic port. If the vehicle may be operated in California, ensure the installation does not relocate the diagnostic port. Motive customers are solely responsible for their compliance with all applicable laws and regulations |
