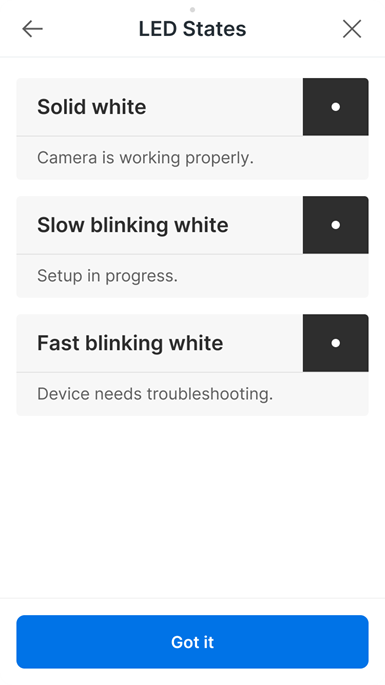

The AI Omnicam uses LED lights to indicate its current status. Below is a guide to understanding what each LED light signal means and how to respond if necessary.

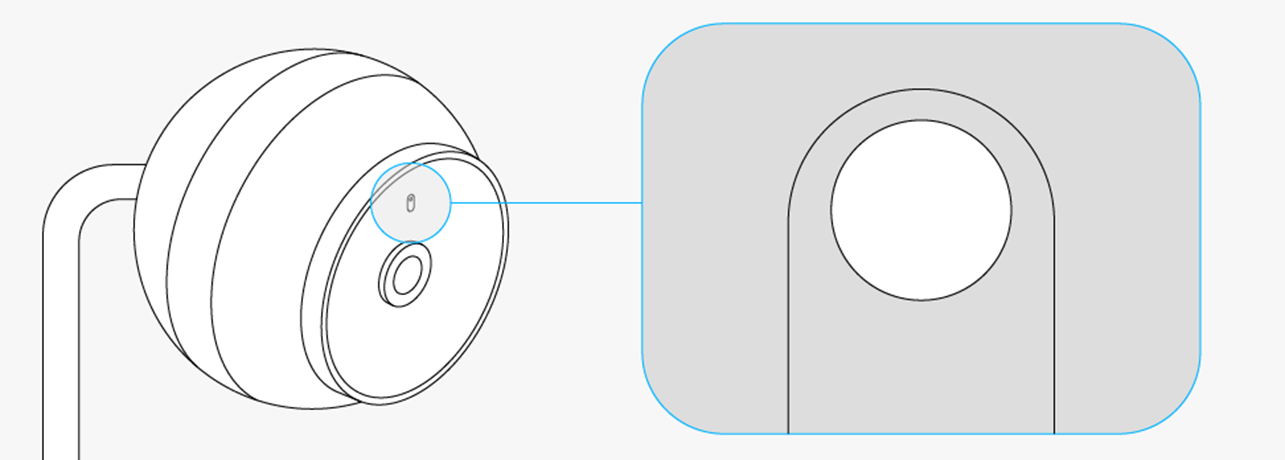

1. Solid White LED Light
The Solid White LED light means the AI Omnicam is powered on and actively recording.

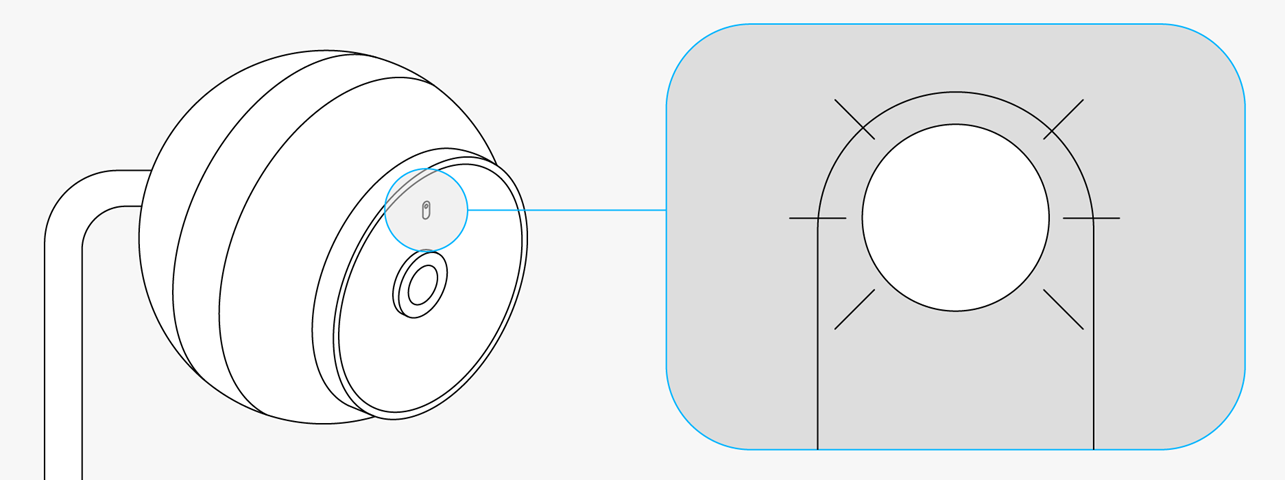

2. Slowly Flashing/Blinking LED Light
The Omnicam’s slowly flashing/blinking LED light means the camera is booting up or exiting low power mode and has not started recording yet.
3. Fast Flashing/Blinking LED Light
The AI Omnicam’s fast flashing/blinking LED light indicates the device is about to shut down, or it’s processing a firmware update or has stopped recording.
| Note: If Omnicam’s LED light flashes/blinks fast for up to 5 minutes, it means the camera is not recording and requires some attention for a pinhole reset. |

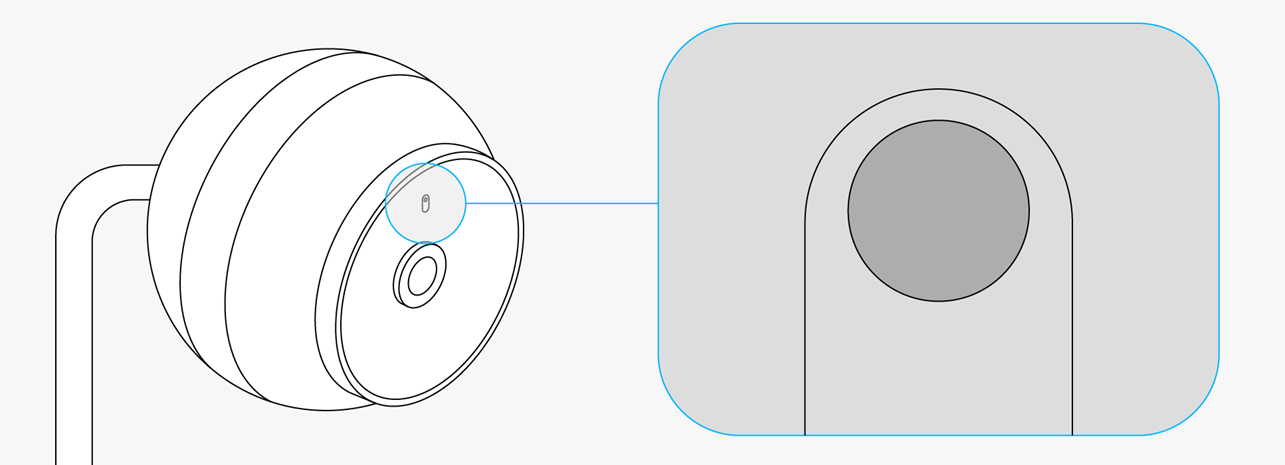

4. LED Light OFF
No LED light means the Omnicam is powered off due to no external power source attached to it or it’s in low power mode.
| Note: The AI Omnicam uses a single white status LED with different blink patterns. It does not use separate red/green/blue LEDs. If you see colored lights, you are likely looking at another device (such as the dashcam or Vehicle Gateway). |
